990799 - Simplicity Cultivator Attachment CULTIVATOR Parts Diagram

Cultivator Attachment

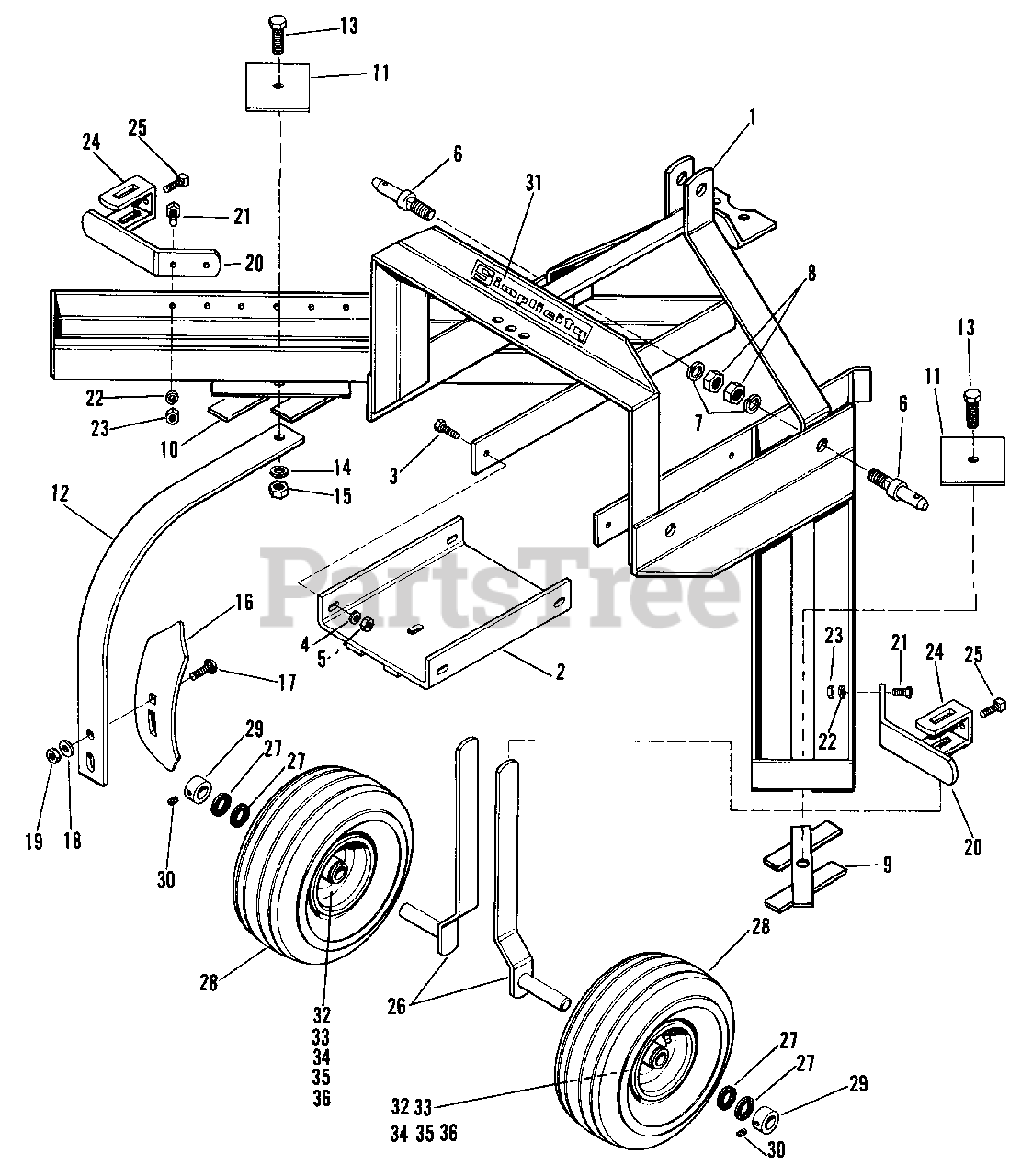

CULTIVATOR Parts Diagram

  • Title

1

Simplicity 173908

Cultivator Frame

$

$

Not available

2

Simplicity 174666

Support Plate Assembly

$

$

Not available

3

Simplicity 2715150

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

4

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

5

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

6

Simplicity 172500

Hitch Pins

$

$

Not available

7

Simplicity 2720005

Lock Washer, 5/8"

$

$

Not available

8

Simplicity 2717004

Hex Nut, Full, 5/8"-11

$

$

Not available

9

Simplicity 173896

R.H. Shank Holder Assy.

$

$

Not available

10

Simplicity 173897

L.H. Shank Holder Assy.

$

$

Not available

11

Simplicity 173895

Plate

$

$

Not available

12

Simplicity 174681

Shank

$

$

Not available

13

Simplicity 715144

Hex Capscrew, 1/2"-13 x 1-1/2"

$148.99

$

Usually ships in 2-12 days

0

14

Simplicity 2720004

Lock Washer, 1/2"

$

$

Not available

15

Simplicity 2717006

Hex Nut, Full, 1/2"-13

$

$

Not available

16

Simplicity 174663

Cultivator Teeth

$

$

Not available

17

Simplicity 704007

Plow Bolt, 7/16"-14 x 1-1/4"

$4.49

$

In Stock, Qty 6

0

18

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

19

Simplicity 2717022

Hex Nut, Full, 7/16"-14

$

$

Not available

20

Simplicity 174660

Shank

$

$

Not available

21

Simplicity 2715150

Hex Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

22

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

23

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

24

Simplicity 8271023

Shank Clamp

$

$

Not available

25

Simplicity 2713004

Set Screws, 3/8"-16 x 1"

$

$

Not available

26

Simplicity 174657

Standard & Spindle Assy.

$

$

Not available

27

Simplicity 174703

Felt Seal

$

$

Not available

28

Simplicity 163106

Wheel & Tire Assembly

$

$

Not available

29

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

30

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

31

Simplicity 2153166

Decal

$

$

Not available

32

Simplicity 2163108

Tire

Note: Part of 163106 Wheel & Tire Assembly

$

$

Not available

33

Simplicity 2163109

Tube

Note: Part of 163106 Wheel & Tire Assembly

$

$

Not available

34

Simplicity 2163110

Bearing

Note: Part of 163106 Wheel & Tire Assembly

$

$

Not available

35

Simplicity 2163111

Bearing Relief

Note: Part of 163106 Wheel & Tire Assembly

$

$

Not available

36

Simplicity 2163107

Wheel

Note: Part of 163106 Wheel & Tire Assembly

$

$

Not available
