990882 - Simplicity 32" Rotary Snow Thrower Attachment HITCH GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

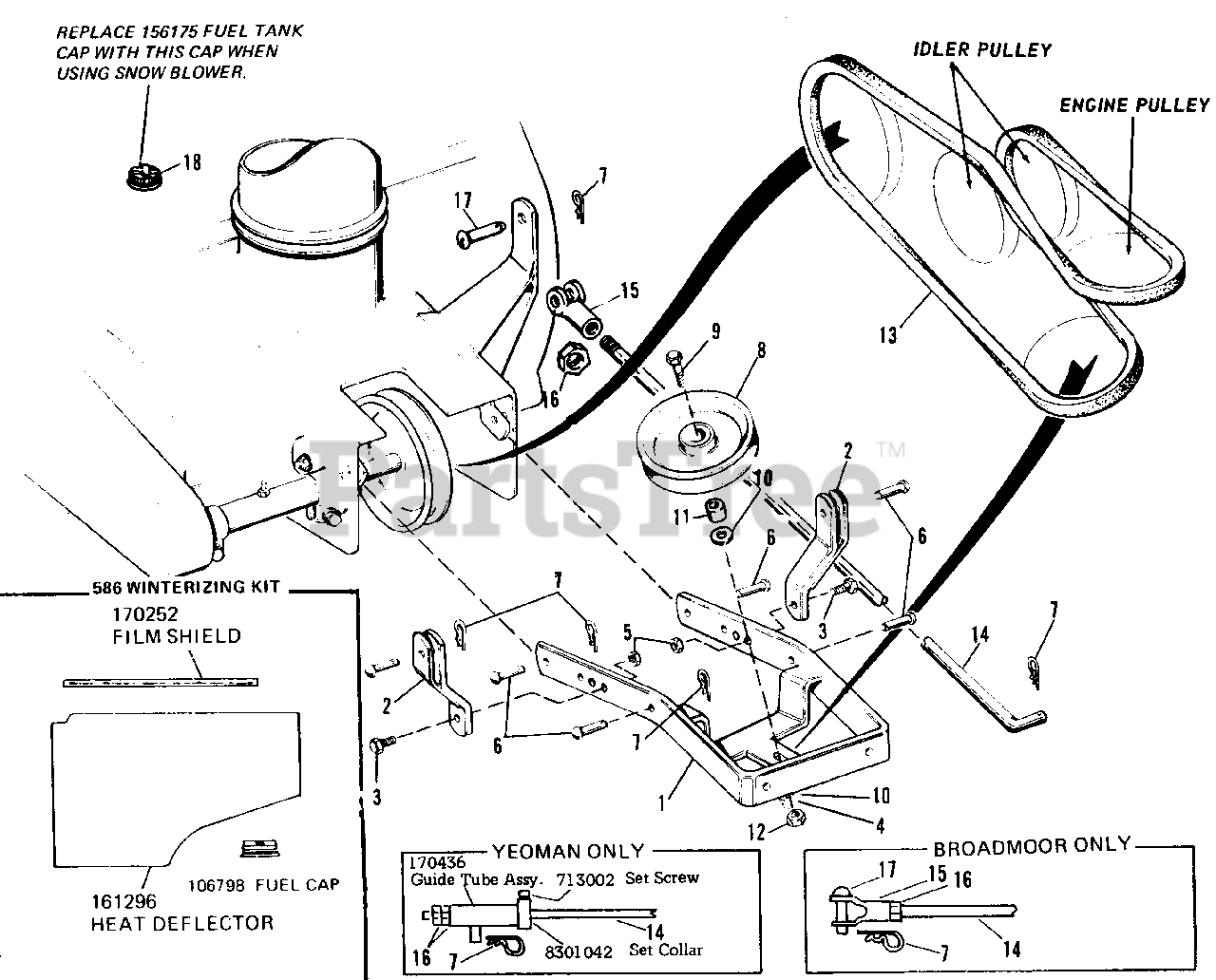

HITCH GROUP Parts Diagram

  • Title

1

Simplicity 106500

Push Arm Assembly

$

$

Not available

2

Simplicity 161267

Support Arm Assembly

$

$

Not available

3

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

4

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

5

Simplicity 2717510

Hex Nut, Full Lock 3/8"-16

$

$

Not available

6

Simplicity 2156306SM

Pin

$7.49

$

In Stock, Qty 20+

0

7

Simplicity 2106788

Spring Clip

$

$

Not available

8

Simplicity 2101096SM

Pulley

$59.99

$

In Stock, only 1 left!

0

9

Simplicity 2705010

Hex Capscrew 3/8"-16 x 1-3/4" lg.

$

$

Not available

10

Simplicity 2719001

Plain Washer 3/8"

$

$

Not available

11

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 4 left!

0

12

Simplicity 2717003

Hex Nut, Full 3/8"-16

$

$

Not available

13

Simplicity 2108209

"V" Belt

$

$

Not available

14

Simplicity 176202

Front Lift Rod

$

$

Not available

15

Simplicity 2157631

Adjusting Yoke

$

$

Not available

16

Simplicity 717008

Hex Nut, Full 1/2"-20

$

$

Not available

17

Simplicity 2154305

Yoke Pin

$

$

Not available

18

Simplicity 106798

Cap (Winter) Fuel Tank

$

$

Not available

19

Simplicity 161296

Deflector-Heat

$

$

Not available

20

Simplicity 170252

Film-Shield

$

$

Not available

20

Simplicity 161252

Emblem

$

$

Not available

20

Simplicity 2161247

Decal, Safety

$

$

Not available

20

Simplicity 176415

Serial Number Plate

$

$

Not available
