990882 - Simplicity 32" Rotary Snow Thrower Attachment ROTOR, BODY & DRIVE GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

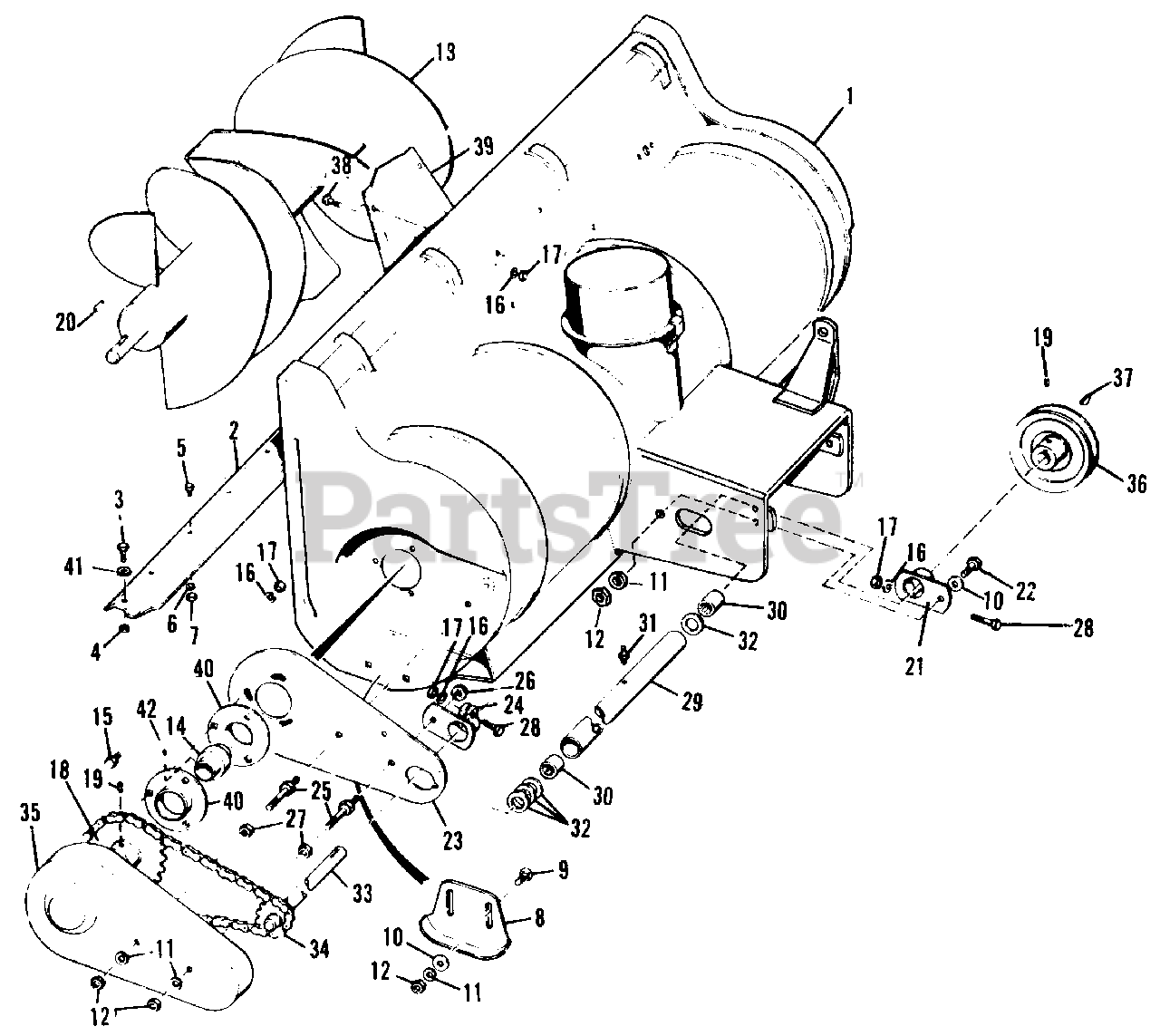

ROTOR, BODY & DRIVE GROUP Parts Diagram

  • Title

1

Simplicity 161198

Body Assembly

$

$

Not available

2

Simplicity 106853

Body Scraper

$

$

Not available

3

Simplicity 2715071

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

4

Simplicity 2717511

Full Lock Hex Nut 5/16"-18

$

$

Not available

5

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

6

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

7

Simplicity 2717005

Full Hex Nut 1/4"-20

$

$

Not available

8

Simplicity 2106747

Skid

$

$

Not available

9

Simplicity 2703004

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

10

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

11

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

12

Simplicity 2717003

Full Hex Nut, 3/8"-16

$

$

Not available

13

Simplicity 106847

Rotor Assembly

$

$

Not available

14

Simplicity 2106732

Bearing Cartridge w/713509 Set Screw

$

$

Not available

15

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4"

$

$

Not available

16

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

17

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

18

Simplicity 2106653SM

Rotor Sprocket

$98.99

$

Usually ships in 2-12 days

0

19

Simplicity 2713503

Set Screw, 5/16"-18 x 5/16"

$

$

Not available

20

Simplicity 2151040SM

Hi-Pro Key

$9.49

$

In Stock, only 2 left!

0

21

Simplicity 176161

Support Assembly Clamp

$

$

Not available

22

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1

$

$

Not available

23

Simplicity 170754

Side Plate

$

$

Not available

24

Simplicity 176161

Support Assy. Clamp

$

$

Not available

25

Simplicity 106771

Stud

$

$

Not available

26

Simplicity 2718035

Nut, Flange, 3/8"-16

$

$

Not available

27

Simplicity 2717510

Full Lock Hex Nut 3/8"-16

$

$

Not available

28

Simplicity 2705018

Hex Capscrew 5/16"-18 x 1-1/2"

$

$

Not available

29

Simplicity 106854

Bearing Housing

$

$

Not available

30

Simplicity 2154258SM

Needle Bearing

$26.99

$

In Stock, only 2 left!

0

31

Simplicity 2727013

Grease Fitting

$

$

Not available

32

Simplicity 1729259SM

Washer

$5.99

$

In Stock, Qty 11

0

33

Simplicity 106851

Shaft Assembly

$

$

Not available

34

Simplicity 106058

Chain

$

$

Not available

35

Simplicity 170865

Chain Guard

$

$

Not available

36

Simplicity 106485

Pulley

$

$

Not available

37

Simplicity 2725003

Key 3/16" dia. x 3/4"

$

$

Not available

38

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8"

$

$

Not available

39

Simplicity 2106774ASM

Deflector

$29.99

$

Usually ships in 2-12 days

0

40

Simplicity 2161069

Bearing Flange

$

$

Not available

41

Simplicity 2719006

Washer

$

$

Not available

42

Simplicity 2713503

Set Screw 5/16"-18 x 5/16"

$

$

Not available
