990882 - Simplicity 32" Rotary Snow Thrower Attachment SPOUT GROUP Parts Diagram

32" Rotary Snow Thrower Attachment

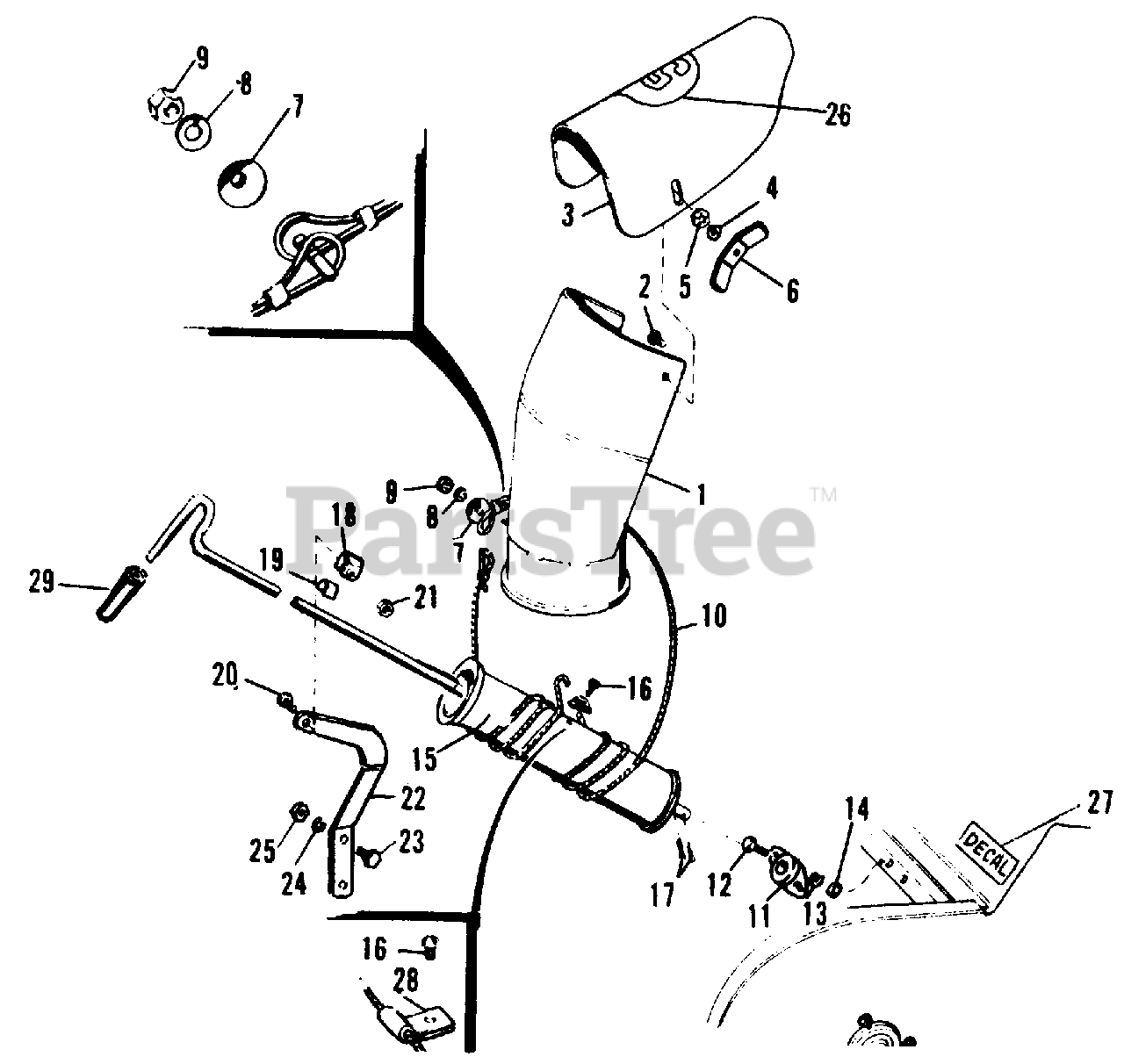

SPOUT GROUP Parts Diagram

  • Title

1

Simplicity 106762

Spout Assembly

$

$

Not available

2

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4"

$

$

Not available

3

Simplicity 106760

Spout Extension

$

$

Not available

4

Simplicity 2719001

Washer, Plain 3/8"

$

$

Not available

5

Simplicity 2721601

Washer, Lock 3/8"

$

$

Not available

6

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

7

Simplicity 2171379SM

Cup Washer

$

$

Not available

8

Simplicity 2720001

Washer, Lock 5/16"

$

$

Not available

9

Simplicity 2717001

Nut, Hex Full 5/16"-18

$

$

Not available

10

Simplicity 2171362SM

Cable Assembly

$31.99

$

In Stock, only 1 left!

0

11

Simplicity 2106491SM

Bearing

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 2705015

Capscrew, Hex 1/4"-20 x 5/8"

$

$

Not available

13

Simplicity 2720003

Washer, Lock, 1/4"

$

$

Not available

14

Simplicity 2717005

Full Hex Nut, 1/4"-20

$

$

Not available

15

Simplicity 176331

Rod Assy., Spout Control

$

$

Not available

16

Simplicity 2715067

Self-tapping Screw, 1/4"-20 x 3/8"

$

$

Not available

17

Simplicity 2722016

Cotter Pin, 3/32" x 5/8"

$

$

Not available

18

Simplicity 2152050SM

Guide, Rod

$10.99

$

Usually ships in 2-12 days

0

19

Simplicity 2121175SM

Liner, Guide

$8.49

$

Usually ships in 2-12 days

0

20

Simplicity 2705018

Capscrew, Hex, 5/16"-18 x 1-1/2"

$

$

Not available

21

Simplicity 2717511

Nut, Hex, Full, Lock, 5/16"-18

$

$

Not available

22

Simplicity 106499

Rod Guide Support

$

$

Not available

23

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

24

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

25

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

26

Simplicity 161252

Decal

$

$

Not available

27

Simplicity 2161247

Decal

$

$

Not available

28

Simplicity 154247

Clamp (For Service Only)

$

$

Not available

29

Simplicity 2176933SM

Handle Grip

$3.49

$

In Stock, only 1 left!

0

30

Simplicity 722015

Pin, Cotter

$

$

Not available

31

Simplicity 2171382SM

Clamp

$3.49

$

Usually ships in 2-12 days

0
