990885 - Simplicity 42" Mower Deck BAIL ASSEMBLY Parts Diagram

42" Mower Deck

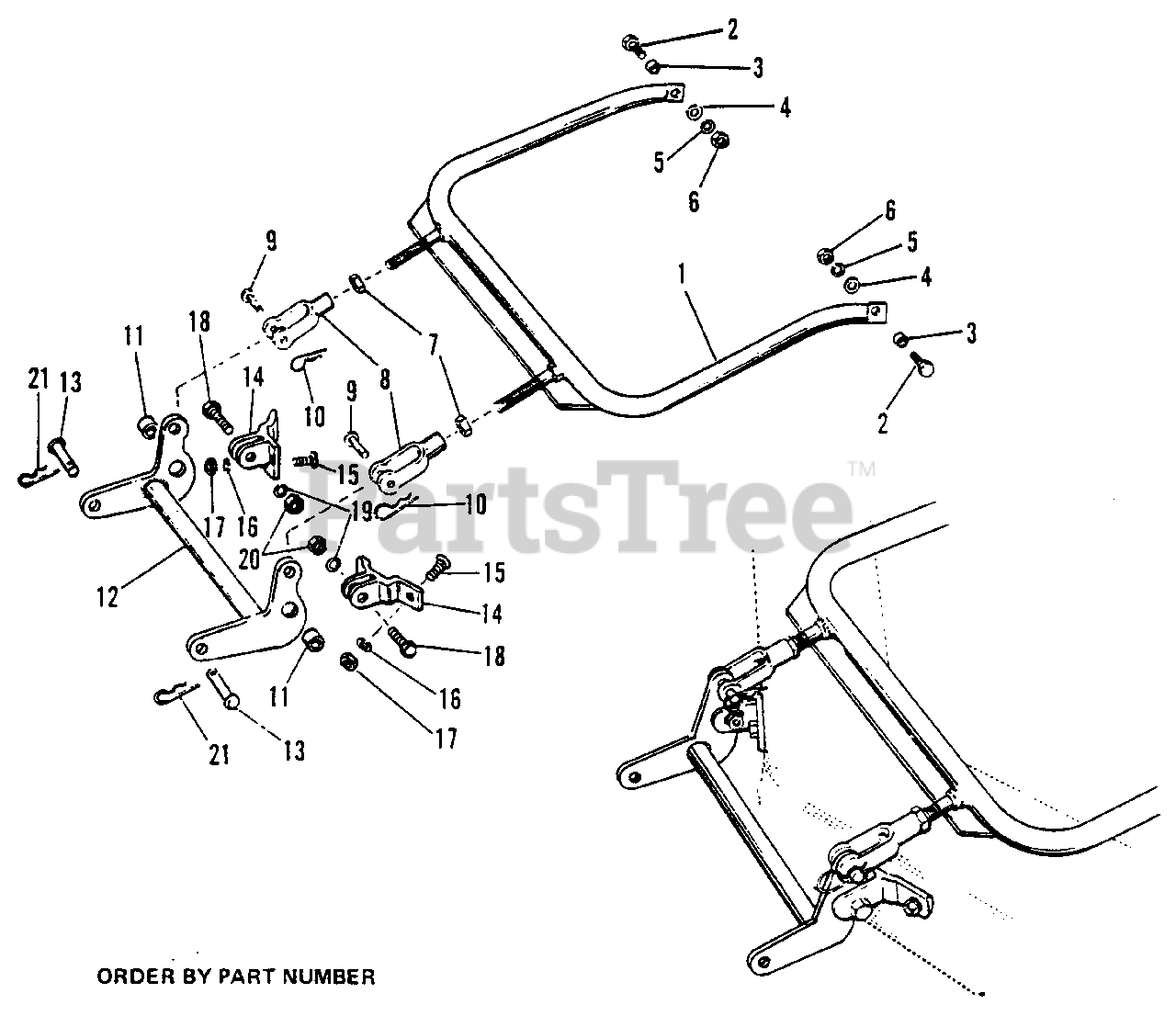

BAIL ASSEMBLY Parts Diagram

  • Title

1

Simplicity 171933

Bail Assembly

$

$

Not available

2

Simplicity 2705049

Hex Capscrew, 1/2"-13 x 1-1/4"

$

$

Not available

3

Simplicity 2105051

Spacer

$

$

Not available

4

Simplicity 2719003

Plain Washer, 7/16"

$

$

Not available

5

Simplicity 2720004

Lockwasher, 1/2"

$

$

Not available

6

Simplicity 2717006

Full Hex Nut, 1/2"-13 NC

$

$

Not available

7

Simplicity 2717016

Hex Jam Nut, 1/2"-20 NF

$

$

Not available

8

Simplicity 2154304SM

Yoke End, Adjusting

$67.99

$

Usually ships in 2-12 days

0

9

Simplicity 2154305

Yoke Pin

$

$

Not available

10

Simplicity 1918196SM

Spring Clip
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 5

0

11

Simplicity 2105051

Spacer

$

$

Not available

12

Simplicity 2172468A

Rocker Arm Assembly
(Superseded to 2172468ASM)

$95.99

$

Usually ships in 2-12 days

0

13

Simplicity 2118053SM

Pin
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

14

Simplicity 2108219SM

Bracket Assembly, Front
(Superseded to 2108219ASM)

$62.99

$

Usually ships in 2-12 days

0

15

Simplicity 2702002

Carriage Bolt, 3/8"-16 NC x 1"

$

$

Not available

16

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

17

Simplicity 2717003

Full Hex Nut, 3/8"-16 NC

$

$

Not available

18

Simplicity 2705049

Hex Capscrew, 1/2"-13 x 1-1/4"

$

$

Not available

19

Simplicity 2720004

Lockwasher, 1/2"

$

$

Not available

20

Simplicity 2717006

Full Hex Nut, 1/2"-13 NC

$

$

Not available

21

Simplicity 2176012SM

Safety Clip, Pin
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0
