990885 - Simplicity 42" Mower Deck ROLLER ASSEMBLY Parts Diagram

42" Mower Deck

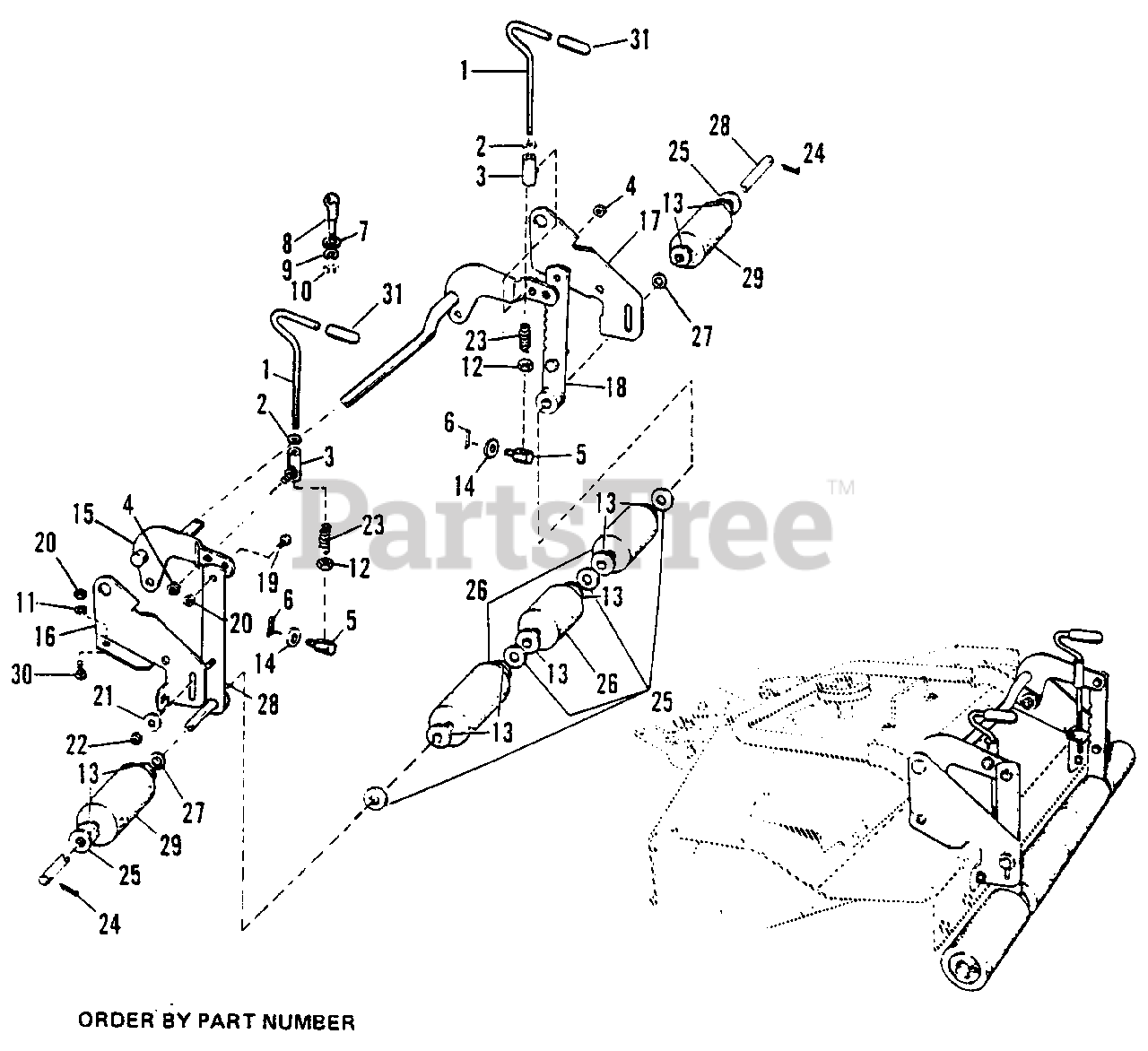

ROLLER ASSEMBLY Parts Diagram

  • Title

1

Simplicity 2177814

Screw Assembly, Adjusting

$

$

Not available

2

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

3

Simplicity 2108241SM

Socket Assembly, Crank
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

4

Simplicity 2717510

Full Lock Hex Nut, 3/8"-16

$

$

Not available

5

Simplicity 2108512SM

Pivot

$36.99

$

In Stock, only 2 left!

0

6

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

7

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

8

Simplicity 2171815SM

Eye Bolt

$54.99

$

Usually ships in 2-12 days

0

9

Simplicity 2720002

Lockwasher, 3/8" Std.

$

$

Not available

10

Simplicity 2717003

Full Hex Nut, 3/8"-16 NC

$

$

Not available

11

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

12

Simplicity 2717013

Full Hex Nut, 3/8"-16 NC

$

$

Not available

13

Simplicity 2108419

Bushings

$

$

Not available

14

Simplicity 2719002

Plain Washer, 3/8" Std.

$

$

Not available

15

Simplicity 2172015ASM

Arm Assembly, Rocker

$116.99

$

Usually ships in 2-12 days

0

16

Simplicity 2172045ASM

Bracket, Roller, Right Hand

$34.99

$

Usually ships in 2-12 days

0

17

Simplicity 2172044SM

Bracket, Roller, Left Hand
(Superseded to 2172044ASM)

$30.99

$

Usually ships in 2-12 days

0

18

Simplicity 2172412

Bar Assembly, Roller

$

$

Not available

19

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1"

$

$

Not available

20

Simplicity 2717003

Full Hex Nut, 3/8"-16 NC

$

$

Not available

21

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

22

Simplicity 2717510

Full Lock Hex Nut, 3/8"-16

$

$

Not available

23

Simplicity 2108360SM

Spring, Adj. Screw

$5.49

$

Usually ships in 2-12 days

0

24

Simplicity 2722011

Cotter Pin, 3/16" x 1"

$

$

Not available

25

Simplicity 2116001

Washer

$

$

Not available

26

Simplicity 2108432SM

Roller w/Bushing

$36.99

$

In Stock, only 4 left!

0

27

Simplicity 2860164SM

Washer

$4.49

$

In Stock, only 3 left!

0

28

Simplicity 2171958

Shaft and Support Arm

$

$

Not available

29

Simplicity 1668513SM

Roller w/Bushing

$10.99

$

In Stock, Qty 20+

0

30

Simplicity 2702003

Carriage Bolt, 3/8"-16 x 3/4"

$

$

Not available

31

Simplicity 176985

Grip

$

$

Not available
