990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp HANDLES and CONTROLS Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

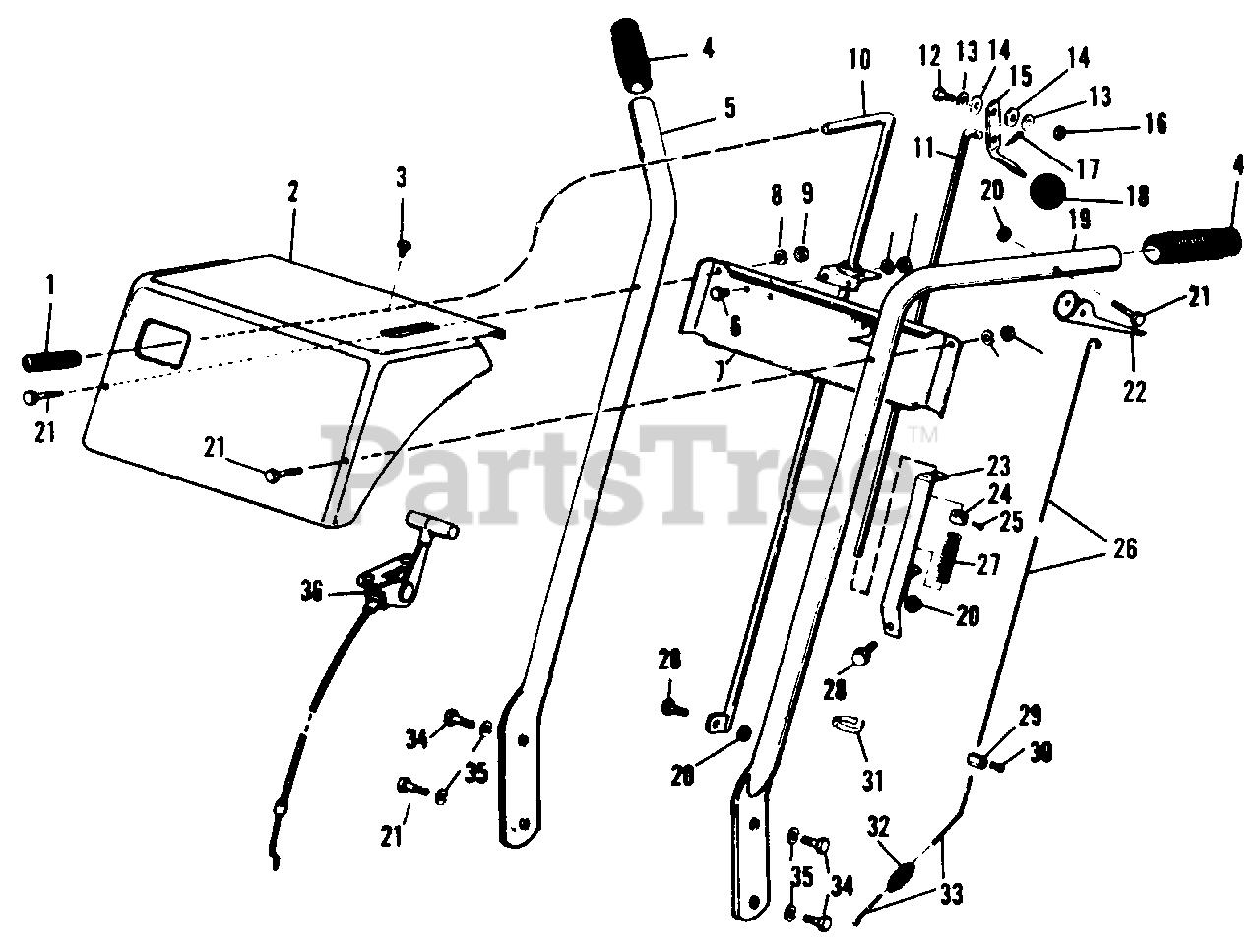

HANDLES and CONTROLS Parts Diagram

  • Title

1

Simplicity 1611-05

GRIP-handle
(Superseded to 2176934SM)

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1611-73

HOUSING ASSY., Control (990560 Only)

$

$

Not available

3

Simplicity 2714016

SCREW-hex, self-tapping, 1/4-20 x 1/2

$

$

Not available

4

Simplicity 2106558

GRIP, Handle Bar

$

$

Not available

5

Simplicity 176568

HANDLE-rear, R.H.

$

$

Not available

6

Simplicity 2705002

Hex. Cap Screw, 1/4"-20 x 1/2" (Not used on 308 & 314)

$

$

Not available

7

Simplicity 176105

COVER-handle

$

$

Not available

8

Simplicity 2720003

Lock Washer, 1/4" (Not used on 308 & 314)

$

$

Not available

9

Simplicity 2717005

Hex Nut, 1/4"-20 (Mfg. Nos. 953 & 954)

$

$

Not available

10

Simplicity 176025

SHIFT ROD ASSEMBLY

$

$

Not available

11

Simplicity 1610-52

ROD, Clutch

$

$

Not available

12

Simplicity 2705001

Screw, Cap, Hex., 5/16"-18 N.C. x 7/8" lg.

$

$

Not available

13

Simplicity 2719006

Flat Washer, 1/4" (for service only)

$

$

Not available

14

Simplicity 1591-34

WASHER-special
(Superseded to 2860175SM)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1610-85

HANDLE-auger clutch

$

$

Not available

16

Simplicity 2717525

Elastic Stop Nut, 5/16"-18 N.C.

$

$

Not available

17

Simplicity 2722001

Pin, Cotter, 3/32" dia. x 3/4" lg., w/Ext. Prong

$

$

Not available

18

Simplicity 122005

Knob
(Superseded to 2122005SM)

$14.99

$

In Stock, only 1 left!

0

19

Simplicity 176569

HANDLE-rear, L.H.

$

$

Not available

20

Simplicity 2717513

Nut, Lock, Full, Hex., 1/4"-20 N.C.

$

$

Not available

21

Simplicity 2705025

CAPSCREW, Hex, Head, 1/4"-20 NC x 1-1/2" Lg.

$

$

Not available

22

Simplicity 1180-56

GRIP, Clutch

$

$

Not available

23

Simplicity 1610-41

GUIDE ASSY., Rod

$

$

Not available

24

Simplicity 1729276SM

COLLAR, Set (Stand Rod)

$

$

Not available

25

Simplicity 2713001

Screw, Set, Square Head, Cup Point, 1/4"-20 NC x 3/8" lg.

$

$

Not available

26

Simplicity 1610-90

EXTENSION, Spring

$

$

Not available

27

Simplicity 8191045

SPRING, Compression
(Superseded to 1729277SM)

$6.99

$

Usually ships in 2-12 days

0

28

Simplicity 2715051

Hex Capscrew, 1/4"-20 x 1 " lg.

$

$

Not available

29

Simplicity 1610-92

CLAMP, Wire

$

$

Not available

30

Simplicity 710006

SCREW-rd. hd., 10-24 x 3/8

$

$

Not available

31

Simplicity 80611-08

CLIP, Throttle

$

$

Not available

32

Simplicity 1610-93

SPRING

$

$

Not available

33

Simplicity 1610-91

EXTENSION, Wire

$

$

Not available

34

Simplicity 2715073

Capscrew, Hex, 5/16"-18 NC x 3/4" lg.

$

$

Not available

35

Simplicity 2720001

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

$

$

Not available

36

Simplicity 1611-78

THROTTLE CONTROL ASSEMBLY
(Superseded to 1664589SM)

$56.99

$

Usually ships in 2-12 days

0
