990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp SPOUT and CONTROLS Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

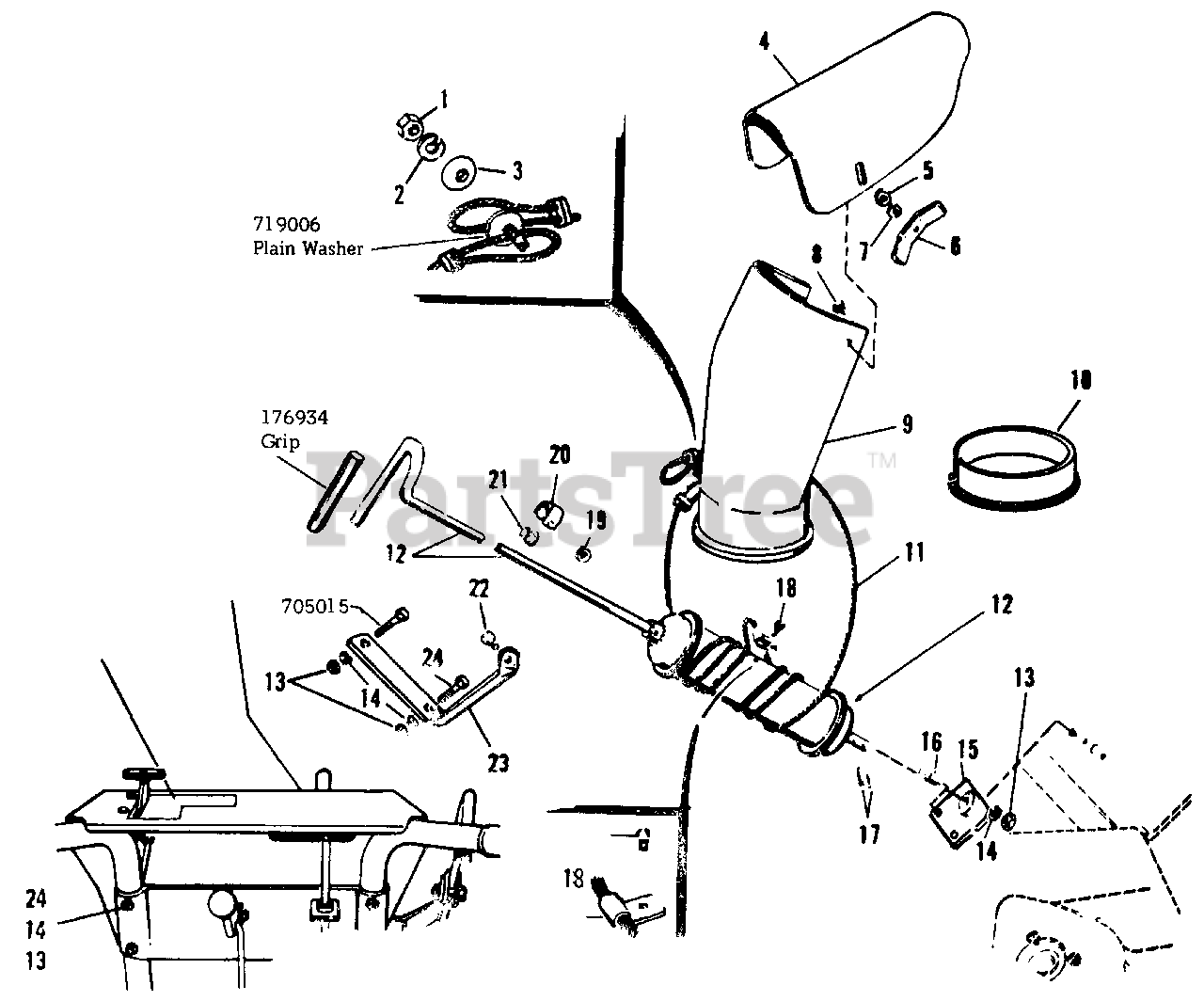

SPOUT and CONTROLS Parts Diagram

  • Title

1

Simplicity 2717001

Hex Nut, Full, 5/16"-18" NC (For "725" Only-Rear)

$

$

Not available

2

Simplicity 2720001

Lockwasher, External 1/4" (Mfg. Nos. 953 & 954)

$

$

Not available

3

Simplicity 2171379SM

WASHER, Cup

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 1064-89

EXTENSION, Spout

$

$

Not available

5

Simplicity 2721601

Lock Washer, Special, Hexagon, 3/8"

$

$

Not available

6

Simplicity 2106229

NUT, Wing, 5/16-18

$

$

Not available

7

Simplicity 2719002

Plain Washer, 5/16" (Mfg. No. 920)

$

$

Not available

8

Simplicity 2703005

Bolt, Carriage, 5/16"-18 NC x 3/4" lg., Short Square Neck

$

$

Not available

9

Simplicity 161099

SPOUT-assembly

$

$

Not available

10

Simplicity 1612-81

LINER (990430 & 990560 Only)

$

$

Not available

11

Simplicity 2171362SM

Cable Assembly

$29.99

$

In Stock, only 1 left!

0

12

Simplicity 176073

TUBE ASSY., Spout Control

$

$

Not available

13

Simplicity 2717005

Hex Nut, 1/4"-20 (Mfg. Nos. 953 & 954)

$

$

Not available

14

Simplicity 2720003

Lock Washer, 1/4" (Not used on 308 & 314)

$

$

Not available

15

Simplicity 1065-51

Bearing

$

$

Not available

16

Simplicity 2705015

Screw, Cap, Hex., 1/4"-20 N.C. x 5/8" lg.

$

$

Not available

17

Simplicity 2722009

Pin, Cotter, 1/8" x 3/4" lg.

$

$

Not available

18

Simplicity 2715067

Hex Screw, Washer Hd., 1/4"-20 x 3/8" lg. Taptite

$

$

Not available

19

Simplicity 2717511

Nut, Lock, Hex Hd., Full, 5/16"-18 N.C.

$

$

Not available

20

Simplicity 1520-50

GUIDE-rod
(Superseded to 2152050SM)

$9.49

$

Usually ships in 2-12 days

0

21

Simplicity 1211-75

LINER-guide
(Superseded to 2121175SM)

$7.99

$

Usually ships in 2-12 days

0

22

Simplicity 2705019

Hex. Hd. Capscrew, 5/16"-18 N.C. x 1-1/4" lg.

$

$

Not available

23

Simplicity 176026

SUPPORT-adjusting rod spout

$

$

Not available

24

Simplicity 2705053

Rd. Hd. Cap Screw, 1/4"-20 x 1 3/4" lg.

$

$

Not available
