990906 - Simplicity Sno-Away 28" Snow Thrower, 8hp WHEELS Parts Diagram

Sno-Away 28" Snow Thrower, 8hp

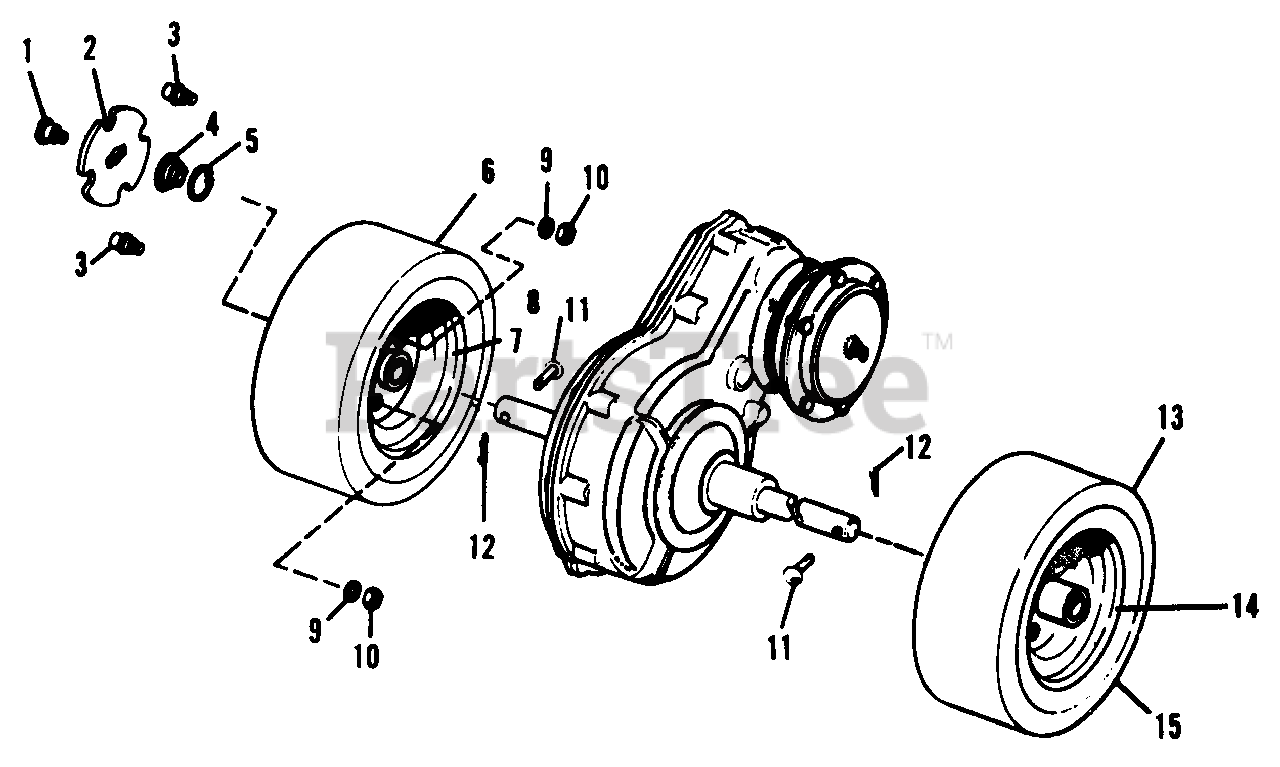

WHEELS Parts Diagram

  • Title

1

Simplicity 1611-66

BOLT-shoulder

$

$

Not available

2

Simplicity 1612-59

PLATE

$

$

Not available

3

Simplicity 1612-04

STUD

$

$

Not available

4

Simplicity 1611-76

SPRING
(Superseded to 2161176SM)

$3.99

$

In Stock, only 1 left!

0

5

Simplicity 1612-07

RING-retaining

$

$

Not available

6

Simplicity 1612-26

WHEEL & TIRE ASSEMBLY-L.H.

$

$

Not available

7

Simplicity 1612-25

WHEEL-L.H.

Note: Includes Wheel & Tire Assembly-L.H.

$

$

Not available

8

Simplicity 1562-13

TIRE-5.30/44.50 x 6

Note: Includes Wheel & Tire Assembly-L.H.

$

$

Not available

9

Simplicity 2719002

WASHER-flat

Note: Includes Wheel & Tire Assembly-L.H.

$

$

Not available

10

Simplicity 2717510

NUT-full hex lock, 3/8-16

Note: Includes Wheel & Tire Assembly-L.H.

$

$

Not available

11

Simplicity 1180-53

PIN
(Superseded to 704241)

Note: Includes Wheel & Tire Assembly-L.H.

$9.99

$

Usually ships in 2-12 days

0

12

Simplicity 2722009

PIN-cotter, ext. prong

Note: Includes Wheel & Tire Assembly-L.H.

$

$

Not available

13

Simplicity 1612-35

WHEEL & TIRE ASSEMBLY-R.H.

$

$

Not available

14

Simplicity 1612-34

WHEEL-R.H.

Note: Includes Wheel & Tire Assembly-R.H.

$

$

Not available

15

Simplicity 1562-13

TIRE-5.30/4.50 x 6

Note: Includes Wheel & Tire Assembly-R.H.

$

$

Not available

15

Simplicity 118278

KEY

$

$

Not available
