990929 - Simplicity Rear Lift Kit REAR LIFT KIT Parts Diagram

Rear Lift Kit

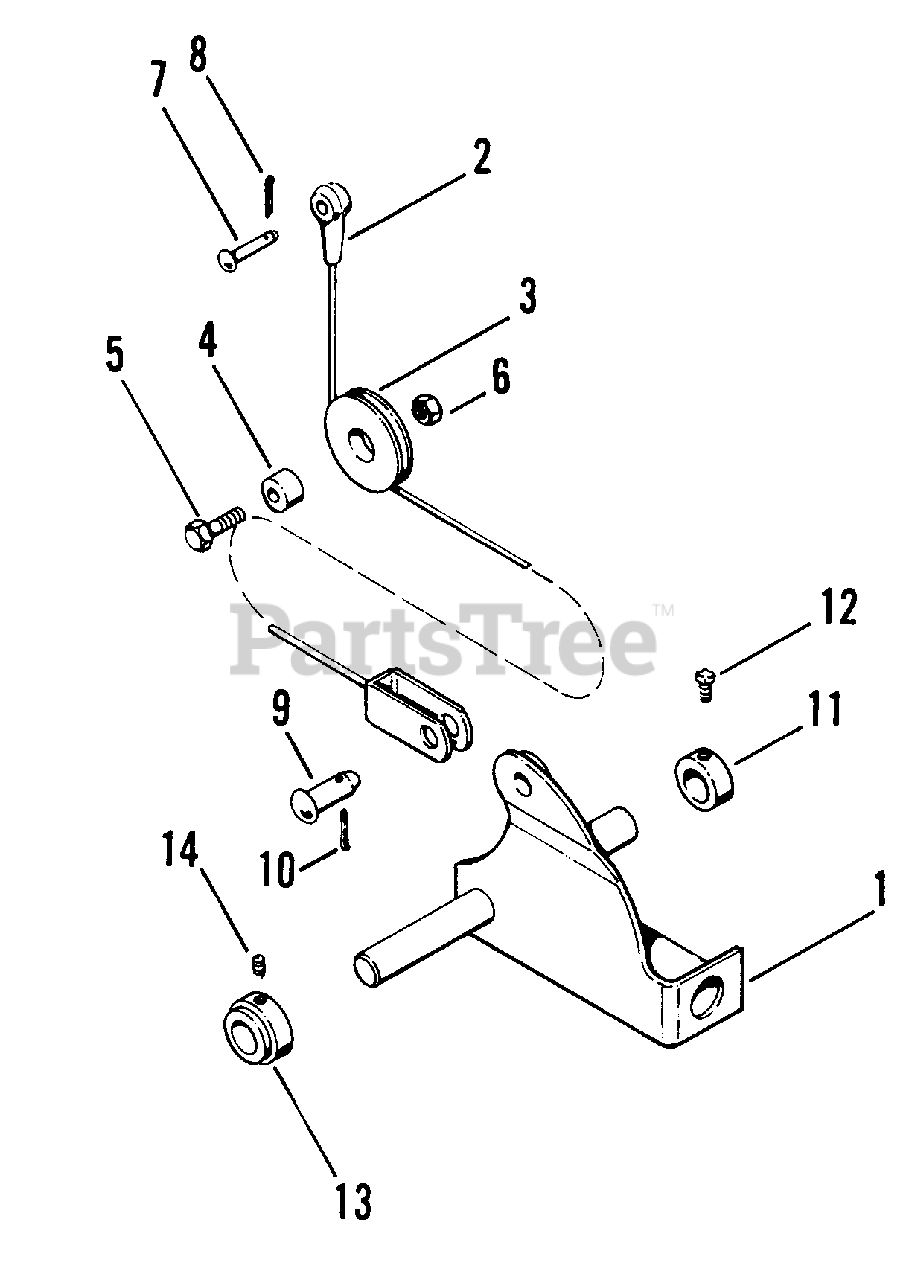

REAR LIFT KIT Parts Diagram

  • Title

1

Simplicity 2157671

Lift Lever Assembly

$

$

Not available

2

Simplicity 2174086

Lift Cable Assembly

$

$

Not available

3

Simplicity 2172725SM

Pulley

$48.99

$

Usually ships in 2-12 days

0

4

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, Qty 13

0

5

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

6

Simplicity 2717013

Hex Jam Nut, 3/8"-16

$

$

Not available

7

Simplicity 1729019SM

Pin
(Superseded to 703982)

$6.99

$

Usually ships in 2-12 days

0

8

Simplicity 2722005

Cotter Pin, 3/32" x 7/8" lg

$

$

Not available

9

Simplicity 2102004SM

Pin

$9.49

$

In Stock, only 3 left!

0

10

Simplicity 2722006

Cotter Pin, 1/8" x 1' lg.

$

$

Not available

11

Simplicity 1729254SM

Set Collar
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

12

Simplicity 2713002

Set Screw, 5/16"-18 x 3/8" lg.

$

$

Not available

13

Simplicity 2157695SM

Set Collar

$87.99

$

Usually ships in 2-12 days

0

14

Simplicity 2713010

Set Screw

$

$

Not available
