990930 - Simplicity 30" Tiller Attachment TRANSMISSION Parts Diagram

30" Tiller Attachment

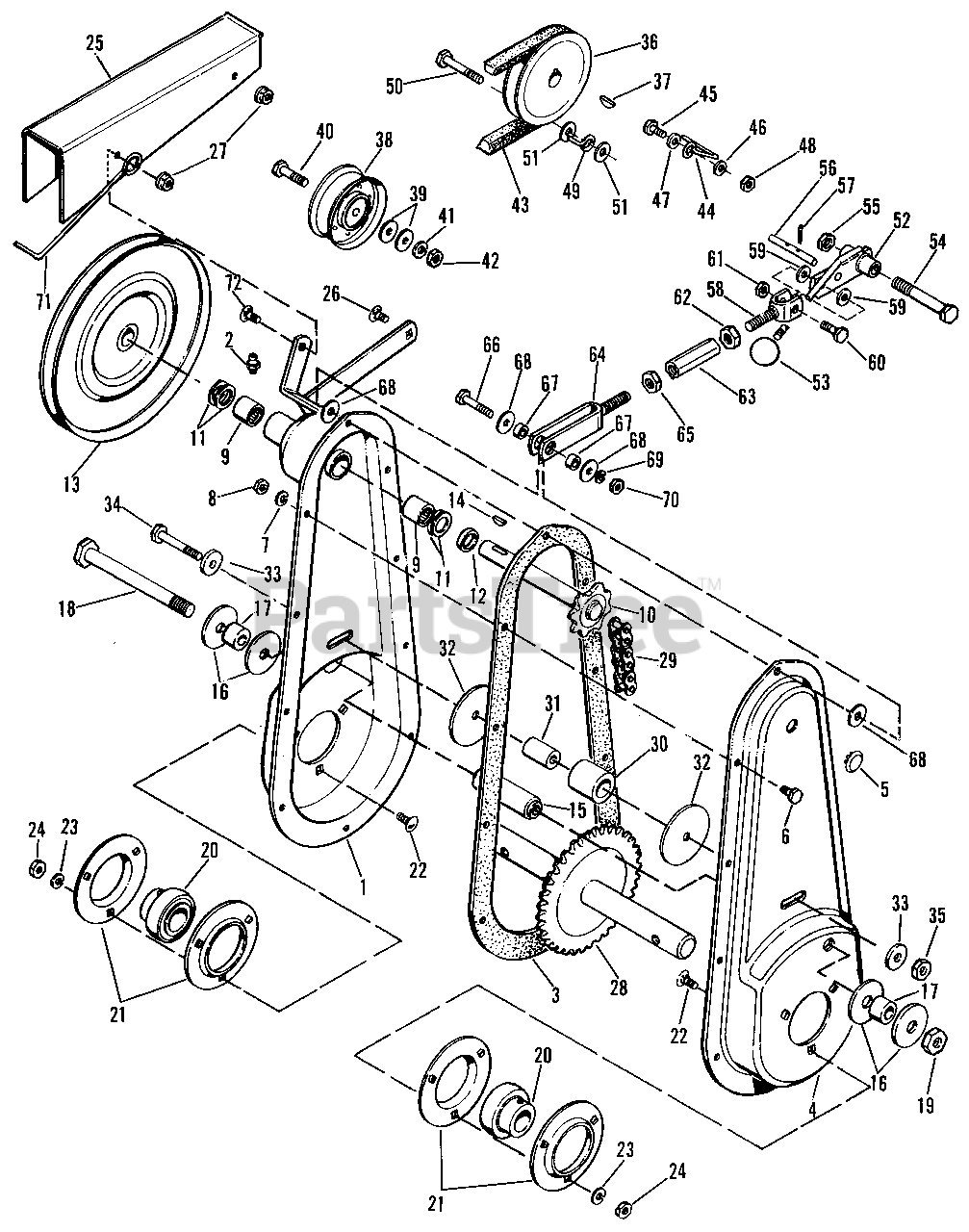

TRANSMISSION Parts Diagram

  • Title

1

Simplicity 170323

L.H. Case Assembly

$

$

Not available

2

Simplicity 2727002

Grease Fitting

$

$

Not available

3

Simplicity 2170022

Case Gasket

$

$

Not available

4

Simplicity 170367

R.H. Case Assembly

$

$

Not available

5

Simplicity 2164191

Plug Button

$

$

Not available

6

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

7

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

8

Simplicity 2717001

Hex. Full Lock Nut, 5/16"-18

$

$

Not available

9

Simplicity 2108054

Needle Bearing

$

$

Not available

10

Simplicity 170023

Drive Shaft Assembly

$

$

Not available

11

Simplicity 2153079

Washer

$

$

Not available

12

Simplicity 170329

Spacer

$

$

Not available

13

Simplicity 170121

Pulley (Driven)

$

$

Not available

14

Simplicity 2725003

Woodruff Key, 3/16" x 3/4"

$

$

Not available

15

Simplicity 170029

Case Spacer

$

$

Not available

16

Simplicity 2105010

Washer

$

$

Not available

17

Simplicity 170179

Spacer

$

$

Not available

18

Simplicity 715111

Hex Capscrew, 1/2"-13 x 5-1/2" lg.

$71.99

$

Usually ships in 2-12 days

0

19

Simplicity 2717518

Hex Nut, Full, Lock, 1/2"-13

$

$

Not available

20

Simplicity 2170419

Bearing

$

$

Not available

21

Simplicity 2161069

Bearing Flange

$

$

Not available

22

Simplicity 2702015

Carriage Bolt, 5/16"-18 x 3/4" lg.

$

$

Not available

23

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

24

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

25

Simplicity 2105326A

Belt Guard

$

$

Not available

26

Simplicity 703011

Carriage Bolt, Short Sq. Neck 5/16"-18 x 1/2"

$8.49

$

Usually ships in 2-12 days

0

27

Simplicity 2718033

Special Nut, 5/16"-18

$

$

Not available

28

Simplicity 170030

Tine Shaft Assy.

$

$

Not available

29

Simplicity 170053

Chain

$

$

Not available

30

Simplicity 2170177SM

Roller

$13.99

$

Usually ships in 2-12 days

0

31

Simplicity 2170369SM

Spacer

$

$

Not available

32

Simplicity 2170368

Washer

$

$

Not available

33

Simplicity 2157424SM

Washer

$7.99

$

Usually ships in 2-12 days

0

34

Simplicity 2715036

Hex Capscrew, 3/8"-16 x 2-1/4" lg.

$

$

Not available

35

Simplicity 2717510

Hex Nut, Full, Lock, 3/8"-16

$

$

Not available

36

Simplicity 170395

Pulley (Driver)

$

$

Not available

37

Simplicity 2725003

Woodruff Key, 3/16"-3/4"

$

$

Not available

38

Simplicity 2156124SM

Idler Pulley

$

$

Not available

39

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

40

Simplicity 2705016

Hex Capscrew, 3/8"-16 x 1-1/4" lg.

$

$

Not available

41

Simplicity 2720002

Lockwasher, 3/8"

$

$

Not available

42

Simplicity 2717003

Hex Nut, Full, 3/8"-16

$

$

Not available

43

Simplicity 2108505

"V" Belt
(Superseded to 1727773SM)

$34.99

$

In Stock, Qty 8

0

44

Simplicity 170396

Belt Stop

$

$

Not available

45

Simplicity 2705017

Hex Capscrew, 5/16"-18 x 3/4" lg.

$

$

Not available

46

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

47

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

48

Simplicity 2717001

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

49

Simplicity 2170397SM

Belt Stop

$12.99

$

Usually ships in 2-12 days

0

50

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

51

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

52

Simplicity 170310

Clutch Lever Assembly

$

$

Not available

53

Simplicity 2122005SM

Knob

$15.99

$

Usually ships in 2-12 days

0

54

Simplicity 705071

Hex Capscrew, 7/16"-14 x 2-3/4"

$30.99

$

Usually ships in 2-12 days

0

55

Simplicity 2717519

Hex Nut, Full, Lock 7/16"-14

$

$

Not available

56

Simplicity 170248

Stop Pin

$

$

Not available

57

Simplicity 2722001

Cotter Pin, 3/32" x 3/4"

$

$

Not available

58

Simplicity 170241

L.H. Clevis Assembly

$

$

Not available

59

Simplicity 166161

Washer

$

$

Not available

60

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

61

Simplicity 2717511

Hex Nut, Full, Lock, 5/16"-18

$

$

Not available

62

Simplicity 718046

Hex Nut, Full, 7/16"-14 L.H. Thread

$

$

Not available

63

Simplicity 166088

Turnbuckle

$

$

Not available

64

Simplicity 170244

R.H. Yoke Assembly

$

$

Not available

65

Simplicity 2717022

Hex Nut, Full 7/16"-14

$

$

Not available

66

Simplicity 2715078

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

67

Simplicity 2156150SM

Spacer

$11.99

$

Usually ships in 2-12 days

0

68

Simplicity 2719002

Plain Washer

$

$

Not available

69

Simplicity 2720001

Lock Washer

$

$

Not available

70

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

71

Simplicity 8161158

Belt Stop

$

$

Not available

72

Simplicity 2703005

Carriage Bolt, 5/16"-18 x 3/4" lg.

$

$

Not available
