990931 - Simplicity 26-1/2" Revitalizer Attachment HOUSING, TINES AND DRIVE Parts Diagram

26-1/2" Revitalizer Attachment

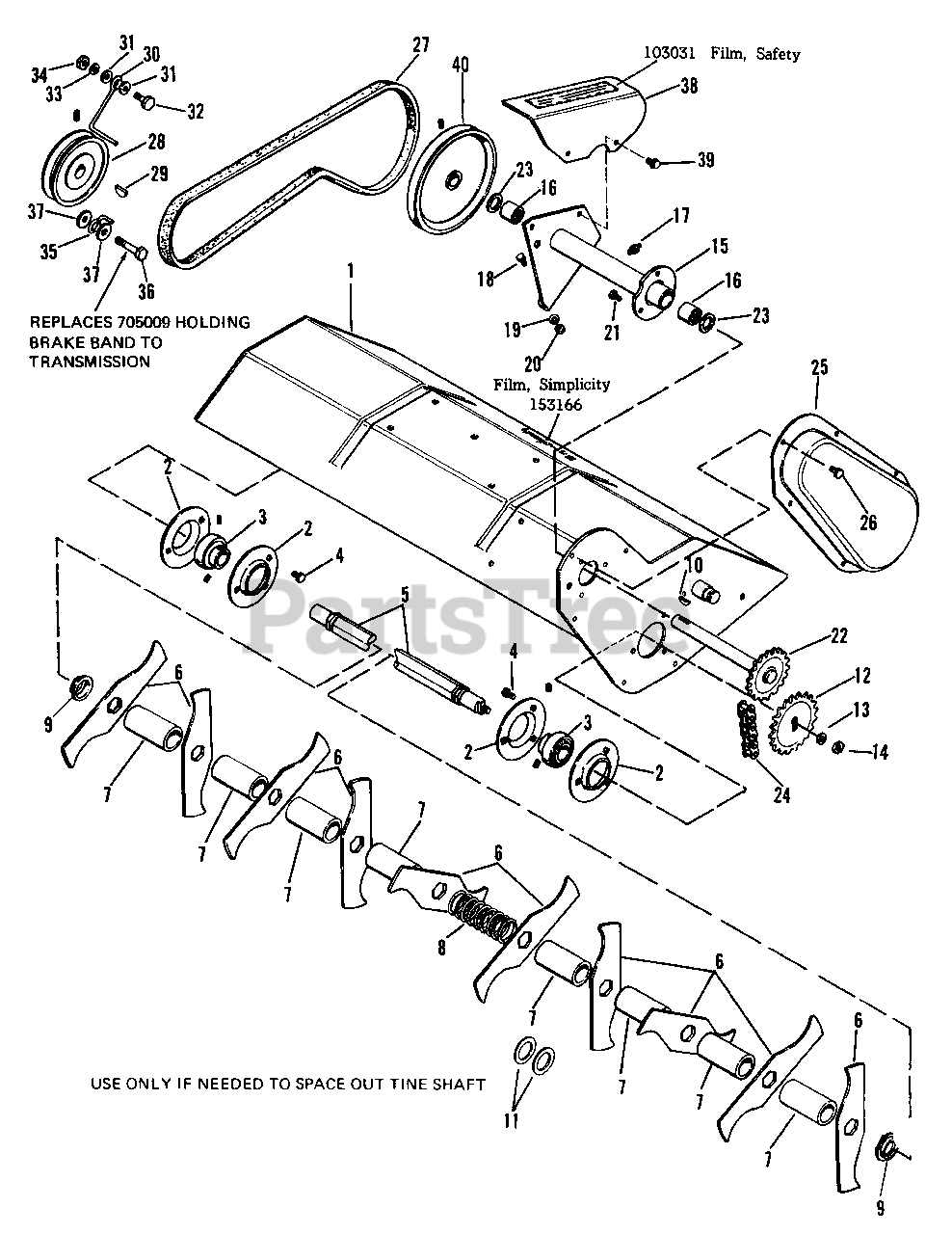

HOUSING, TINES AND DRIVE Parts Diagram

  • Title

1

Simplicity 170338

Housing Assembly

$

$

Not available

2

Simplicity 170388

Bearing Flange

$

$

Not available

3

Simplicity 170387

Bearing

$

$

Not available

4

Simplicity 2715083

Thread Forming Screw, 5/16"-18 x 1/2" lg.

$

$

Not available

5

Simplicity 170334

Tine Shaft

$

$

Not available

6

Simplicity 2170333

Tine

$

$

Not available

7

Simplicity 170337

Spacer

$

$

Not available

8

Simplicity 170417

Compression Spring

$

$

Not available

9

Simplicity 170881

Spacer

$

$

Not available

10

Simplicity 2725003

Key Woodruff 3/16" x 3/4"

$

$

Not available

11

Simplicity 2101022

Washer

$

$

Not available

12

Simplicity 170372

Sprocket

$

$

Not available

13

Simplicity 2719002

Plain Washers, 5/16"

$

$

Not available

14

Simplicity 717533

Hex Nut, Full, 3/8"-16

$

$

Not available

15

Simplicity 170332

Bearing Housing Assembly

$

$

Not available

16

Simplicity 2108054

Needle Bearings

$

$

Not available

17

Simplicity 2727002

Grease Fitting

$

$

Not available

18

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

19

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available

20

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

21

Simplicity 2715067

Hex Screw, Washer Hd., 1/4"-20 x 3/8" Taptite

$

$

Not available

22

Simplicity 170374

Drive Shaft Assembly

$

$

Not available

23

Simplicity 2153079

Washer

$

$

Not available

24

Simplicity 170393

Chain

$

$

Not available

25

Simplicity 170335

Chain Guard

$

$

Not available

26

Simplicity 2715067

Hex Screw, Washer Hd., 1/4"-20 x 3/8" lg. Taptite

$

$

Not available

27

Simplicity 2174364SM

V-BELT, 49.1"

$31.99

$

In Stock, only 1 left!

0

28

Simplicity 170395

Pulley

$

$

Not available

29

Simplicity 2725003

Key, Woodruff 3/16" x 3/4"

$

$

Not available

30

Simplicity 170396

Belt Stop

$

$

Not available

31

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

32

Simplicity 2705001

Hex Capscrew, 5/16"-18 x 7/8" lg.

$

$

Not available

33

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

34

Simplicity 2717001

Hex Nut, Full 5/16"-18

$

$

Not available

35

Simplicity 2170397SM

Belt Stop

$11.99

$

Usually ships in 2-12 days

0

36

Simplicity 2705010

Hex Capscrew, 3/8"-16 x 1-3/4" lg.

$

$

Not available

37

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

38

Simplicity 170420

Belt Guard

$

$

Not available

39

Simplicity 2715110

Thread Forming Screw, 5/16"-18 x 3/8" lg.

$

$

Not available

40

Simplicity 170336

Pulley

$

$

Not available
