990944 - Simplicity Hitch Assembly HITCH ASSEMBLY Parts Diagram

Hitch Assembly

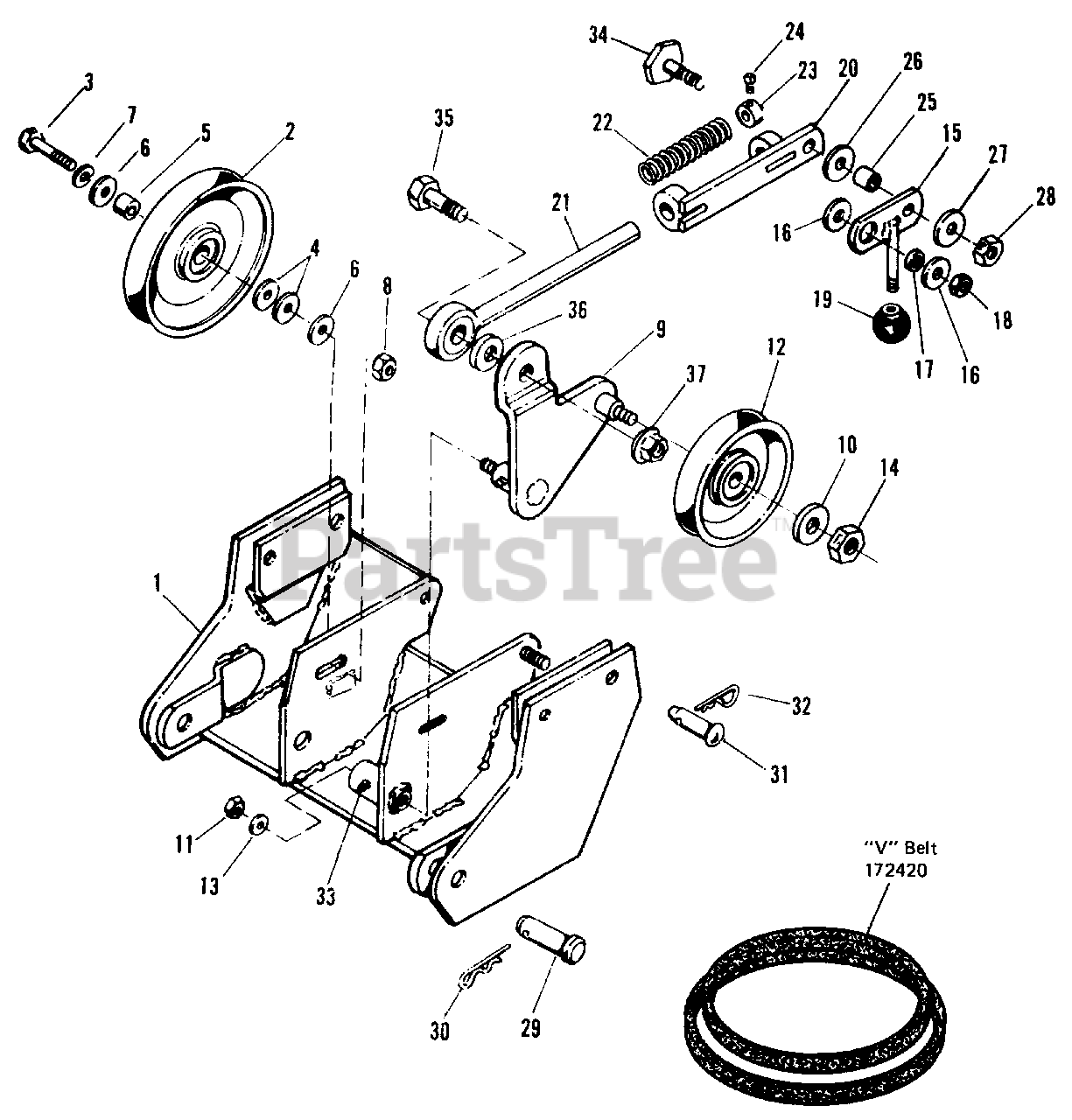

HITCH ASSEMBLY Parts Diagram

  • Title

1

Simplicity 177010

Support Assembly

$

$

Not available

2

Simplicity 2171641SM

Pulley

$87.99

$

Usually ships in 2-12 days

0

3

Simplicity 715143

Hex Capscrew, 3/8-24 x 1-3/4"

$83.99

$

Usually ships in 2-12 days

0

4

Simplicity 2719002

Plain Washer, 5/16

$

$

Not available

5

Simplicity 2170291

Spacer

$

$

Not available

6

Simplicity 2153052

Washer

$

$

Not available

7

Simplicity 2720002

Lock Washer, 3/8

$

$

Not available

8

Simplicity 174435

Special Nut, Flange

$

$

Not available

9

Simplicity 177014

Lever Assembly

$

$

Not available

10

Simplicity 2719002

Plain Washer, 5/16

$

$

Not available

11

Simplicity 2717510

Hex Nut Lock, 3/8-16

$

$

Not available

12

Simplicity 2171640SM

Pulley

$87.99

$

Usually ships in 2-12 days

0

13

Simplicity 2154325

Washer

$

$

Not available

14

Simplicity 2717521

Hex Nut Centerlock, 1/2-13

$

$

Not available

15

Simplicity 171624

Lever Assembly

$

$

Not available

16

Simplicity 2719001

Plain Washer, 3/8

$

$

Not available

17

Simplicity 2154177SM

Spacer

$39.99

$

In Stock, only 4 left!

0

18

Simplicity 2717524

Jam Nut, 3/8-16

$

$

Not available

19

Simplicity 2122005SM

Knob

$14.99

$

In Stock, only 1 left!

0

20

Simplicity 177004

Rod Guide Assembly

$

$

Not available

21

Simplicity 177204

Eye Bolt

$

$

Not available

22

Simplicity 2163103SM

Spring

$8.49

$

Usually ships in 2-12 days

0

23

Simplicity 105201

Set Collar

$

$

Not available

24

Simplicity 2713001

Set Screw, 1/4-20 x 3/8

$

$

Not available

25

Simplicity 2153081

Spacer

$

$

Not available

26

Simplicity 2159134

Special Washer

$

$

Not available

27

Simplicity 2719001

Plain Washer, 3/8

$

$

Not available

28

Simplicity 2717510

Hex Nut, Full Lock, 3/8-16

$

$

Not available

29

Simplicity 2112052

Yoke Pin

$

$

Not available

30

Simplicity 2176012SM

Safety Spring Clip
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 2102004SM

Pivot Pin

$9.49

$

In Stock, only 3 left!

0

32

Simplicity 2106788

Hair Pin Clip

$

$

Not available

33

Simplicity 2727013

Grease Fitting

$

$

Not available

34

Simplicity 2108418

Screw

$

$

Not available

35

Simplicity 2108412

Shoulder Bolt

$

$

Not available

36

Simplicity 2719004

Washer Plain, 1/2

$

$

Not available

37

Simplicity 2718035

Nut Flange, 3/8-16

$

$

Not available
