990945 - Simplicity Tine Extension Kit Tine Extension Parts Diagram

Tine Extension Kit

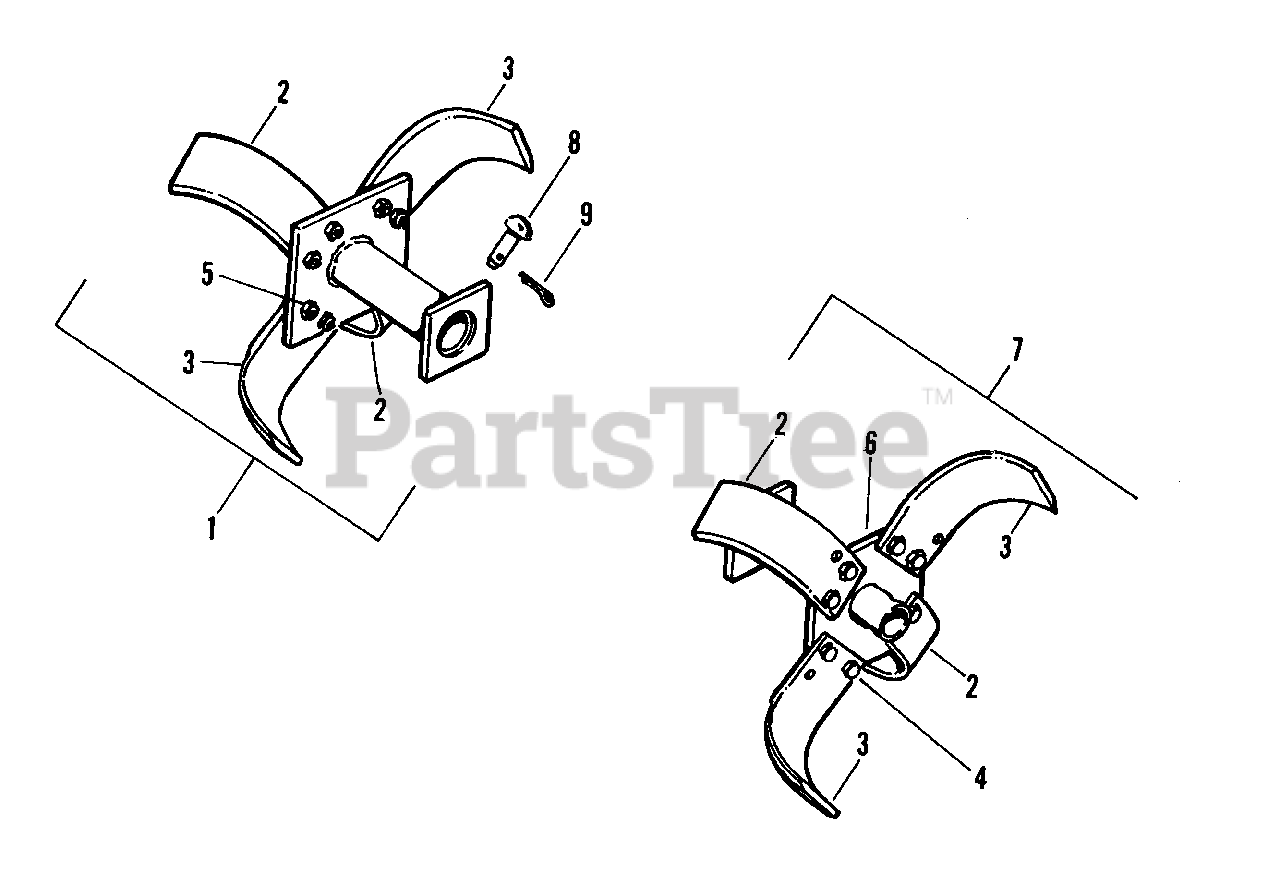

Tine Extension Parts Diagram

  • Title

1

Simplicity 176468

TINE BLADE EXT. ASSY, L.H.

Note: CONSISTS OF REF. NOS. 2 THRU 6

$

$

Not available

2

Simplicity 2172511SM

TINE, R.H.
(Superseded to 2172511ASM)

$34.99

$

In Stock, Qty 20+

0

3

Simplicity 2172512SM

TINE, L.H.
(Superseded to 2172512ASM)

$34.99

$

In Stock, Qty 20+

0

4

Simplicity 2825204

CAPSCREW, Hex, 3/8-16 x 1

$

$

Not available

5

Simplicity 926933

NUT, Hex, Lock, 3/8-16

$

$

Not available

6

Simplicity 176227

PLATE ASSY, Tine Extension

$

$

Not available

7

Simplicity 176469

TINE BLADE EXT. ASSY, R.H.

Note: CONSISTS OF REF. NOS. 2 THRU 6

$

$

Not available

8

Simplicity 2118053SM

PIN
(Superseded to 704241)

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 2 left!

0
