990989 - Homelite Tiller Attachment Housing Group (3846I01) Parts Diagram

Tiller Attachment

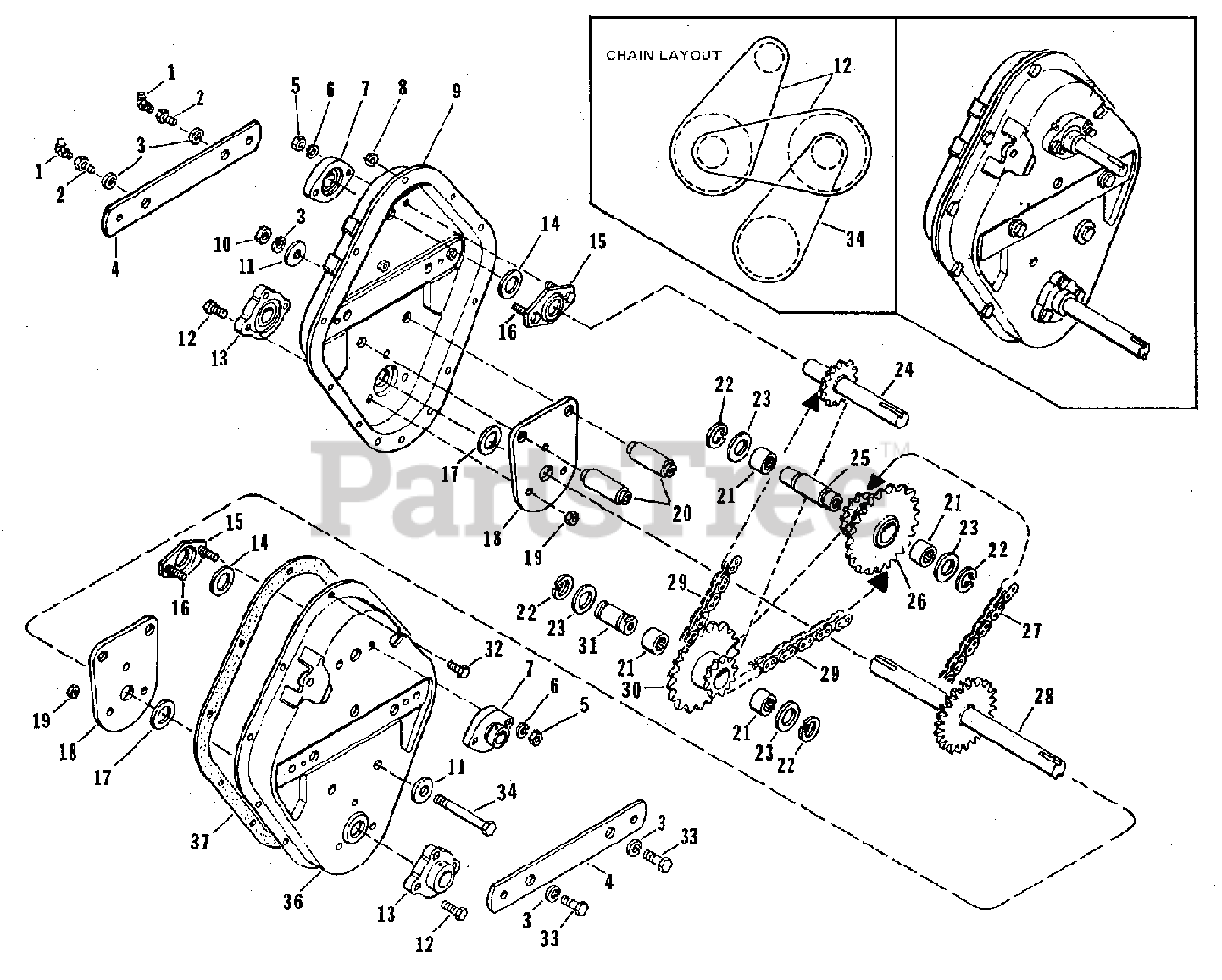

Housing Group (3846I01) Parts Diagram

  • Title

1

Simplicity LM-09150-19

FITTING, Grease

$

$

Not available

2

Simplicity LM-01051-32

BOLT, R.H. Side

$

$

Not available

3

Simplicity LM-09169-66

WASHER, Lock, 1/2

$

$

Not available

4

Simplicity LM-01053-20

SIDE BAR

$

$

Not available

5

Simplicity LM-09173-72

NUT, Full Hex, 5/16-18

$

$

Not available

6

Simplicity LM-09173-56

WASHER, Lock, 5/16"

$

$

Not available

7

Simplicity LM-01053-11

BEARING

$

$

Not available

8

Simplicity LM-09233-62

LOCKNUT, Full Hex, 5/16-18

$

$

Not available

9

Simplicity LM-01053-66

HALF CASE ASSEMBLY, R.H.

$

$

Not available

10

Simplicity LM-09169-51

NUT, Full Hex, 1/2-13

$

$

Not available

11

Simplicity LM-09184-31

WASHER, Flat, 1/2

$

$

Not available

12

Simplicity LM-07150-91

SCREW, Thread Forming, 3/8-16 x 1-1/2

$

$

Not available

13

Simplicity LM-01053-09

BEARING

$

$

Not available

14

Simplicity LM-01053-65

SEAL

$

$

Not available

15

Simplicity LM-01053-13

UPPER BEARING PLATE ASSEMBLY

$

$

Not available

16

Simplicity LM-09212-21

SCREW, Hex Cap, 5/16-18 x 1-1/2

$

$

Not available

17

Simplicity LM-01053-57

SEAL

$

$

Not available

18

Simplicity LM-01053-07

PLATE, Reinforcing

$

$

Not available

19

Simplicity LM-09287-31

NUT, Hex Lock, Jam 3/8-16

$

$

Not available

20

Simplicity LM-01053-60

SPACER

$

$

Not available

21

Simplicity LM-01051-95

BEARING, Roller

$

$

Not available

22

Simplicity LM-01051-94

RING, Retaining

$

$

Not available

23

Simplicity LM-82810-14

WASHER

$

$

Not available

24

Simplicity LM-01052-98

PULLEY SHAFT ASSEMBLY

$

$

Not available

25

Simplicity LM-01051-92

SPACER, Intermediate

$

$

Not available

26

Simplicity LM-01053-01

SPROCKET ASSEMBLY

$

$

Not available

27

Simplicity LM-01053-45

CHAIN

$

$

Not available

28

Simplicity LM-01052-97

TINE SHAFT ASSEMBLY

$

$

Not available

29

Simplicity LM-01053-36

CHAIN

$

$

Not available

30

Simplicity LM-01052-91

SPROCKET ASSEMBLY

$

$

Not available

31

Simplicity LM-01052-92

SPACER, Intermediate

$

$

Not available

32

Simplicity LM-09193-18

SCREW, Hex Cap, 5/16-18 x 5/8

$

$

Not available

33

Simplicity LM-07060-22

SCREW, Hex Cap, (L.H.) 1/2-20 X 1-1/4

$

$

Not available

34

Simplicity LM-07050-68

SCREW, Hex Cap, 1/2-13 x 4

$

$

Not available

35

Simplicity LM-01053-67

HALF CASE ASSEMBLY, L.H.

$

$

Not available

36

Simplicity LM-01053-73

GASKET

$

$

Not available

-

Simplicity LM-01053-63

GREASE CAP

$

$

Not available
