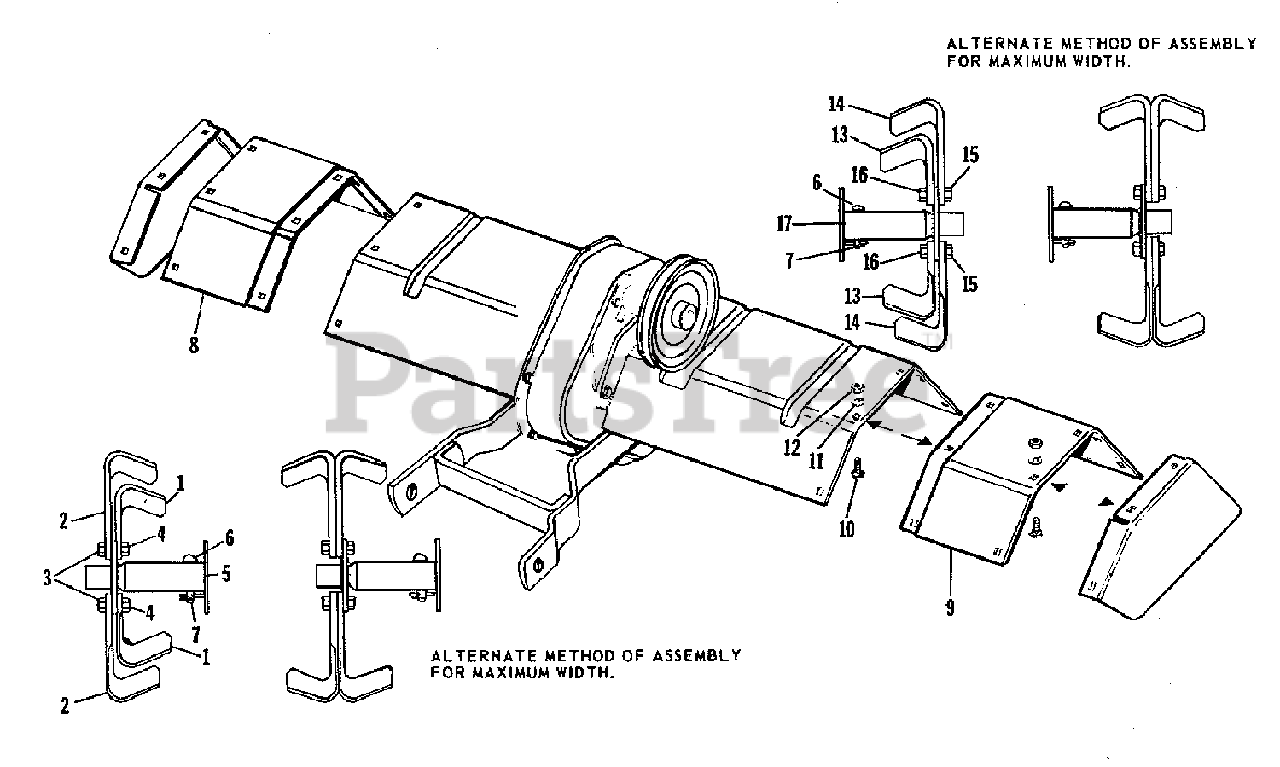

990989 - Homelite Tiller Attachment Tine Extension Group (3846I03) Parts Diagram

Tiller Attachment

Tine Extension Group (3846I03) Parts Diagram

  • Title

1

Simplicity LM-01053-03

HANDLE, Clutch

$

$

Not available

2

Simplicity LM-01067-87

CLIP, Spring

$

$

Not available

3

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

4

Simplicity LM-09206-77

SCREW, Hex Cap, 7/16-14 x 1-1/4

$

$

Not available

5

Simplicity LM-01053-46

SPACER

$

$

Not available

6

Simplicity LM-01180-53

PIN

$

$

Not available

7

Simplicity LM-07175-19

NUT, Hex Lock, 7/16-14

$

$

Not available

8

Simplicity LM-01053-39

SPACER

$

$

Not available

9

Simplicity LM-01052-95

LEVER, Clutch

$

$

Not available

10

Simplicity LM-09169-50

NUT, Hex, 3/8-16

$

$

Not available

11

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

12

Simplicity LM-09257-63

NUT, Whiz Lock, 5/16-18

$

$

Not available

13

Simplicity LM-01053-59

SUPPORT, Rear Belt Guard

$

$

Not available

14

Simplicity LM-09184-30

WASHER, Flat, 7/16

$

$

Not available

15

Simplicity LM-07150-93

SCREW, Hex Cap, 7/16-14 x 3-1/2

$

$

Not available

16

Simplicity LM-01053-26

GUARD, Belt

$

$

Not available

17

Simplicity LM-07030-11

BOLT, Carriage, 5/16-18 x 1/2

$

$

Not available

18

Simplicity LM-01574-27

KEY

$

$

Not available

19

Simplicity LM-01053-02

PULLEY

$

$

Not available

20

Simplicity LM-01053-06

PULLEY

$

$

Not available

21

Simplicity LM-09174-00

SCREW, Hex Cap, 3/8-16 x 1-1/4

$

$

Not available

22

Simplicity LM-09176-42

WASHER, Flat, 5/16

$

$

Not available

23

Simplicity LM-01640-83

PULLEY, Idler

$

$

Not available

24

Simplicity LM-01053-80

PULLEY, Idler

$

$

Not available

25

Simplicity LM-01053-40

BELT, "V"

$

$

Not available

26

Simplicity LM-80610-81

KEY

$

$

Not available

27

Simplicity LM-01642-02

PULLEY

$

$

Not available

28

Simplicity LM-09184-31

WASHER, Flat, 1/2

$

$

Not available

29

Simplicity LM-01053-86

SPACER

$

$

Not available

30

Simplicity LM-07150-97

SCREW, Hex Cap, 1/2-13 x 5

$

$

Not available

31

Simplicity LM-09220-48

SCREW, Hex Cap, 3/8-16 x 4-1/2

$

$

Not available

32

Simplicity LM-01550-37

PIN

$

$

Not available

33

Simplicity LM-01067-88

CLIP, Spring

$

$

Not available

34

Simplicity LM-16074-26

FRAME

$

$

Not available

35

Simplicity LM-09234-28

NUT, Hex Lock, 3/8-16

$

$

Not available

36

Simplicity LM-07175-18

NUT, Hex Lock, 1/2-13

$

$

Not available

37

Simplicity LM-01670-32

STOP, Belt

$

$

Not available

38

Simplicity LM-01563-06

PIN

$

$

Not available

39

Simplicity LM-01053-51

GUARD, Belt

$

$

Not available

40

Simplicity LM-09193-57

SCREW, Hex Cap, 3/8-16 x 7/8

$

$

Not available

41

Simplicity LM-01726-39

BRACKET, Depth Limit

$

$

Not available

42

Simplicity LM-01070-31

CHAIN

$

$

Not available

43

Simplicity LM-81610-45

CLIP, Spring

$

$

Not available

44

Simplicity LM-01082-00

CLIP, Chain

$

$

Not available

45

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

46

Simplicity LM-01584-06

GUIDE, Rod

$

$

Not available

47

Simplicity LM-01053-43

ROD, Clutch

$

$

Not available

48

Simplicity LM-81910-45

SPRING

$

$

Not available

50

Simplicity LM-09038-07

SCREW, Set, 1/4-20 x 3/8"

$

$

Not available

51

Simplicity LM-16074-25

BAR, Lift

$

$

Not available

52

Simplicity LM-01053-22

IDLER, Arm

$

$

Not available

53

Simplicity LM-16060-14

STOP, Belt

$

$

Not available

54

Simplicity LM-09077-31

SCREW, Hex, 3/8-16 x 1

$

$

Not available

55

Simplicity LM-09234-71

SCREW, Hex, 7/16 x 14 x 1-1/4

$

$

Not available

56

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available
