990995 - Homelite 36" Snow Thrower Attachment Spout Group (3496I02) Parts Diagram

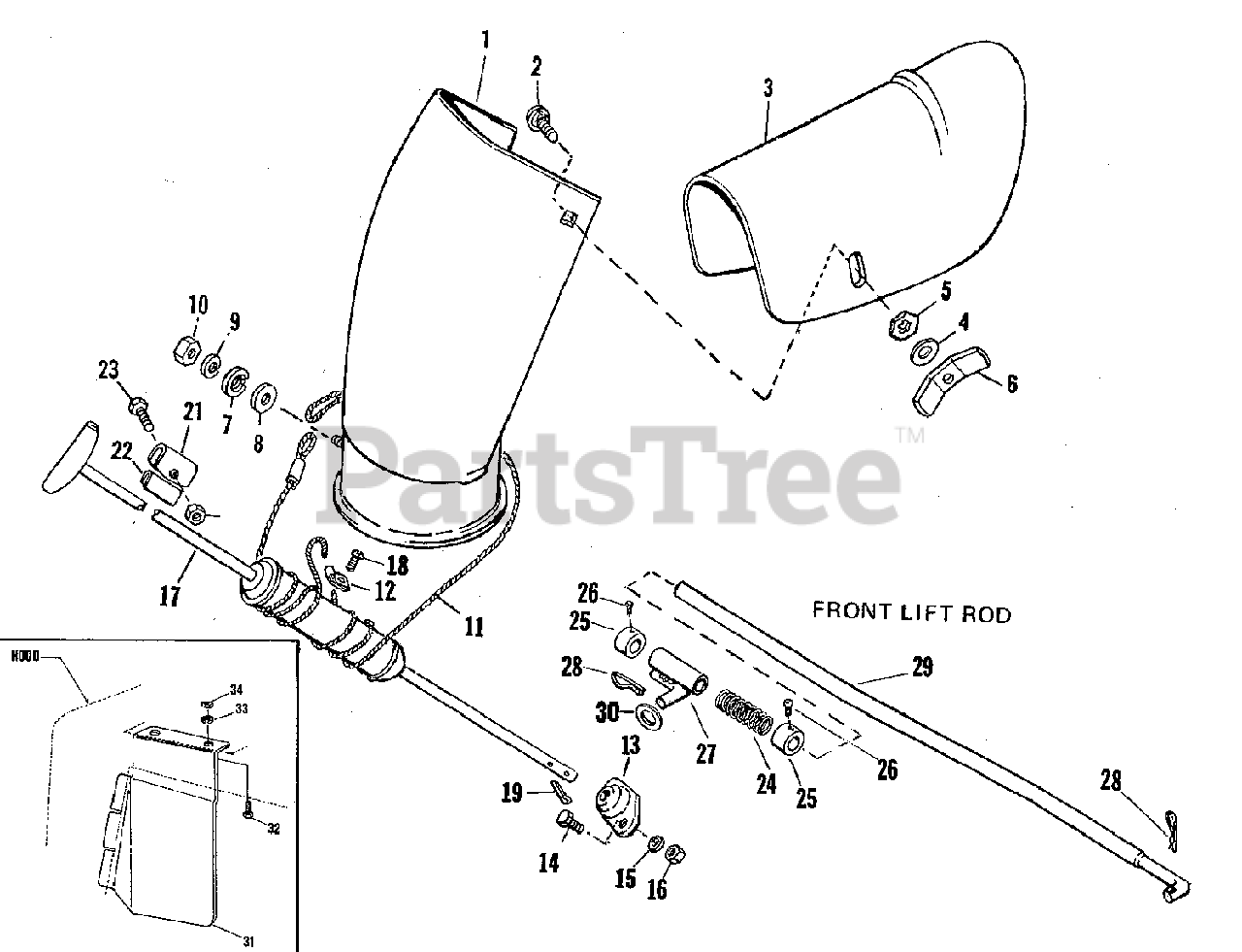

36" Snow Thrower Attachment

Spout Group (3496I02) Parts Diagram

  • Title

1

Simplicity LM-01067-62

SPOUT ASSEMBLY

$

$

Not available

2

Simplicity LM-09194-14

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

3

Simplicity LM-01067-60

EXTENSION, Spout

$

$

Not available

4

Simplicity LM-09173-78

WASHER, Flat, 3/8

$

$

Not available

5

Simplicity LM-09287-10

WASHER, Lock, Special

$

$

Not available

6

Simplicity LM-01062-29

NUT, Wing, 5/16-18

$

$

Not available

7

Simplicity LM-01713-79

WASHER, Cup

$

$

Not available

8

Simplicity LM-09173-77

WASHER, Flat, 1/4

$

$

Not available

9

Simplicity LM-09173-56

WASHER, Lock, 5/16

$

$

Not available

10

Simplicity LM-09173-72

NUT, Hex, 5/16-18

$

$

Not available

11

Simplicity LM-01713-62

CABLE ASSEMBLY

$

$

Not available

12

Simplicity LM-01713-82

CLAMP

$

$

Not available

13

Simplicity LM-01064-91

BEARING

$

$

Not available

14

Simplicity LM-09077-27

SCREW, Hex Cap, 1/4-20 x 5/8

$

$

Not available

15

Simplicity LM-09169-64

WASHER, Lock, 1/4"

$

$

Not available

16

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

17

Simplicity LM-01719-19

TUBE ASSEMBLY, Spout Control

$

$

Not available

18

Simplicity LM-09274-28

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

19

Simplicity LM-09220-00

PIN, Cotter, 3/32 x 5/8

$

$

Not available

20

Simplicity LM-09233-62

NUT, Hex Lock, 5/16-18

$

$

Not available

21

Simplicity LM-01520-50

GUIDE, Rod

$

$

Not available

22

Simplicity LM-01211-75

LINER, Guide

$

$

Not available

23

Simplicity LM-09077-29

SCREW, Hex Cap, 5/16-18 x 1-1/4

$

$

Not available

24

Simplicity LM-01060-64

SPRING

$

$

Not available

25

Simplicity LM-80310-07

COLLAR, Set

$

$

Not available

26

Simplicity LM-09287-09

SCREW, Set, 5/16-18 x 3/8

$

$

Not available

27

Simplicity LM-01716-7-

GUIDE ASSEMBLY, Rod

$

$

Not available

28

Simplicity LM-01067-88

CLIP, Hair Pin, 1/8 Diameter

$

$

Not available

29

Simplicity LM-16066-35

ROD, Lift

$

$

Not available

30

Simplicity LM-09169-60

WASHER, Flat, 17/32 x 1-1/4

$

$

Not available

31

Simplicity LM-16074-23

DEFLECTOR, Snow

$

$

Not available

32

Simplicity LM-09082-95

SCREW, Hex Cap, 1/4-20 x 1/2

$

$

Not available

33

Simplicity LM-09169-64

WASHER, 1/4

$

$

Not available

34

Simplicity LM-09166-22

NUT, Hex, 1/4-20

$

$

Not available

-

Simplicity LM-01702-52

DECAL, Snow Deflector

$

$

Not available

-

Simplicity LM-01612-47

DECAL, Safety

$

$

Not available
