990C-00 - Paramount Edger, Electric BRUSH ASSEMBLY Parts Diagram

Edger, Electric

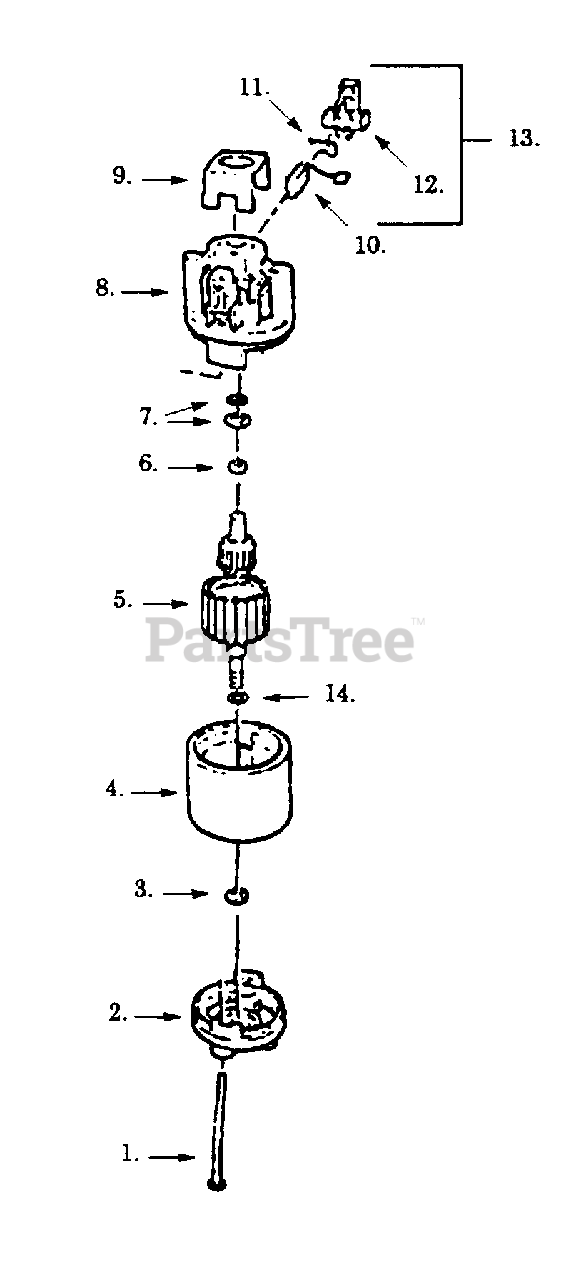

BRUSH ASSEMBLY Parts Diagram

  • Title

1

Poulan 534228704

Screw

$

$

Not available

2

Poulan 534207101

Endbell Ass'y. (Drive)

$

$

Not available

3

Poulan 534238903

Washer

$

$

Not available

4

Poulan 534227005

Field Ass'y.

$

$

Not available

5

Poulan 534225115

Armature Ass'y.

$

$

Not available

6

Poulan 534246700

Washer

$

$

Not available

7

Poulan 534228800

Washer

$

$

Not available

8

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

9

Poulan 534226000

Insulator

$

$

Not available

10

Poulan 534227800

Carbon Brush

$

$

Not available

11

Poulan 534228000

Brush Spring

$

$

Not available

12

Poulan 534227700

Brush Holder

$

$

Not available

13

Poulan 534450400

Brush Kit (Incl. 10,11,12)

$

$

Not available

14

Poulan 534747002

Retaining Ring

$

$

Not available
