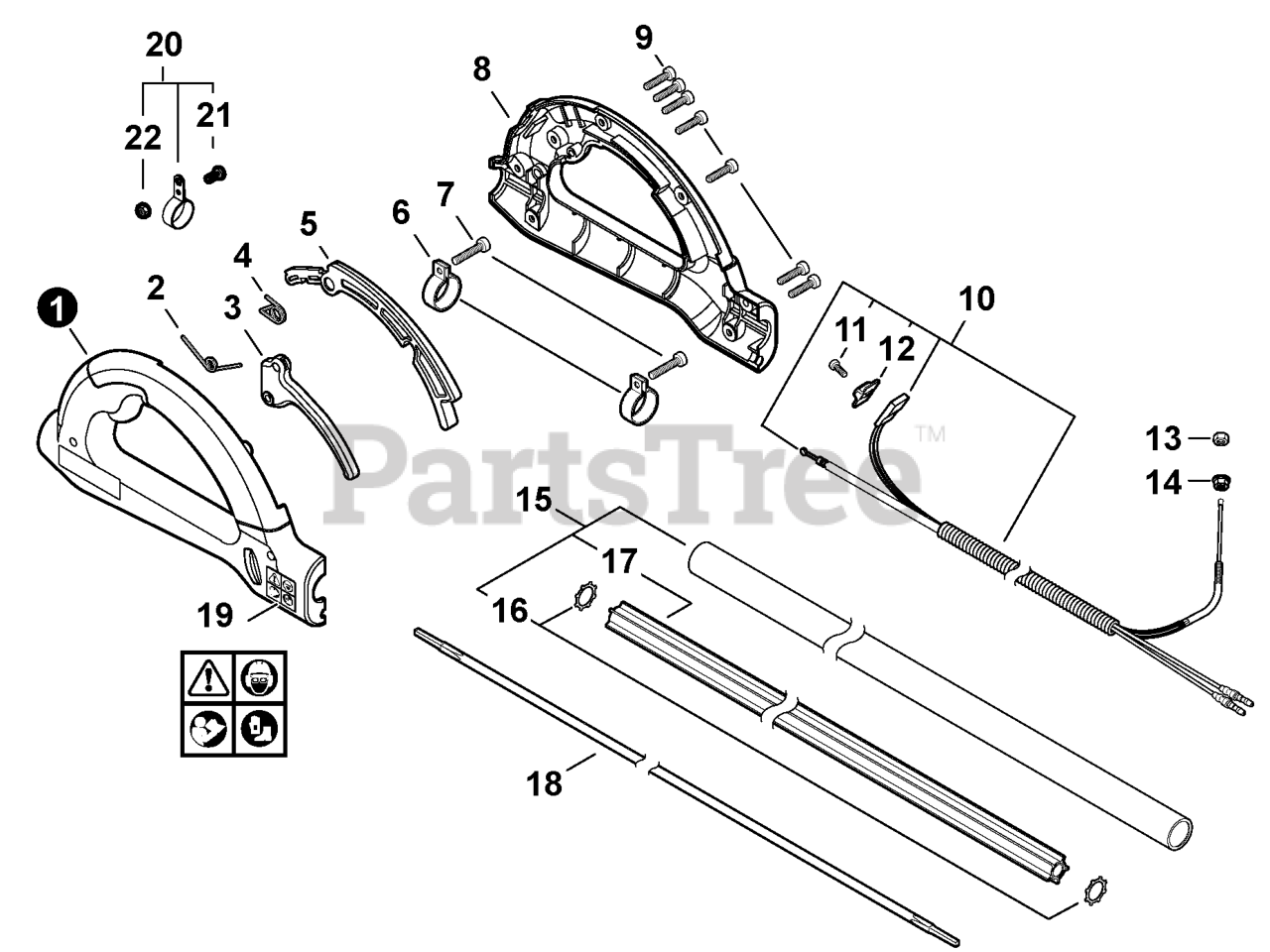

99100 (99922238248) - Echo Shaft Assembly for PPT-2620 Main Pipe, Control Handle Parts Diagram

Shaft Assembly for PPT-2620

Main Pipe, Control Handle Parts Diagram

  • Title

1

Echo C041000012

BODY, HANDLE - LEFT

$13.99

$

In Stock, only 1 left!

0

2

Echo V452000330

SPRING, TORSION

$0.99

$

In Stock, Qty 5

0

3

Echo C450000260

TRIGGER, THROTTLE

$1.99

$

In Stock, Qty 5

0

4

Echo V452000340

SPRING, TORSION

$1.49

$

In Stock, only 1 left!

0

5

Echo C460000100

LOCKOUT, THROTTLE

$2.99

$

In Stock, only 2 left!

0

6

Echo V495003020

CLAMP

$1.49

$

In Stock, Qty 6

0

7

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

8

Echo C041000002

BODY, HANDLE - RIGHT

$12.99

$

In Stock, only 1 left!

0

9

Echo V805000000

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

10

Echo P021052190

CABLE ASSY, CONTROL

Note: Includes Items 11-12

$30.99

$

In Stock, only 2 left!

0

11

Echo 9154503010

SCREW 3x10

$0.99

$

In Stock, Qty 20+

0

12

Echo A444000020

KNOB, SWITCH - ORANGE

$0.99

$

In Stock, Qty 20+

0

13

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 20+

0

14

Echo 90051800006

NUT, FLANGE M6

$1.99

$

In Stock, Qty 20+

0

15

Echo C500000830

MAIN PIPE ASSY

Note: Includes Items 16-17

$29.99

$

In Stock, only 2 left!

0

16

Echo V583000110

WASHER

$0.99

$

In Stock, Qty 7

0

17

Echo C507000180

LINER - FLEXIBLE
(Superseded to C507000160)

$6.49

$

In Stock, Qty 7

0

18

Echo C506000810

DRIVESHAFT - FLEXIBLE

$25.99

$

In Stock, only 3 left!

0

19

Echo X505002363

LABEL - CAUTION - ISO

$5.49

$

Usually ships in 2-4 days

0

20

Echo P021049240

HANGER KIT

Note: Includes Items 21-22

$4.49

$

Usually ships in 2-4 days

0

21

Echo V805000130

BOLT, TORX 5x10

$0.99

$

In Stock, Qty 20+

0

22

Echo V263000080

NUT, M5x8 NYLON INSERT

$0.99

$

Usually ships in 2-4 days

0
