991001 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 16hp Kohler (SN: 000217 & Above) PTO CLUTCH LINKAGE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 16hp Kohler

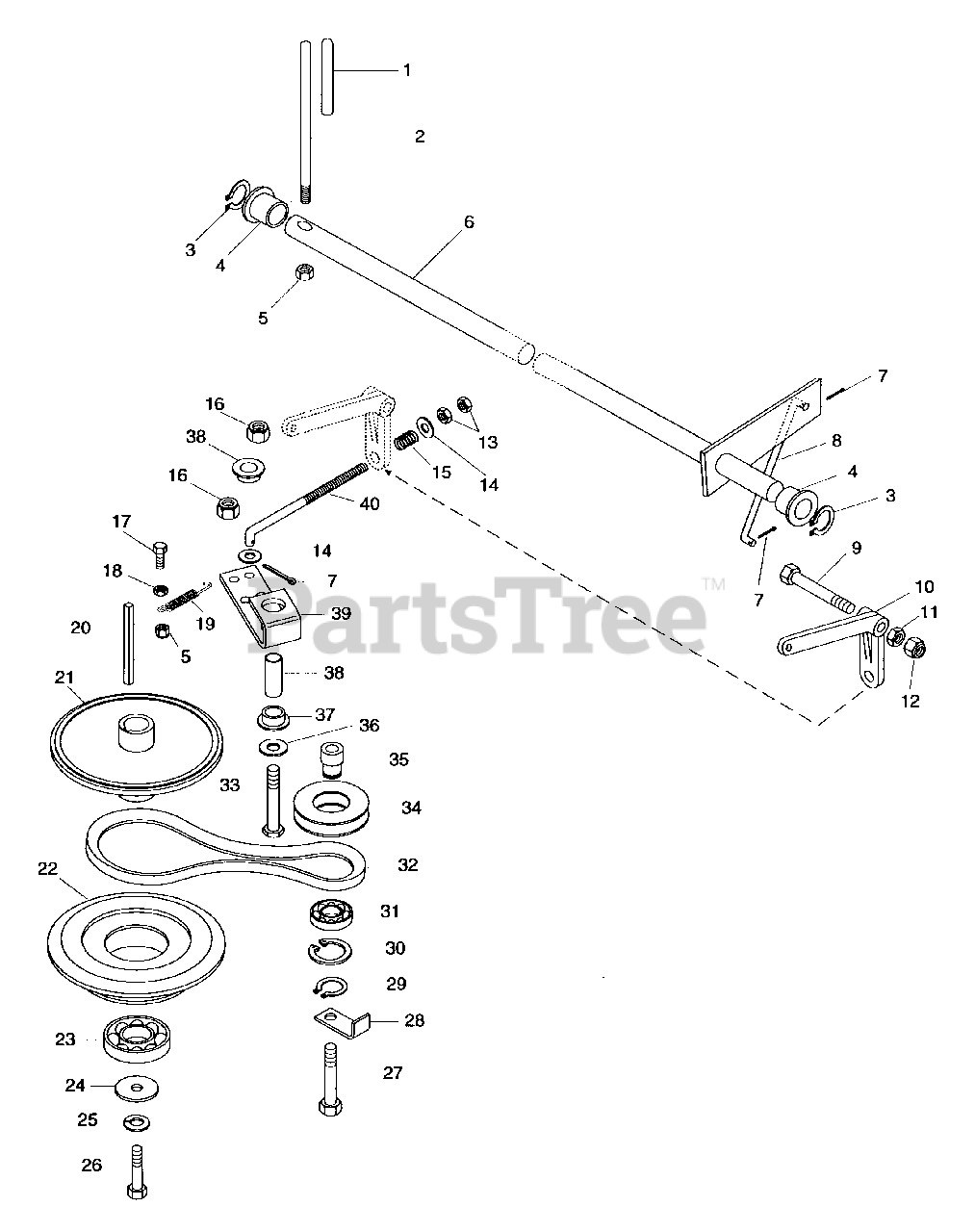

PTO CLUTCH LINKAGE Parts Diagram

  • Title

1

Gravely 043197

GRIP,HAND CLUTCH LEVER
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 091045

LVR,PTO ACTUATING
(Superseded to 09104500)

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 057092

RG-RTNG-EXT .625X.050
(Superseded to 05709200)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 045787

BSHG-FLG .630X1.000X.625 NY
(Superseded to 05517400)

$7.49

$

Usually ships in 4-12 days

0

5

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

6

Gravely 091042

WLDMT,PTO ACTUATING SHFT
(Superseded to 09104200)

$

$

Not available

7

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

8

Gravely 091046

ROD,PTO ACTUATING
(Superseded to 09104600)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 180183

BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 051139

LVR,PTO CLUTCH
(Superseded to 08844600)

$

$

Not available

11

Gravely 120238

NUT-JAM .50-13 YWZC
(Superseded to 06500911)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

13

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 064293

WSHR FL STL .406X .812X .065

$

$

Not available

15

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

16

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 120376

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

19

Gravely 034385

SG-TENS .061X.50X3.5 WLD4
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

20

Gravely 066066

KEY-SQ .25X3.635X.25
(Superseded to 06606600)

$

$

Not available

21

Gravely 051136

HUB,PTO CLUTCH
(Superseded to 08844400)

$

$

Not available

22

Gravely 041353

SHEAVE,MOWER CLUTCH
(Superseded to 08814000)

$346.99

$

Usually ships in 4-12 days

0

23

Gravely 035330

00G-BALL 1.57X3.15X.71
(Superseded to 05420900)

$213.99

$

In Stock, only 2 left!

0

24

Gravely 044379

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

25

Gravely 120383

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

26

Gravely 181676

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05964600)

$2.99

$

In Stock, Qty 7

0

27

Gravely 180185

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 1 left!

0

28

Gravely 039330

GD,BELT
(Superseded to 08810800)

$56.99

$

Usually ships in 4-12 days

0

29

Gravely 039331

SNAP RING, .781 X .042 EXT
(Superseded to 00102214)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 018960

RG-RTNG-INT 2.054X.062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 038898

BRG-BALL 1.85X.787X.55
(Superseded to 05425100)

$

$

Not available

32

Gravely 072250

V-BELT, HA-COGGED
(Superseded to 07225000)

$35.99

$

Usually ships in 4-12 days

0

33

Gravely 041333

BLT,HEX 1/2-13X2.75 SPCL
(Superseded to 08813700)

$

$

Not available

34

Gravely 038896

SHEAVE,IDLER
(Superseded to 08744300)

$131.99

$

Usually ships in 4-12 days

0

35

Gravely 039327

BUSH.,F.515X.787X1.41 ST
(Superseded to 08810700)

$104.99

$

Usually ships in 4-12 days

0

36

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

38

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

39

Gravely 051887

ARM,IDLER PIVOT
(Superseded to 08846200)

$

$

Not available

40

Gravely 041334

ROD,PTO CLUTCH ACTUATING
(Superseded to 08876200)

$204.99

$

In Stock, only 1 left!

0
