991001 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 16hp Kohler (SN: 000217 & Above) TRACTION DRIVE LINKAGE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 16hp Kohler

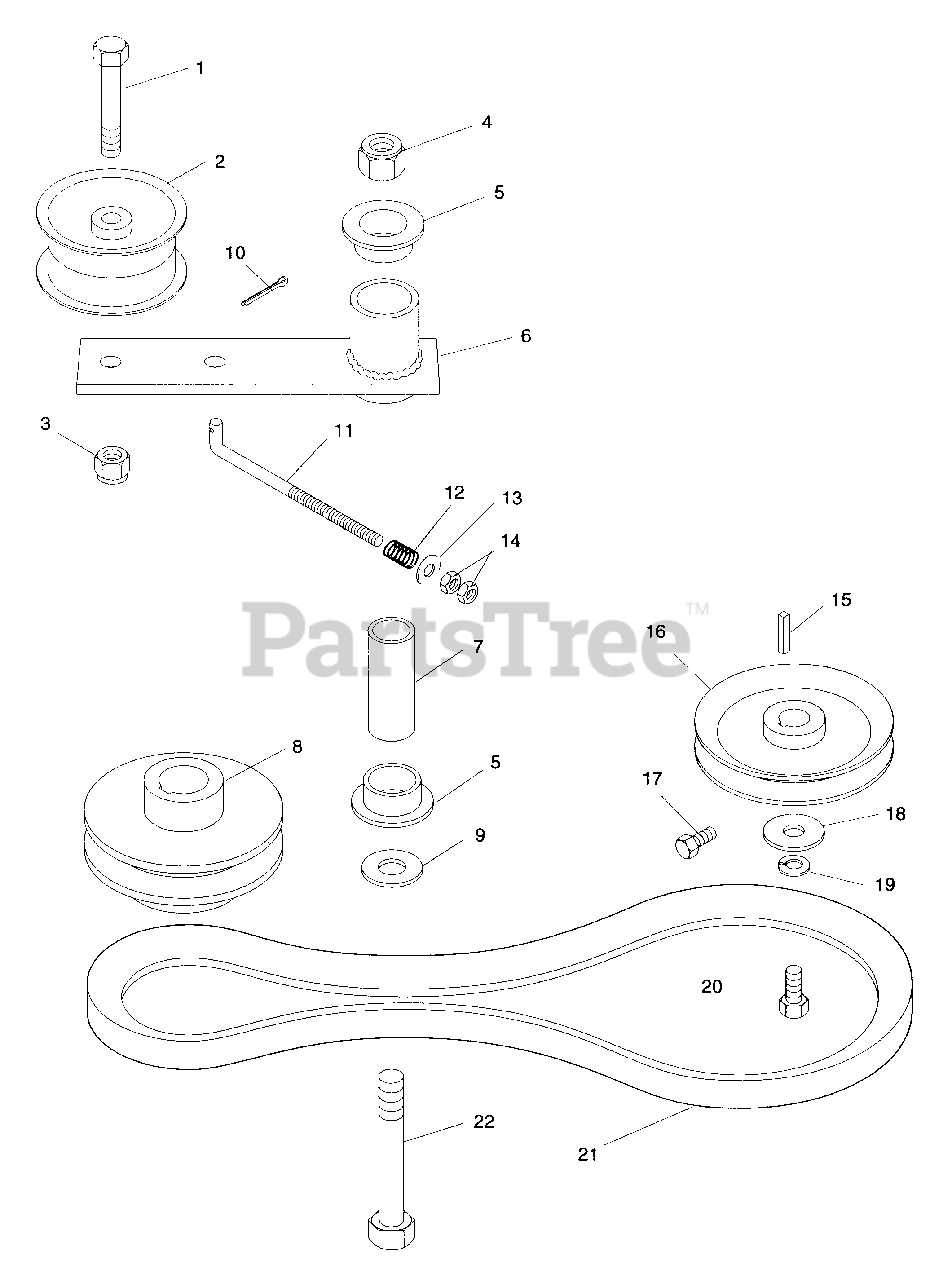

TRACTION DRIVE LINKAGE Parts Diagram

  • Title

1

Gravely 180128

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

$35.99

$

In Stock, Qty 5

0

3

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

6

Gravely 051134

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 051137

SHEAVE, ENGINE GROUND DRIVE
(Superseded to 08844500)

$136.99

$

Usually ships in 4-12 days

0

9

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

11

Gravely 052661

ROD,IDLER
(Superseded to 08879300)

$

$

Not available

12

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

13

Gravely 120394

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

15

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

$3.99

$

In Stock, Qty 12

0

16

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

$52.99

$

In Stock, Qty 10

0

17

Gravely 180016

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 012694

WSHR-FL-STL .281X1.250X.048PL
(Superseded to 06403700)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 120380

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

20

Gravely 050996

BLT-HEX M6 X 1.0X12 YWZC
(Superseded to 05969800)

$2.49

$

In Stock, Qty 10

0

21

Gravely 051141

V-BELT, HA-COGGED
(Superseded to 07223100)

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 180190

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0
