991002 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 - 001994) Hydraulic System Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

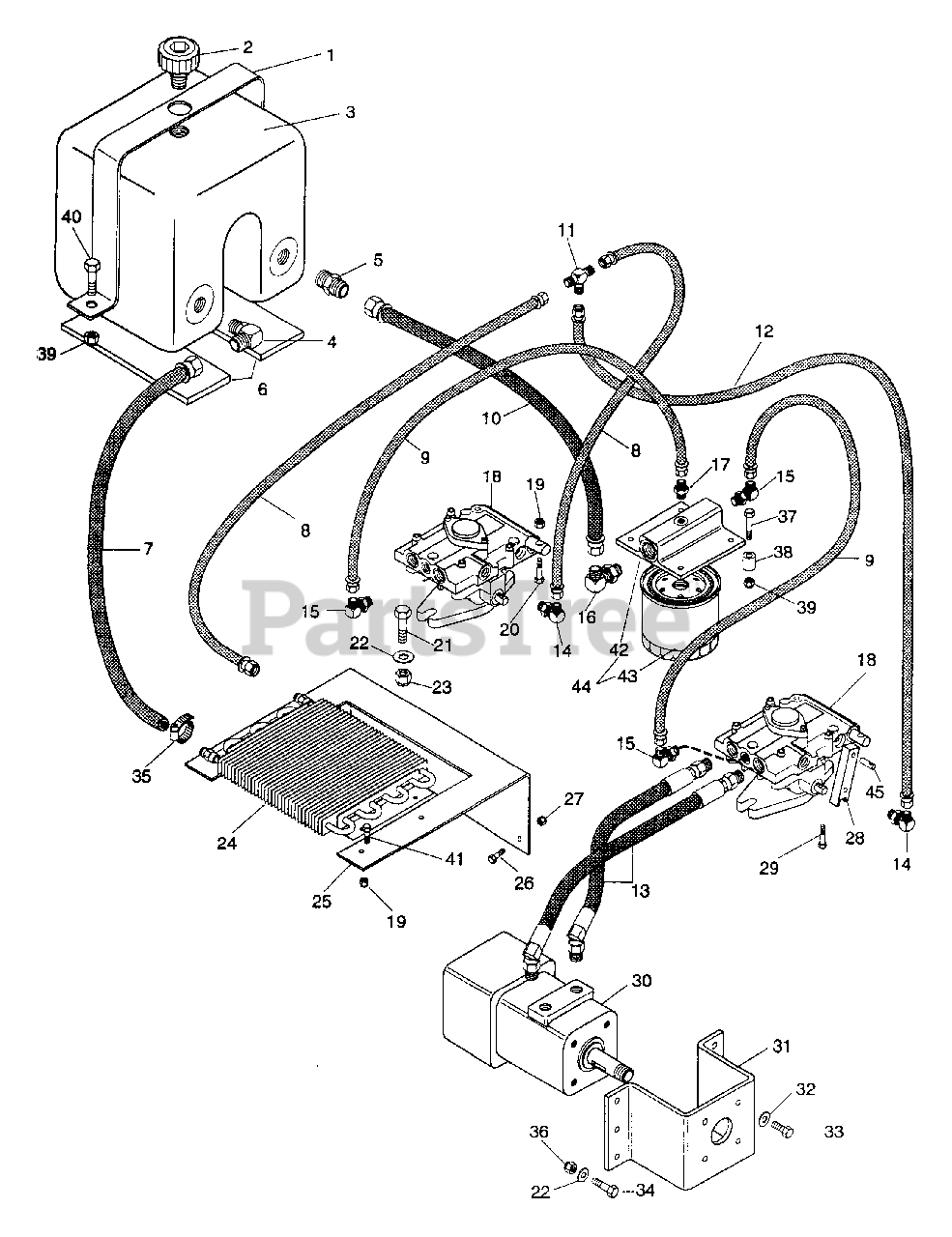

Hydraulic System Parts Diagram

  • Title

1

Gravely 050525

Strap, Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 050507

Cap, Filter
(Superseded to 08996400)

$36.99

$

In Stock, only 1 left!

0

3

Gravely 050272

Tank, Hydraulic
(Superseded to 09032900)

$

$

Not available

4

Gravely 046072

Adapter, .75 - .875
(Superseded to 07020000)

$

$

Not available

5

Gravely 070258

Adapter, Hydraulic
(Superseded to 07025800)

$14.99

$

In Stock, only 2 left!

0

6

Gravely 031884

Pad, Gas Tank
(Superseded to 03301900)

$

$

Not available

7

Gravely 091061

Hose, Hydraulic Cooler to Tank (02,04)
(Superseded to 09106100)

Note: (02,04)

$

$

Not available

7

Gravely 091109

Hose, Hydraulic Cooler to Tank (01,03)
(Superseded to 09110900)

Note: (01,03)

$

$

Not available

8

Gravely 039847

Hose, Hydraulic Valve to Tank
(Superseded to 08811300)

$40.99

$

Usually ships in 4-12 days

0

9

Gravely 051281

Hose, Oil Filter to Pump
(Superseded to 08845200)

$

$

Not available

10

Gravely 091060

Hose, Hydraulic Tank to Filter
(Superseded to 09106000)

$

$

Not available

11

Gravely 021799

Adapter- Tee .56-18
(Superseded to 07021500)

$31.99

$

Usually ships in 4-12 days

0

12

Gravely 053103

Hose, Pump to Tee
(Superseded to 08856400)

$46.99

$

Usually ships in 4-12 days

0

13

Gravely 051231

Assembly, Hose Wheel Motor to Pump
(Superseded to 58803800)

$152.99

$

Usually ships in 4-12 days

0

13

Gravely 051232

Assembly, Hose Wheel Motor to Pump
(Superseded to 58803900)

$171.99

$

Usually ships in 4-12 days

0

14

Gravely 018828

Adapter, 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

$25.99

$

Usually ships in 4-12 days

0

16

Gravely 050961

Adapter, Pipe .75-16 "O" Ring M37
(Superseded to 07018200)

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 050961

Adapter 0503-4-4
(Superseded to 07018200)

$7.49

$

Usually ships in 4-12 days

0

18

Gravely 053330

Variable Displacement Pump
(Superseded to 09279900)

$1263.99

$

Usually ships in 4-12 days

0

19

Gravely 419454

Nut, Lock Nylon .250-20
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

20

Gravely 180044

Bolt, Hex .25-20 x 2.00 Gr. 5
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 180123

Bolt, Hex .38-16 x 1.125

$

$

Not available

22

Gravely 064293

Washer, Flat Steel .406 x .812 x .065

$

$

Not available

23

Gravely 413534

Nut, Lock Cotter .375-16 Type N
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 053101

Cooler, Oil
(Superseded to 08856200)

$

$

Not available

25

Gravely 053110

Bracket, Oil cooler Kohler (02, 04)
(Superseded to 08857000)

Note: (02, 04)

$

$

Not available

25

Gravely 053109

Bracket, Oil Coller B&S (01,03)
(Superseded to 08856900)

Note: (01,03)

$

$

Not available

26

Gravely 180123

Bolt, Hex .38-16 x 1.125

$

$

Not available

27

Gravely 456004

Nut, Lock Nylon .375-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 051116

Arm Pump Actuating
(Superseded to 08880700)

$

$

Not available

29

Gravely 418934

Screw, Cap 10-24 x .75 Hex
(Superseded to 05932900)

$

$

Not available

30

Gravely 051130

Motor, Hydralic Wheel
(Superseded to 08864000)

$

$

Not available

31

Gravely 051106

Bracket, Wheel Motor
(Superseded to 08842400)

$14.99

$

Usually ships in 4-12 days

0

32

Gravely 120382

Washer, Lock .375 x .094 Medium
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

33

Gravely 180121

Bolt, Hex .380-16 x .875
(Superseded to 05932600)

$2.99

$

In Stock, only 1 left!

0

34

Gravely 180122

Bolt, Hex .38-16 x 1.00 Gr. 5
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 021247

Clamp, .88 Diameter Hose
(Superseded to 06923500)

$2.49

$

In Stock, Qty 6

0

36

Gravely 456004

Nut, Lock Nylon .375-16
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

37

Gravely 180087

Bolt, Hex .31-18 x 2.00 Gr. 5
(Superseded to 05901805)

$1.99

$

In Stock, Qty 12

0

38

Gravely 052653

Bushing, Steel .328 x .462 x 1.00
(Superseded to 08839600)

$

$

Not available

39

Gravely 419455

Nut, Lock Nylon .312-18
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

40

Gravely 180077

Bolt, Hex .31-18 x .75 Gr. 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 180018

Bolt, Hex .25-20 x .63
(Superseded to 05932000)

$2.49

$

In Stock, only 1 left!

0

42

Gravely 051143

Assembly, Head
(Superseded to 08157900)

$

$

Not available

43

Gravely 050968

Element
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

44

Gravely 051142

Assembly, Spin-on Lube
(Superseded to 08844700)

$

$

Not available

45

Gravely 051889

Pin, Dowel
(Superseded to 05808000)

$6.49

$

Usually ships in 4-12 days

0
