991004 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 - 000215) Fuel And Exhaust System - 16 And 18 H.P. Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

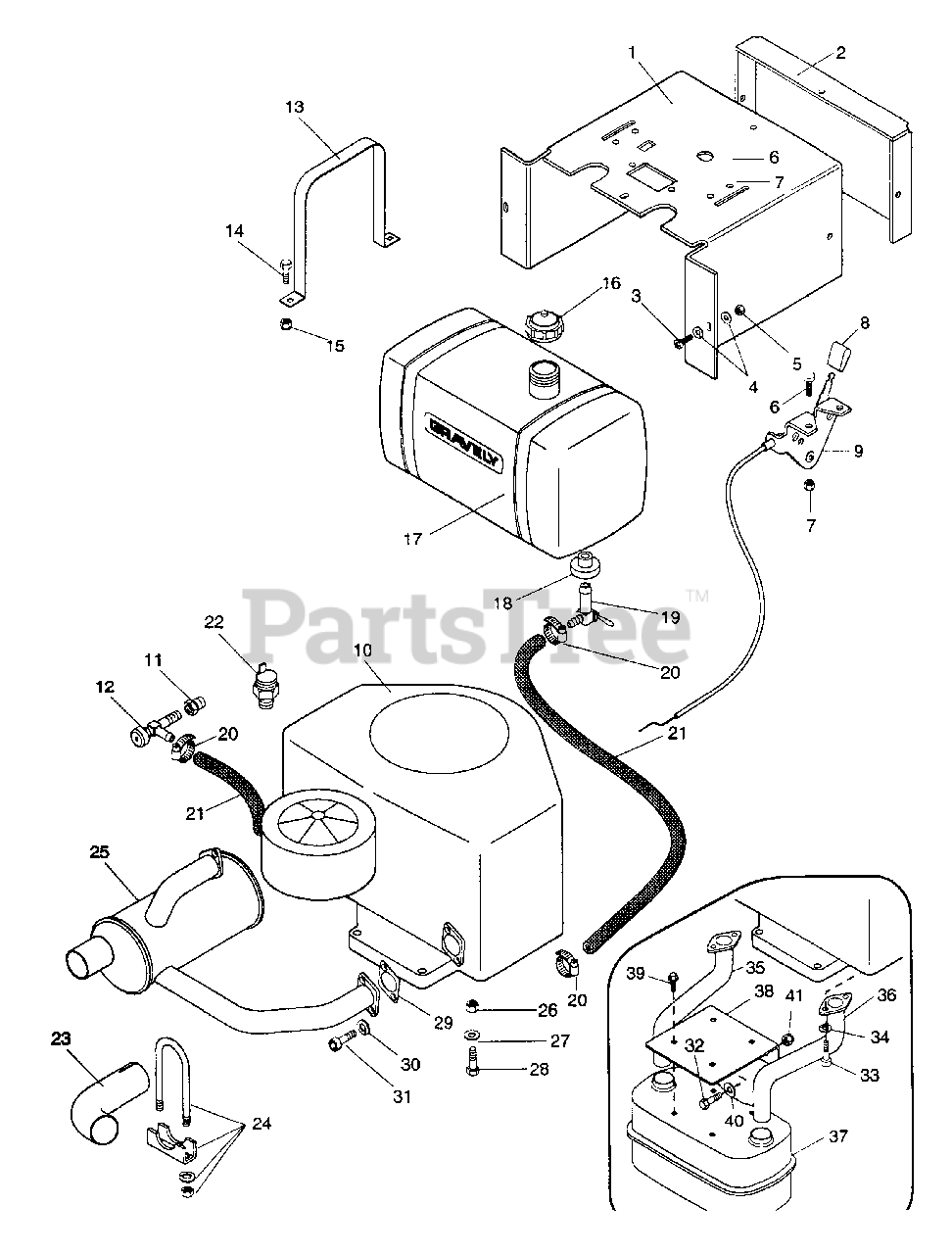

Fuel And Exhaust System - 16 And 18 H.P. Parts Diagram

  • Title

1

Gravely 091022

Panel, Silkscreen

$

$

Not available

2

Gravely 091067

Cover, Instrument Panel
(Superseded to 09106700)

$

$

Not available

3

Gravely 160541

Screw, Machine .25-20 Pan Head
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

4

Gravely 050365

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 419454

Nut, Lock Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

6

Gravely 160046

Screw, Machine 10-32 x .50
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely 065028

Nut, Lock 10-32 Nylon
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 044589

Knob
(Superseded to 07501900)

$

$

Not available

9

Gravely 053385

Assembly, Choke Control
(Superseded to 06923400)

$

$

Not available

9

Gravely 053237

Assembly, Throttle Control
(Superseded to 06923300)

$

$

Not available

10

Gravely 043315

Engine, 18 HP. Magnum, PS-58550 (02, 04)

Note: (02, 04)

$

$

Not available

10

Gravely 082326

Engine, 16 HP. B&S (01,03)

Note: (01,03)

$

$

Not available

11

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

13

Gravely 049338

Strap, Fuel Tank
(Superseded to 08835900)

$90.99

$

In Stock, only 1 left!

0

14

Gravely 180018

Bolt, Hex .25-20 x .63
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

15

Gravely 419454

Nut, Lock Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

16

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

17

Gravely 049283

Tank, Fuel
(Superseded to 08867900)

$164.99

$

Usually ships in 4-12 days

0

18

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 049281

Valve, Ball Shut off

$

$

Not available

20

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

21

Gravely 021134

Gas Line, Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 041937

Switch, Pressure
(Superseded to 08939200)

$22.99

$

In Stock, only 2 left!

0

23

Gravely 091089

Deflector, Exhaust (02, 04)
(Superseded to 09108900)

Note: (02, 04)

$34.99

$

Usually ships in 4-12 days

0

24

Gravely 041522

Clamp U 1.75 (02,04)
(Superseded to 06926400)

Note: (02,04)

$

$

Not available

25

Gravely 044389

Muffler (02,04)
(Superseded to 08824600)

Note: (02,04)

$688.99

$

In Stock, only 1 left!

0

26

Gravely 419455

Nut, Lock Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

27

Gravely 120393

Washer, Flat Steel .344 x .66 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

28

Gravely 180083

Bolt, Hex .31-18 x 1.50 Gr. 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

29

Gravely 044390

Gasket, Exhaust (02,04)
(Superseded to 08824700)

Note: (02,04)

$10.99

$

In Stock, only 2 left!

0

30

Gravely 120214

Washer, Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 421705

Screw, Cap .31-18 x .75
(Superseded to 05901827)

$2.99

$

In Stock, Qty 11

0

32

Gravely 180126

Bolt-Hex .38-16 x 1.50 Gr. 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 6

0

33

Gravely 051666

Screw, Socket head M8 x 1.25 x 20mm
(Superseded to 05931800)

$2.49

$

Usually ships in 4-12 days

0

34

Gravely 120214

Washer, Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 091113

Headpipe, Nelson Q-33477, 16 HP B&S
(Superseded to 09111300)

$

$

Not available

36

Gravely 091114

Headpipe, Nelson Q-33476, 16 HP B&S
(Superseded to 09111400)

$

$

Not available

37

Gravely 091112

Muffler, Nelson # 24392-N
(Superseded to 09111200)

$

$

Not available

38

Gravely 091111

Bracket, Muffler, B&S
(Superseded to 09111100)

$

$

Not available

39

Gravely 074100

Screw, Tapping 12-24 x .75
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

40

Gravely 064008

Washer, Flat Steel .438 x 1.0 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 4 left!

0

41

Gravely 456004

Nut, Lock Nylon .375-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0
