991004 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 - 000215) PTO Clutch Linkage Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

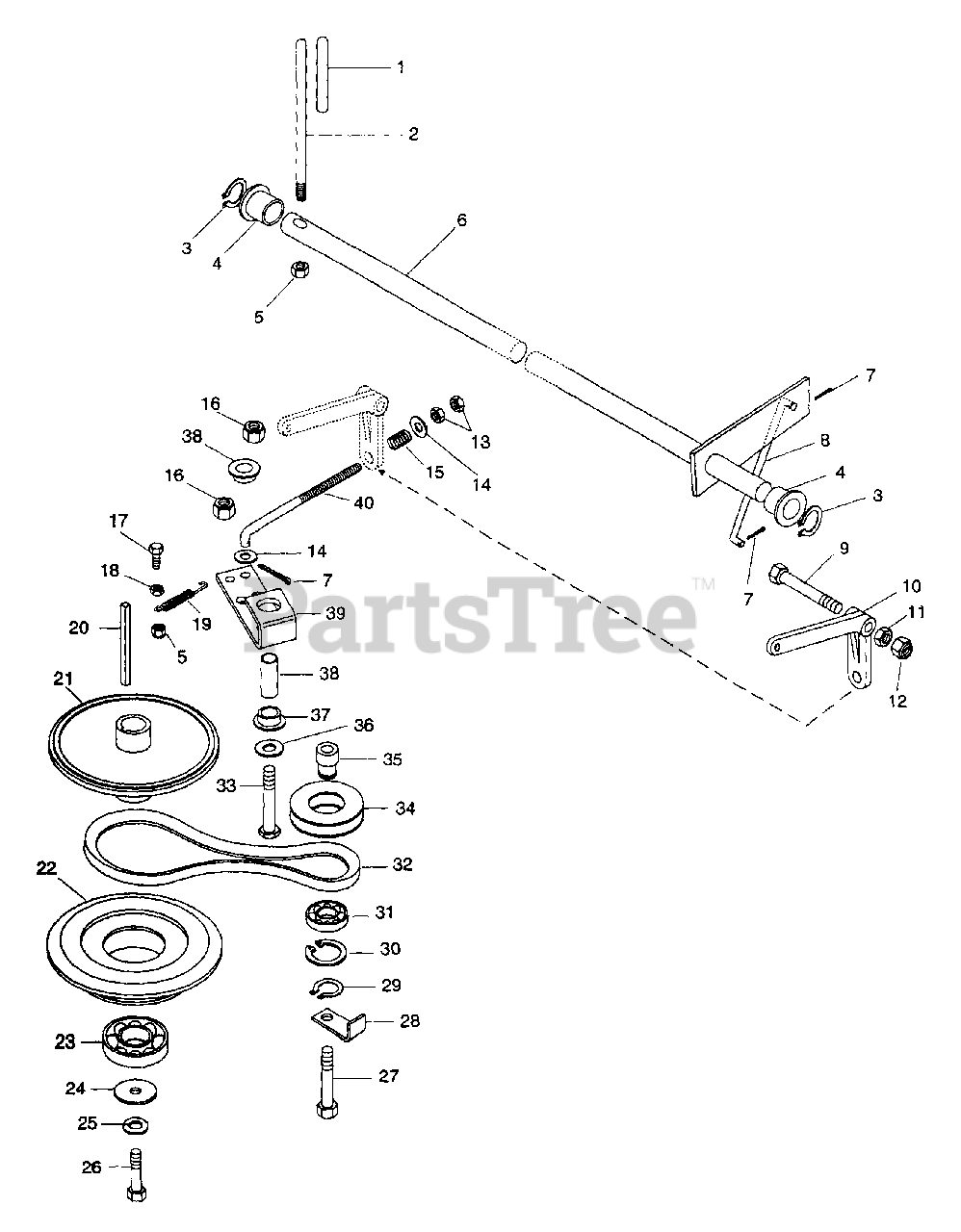

PTO Clutch Linkage Parts Diagram

  • Title

1

Gravely 043197

Grip, Hand Clutch Lever
(Superseded to 07528300)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 091045

Lever, PTO Actuating
(Superseded to 09104500)

$22.99

$

Usually ships in 4-12 days

0

3

Gravely 057092

Ring, Retaining-External .625 x .050
(Superseded to 05709200)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 045787

Bushing, Flange .630 x 1.00 x .625 Nylon
(Superseded to 05517400)

$6.99

$

In Stock, only 2 left!

0

5

Gravely 419455

Nut, Lock Nylon .312 - 18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

6

Gravely 091042

Weldment, Pto Actuating Shaft
(Superseded to 09104200)

$

$

Not available

7

Gravely 121222

Pin, Cotter .09 x .75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 5

0

8

Gravely 091046

Rod, Pto Actuating
(Superseded to 09104600)

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 180183

Bolt, Hex .50-13 x 2.25 Gr. 5
(Superseded to 05901835)

$3.49

$

In Stock, Qty 9

0

10

Gravely 051139

Lever, Pro Clutch
(Superseded to 08844600)

$

$

Not available

11

Gravely 120238

Nut, Jam .50-13
(Superseded to 06500911)

$1.49

$

In Stock, Qty 18

0

12

Gravely 414074

Nut, Lock .50-13 Hex Type N
(Superseded to 06500827)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 120377

Nut, Hex .375-16
(Superseded to 06500917)

$0.99

$

In Stock, only 2 left!

0

14

Gravely 064293

Washer, Flat Steel .406 x .812 x .065

$

$

Not available

15

Gravely 011779

Spring, Compression .188 x 1.66 x 2.00
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

16

Gravely 435507

Nut, Lock Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 180079

Bolt, Hex .31-18 x 1.00 Gr. 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 11

0

18

Gravely 120376

Nut, Hex .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

19

Gravely 034385

Spring, Tension .061 x .50 x 3.5 Wld 4
(Superseded to 08331900)

$30.99

$

In Stock, only 1 left!

0

20

Gravely 066066

Key, Square .25 x 3.635 x .25
(Superseded to 06606600)

$

$

Not available

21

Gravely 051136

Hub-Pto Clutch
(Superseded to 08844400)

$

$

Not available

22

Gravely 041353

Sheave, Mower Clutch
(Superseded to 08814000)

$339.99

$

Usually ships in 4-12 days

0

23

Gravely 035330

Bearing, Ball 1.57 x 3.15 x .71
(Superseded to 05420900)

$193.99

$

In Stock, only 1 left!

0

24

Gravely 044379

Washer, Special .469 x 2.00 x .250
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

25

Gravely 120383

Washer, Lock .44 Reg.
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

26

Gravely 181676

Bolt, Hex .44-20 x 2.50
(Superseded to 05964600)

$2.49

$

In Stock, only 1 left!

0

27

Gravely 180185

Bolt, Hex .50-13 x 2.50 Gr. 5
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

28

Gravely 039330

Guard, Belt
(Superseded to 08810800)

$55.99

$

Usually ships in 4-12 days

0

29

Gravely 039331

Ring, Retaining
(Superseded to 00102214)

$3.49

$

In Stock, only 1 left!

0

30

Gravely 018960

Ring, Retaining Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 038898

Bearing, Ball 1.85 x .787 x .55
(Superseded to 05425100)

$51.99

$

In Stock, only 2 left!

0

32

Gravely 072250

V-Belt 13.8 x .531
(Superseded to 07225000)

$34.99

$

In Stock, only 1 left!

0

33

Gravely 041333

Bolt, Hex 1/2-13 x 2.75
(Superseded to 08813700)

$

$

Not available

34

Gravely 038896

Sheave, Idler
(Superseded to 08744300)

$129.99

$

Usually ships in 4-12 days

0

35

Gravely 039327

Bushing, Flange .515 x .787 x 1.41
(Superseded to 08810700)

$102.99

$

Usually ships in 4-12 days

0

36

Gravely 120396

Washer, Flat Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 010174

Bushing, Flang .762 x 1.0 x .580 x 1.48 Nylon
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

38

Gravely 041992

Bushing, Steel .560 x .745 x 2.04
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

39

Gravely 051887

Arm, Idler Pivot
(Superseded to 08846200)

$

$

Not available

40

Gravely 041334

Rod, Pto Clutch Actuating
(Superseded to 08876200)

$200.99

$

In Stock, only 1 left!

0
