991004 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000216 & Above) 50" MOWER DRIVE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

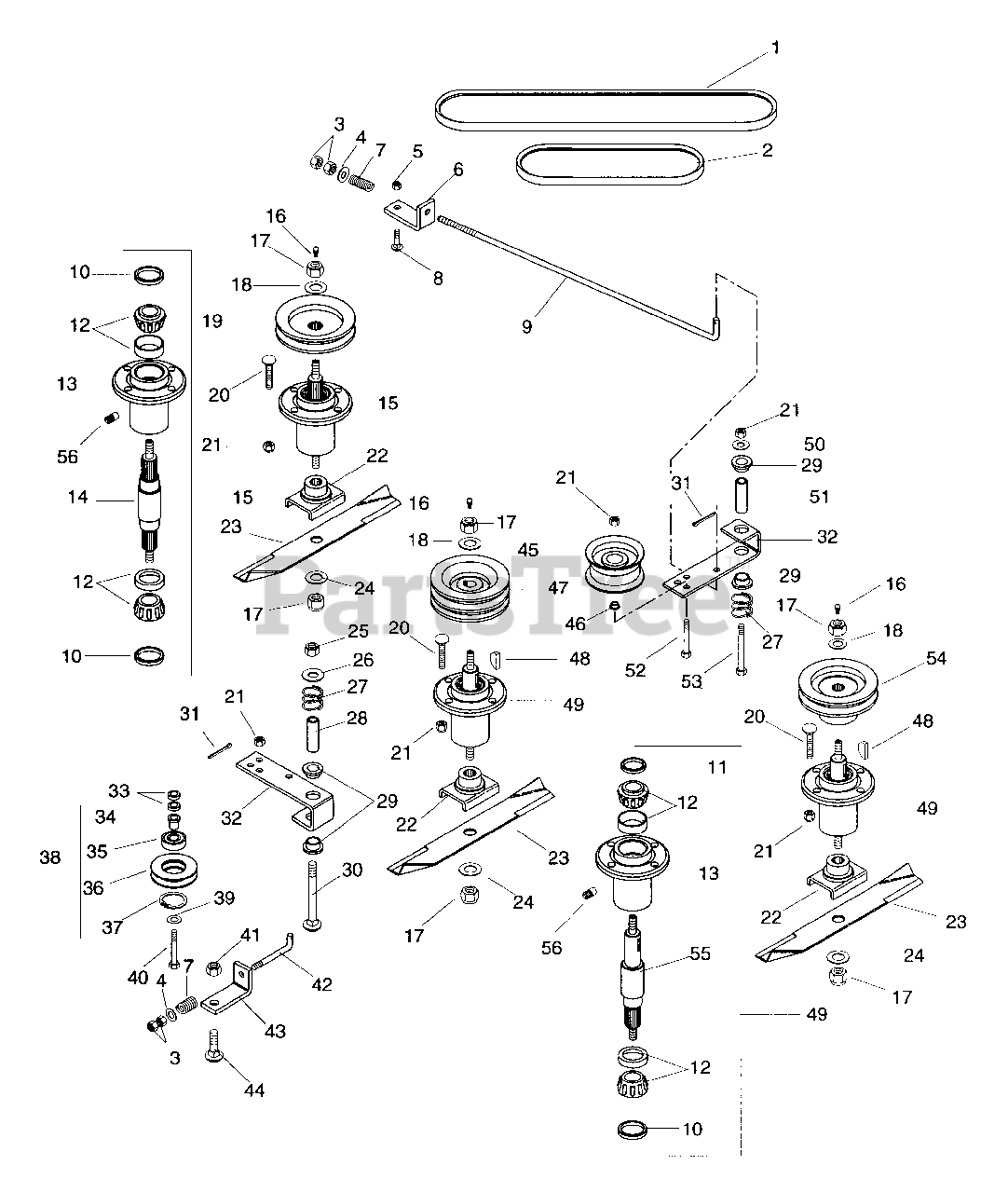

50" MOWER DRIVE Parts Diagram

  • Title

1

72242

Belt, Pro Mwr

$

$

Not available

2

Gravely 034944

Belt, Mower A44
(Superseded to 07220000)

$29.99

$

In Stock, only 2 left!

0

3

Gravely 120377

Nut Hex .375 - 16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 6

0

4

Gravely 120392

Wshr - Fl - Stl .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 10

0

5

Gravely 419455

Nut - Lk - Nyl .312 - 18 Pl
(Superseded to 06500820)

$1.49

$

In Stock, Qty 14

0

6

Gravely 034287

Brkt, Belt Tensioner
(Superseded to 08802700)

$35.99

$

Usually ships in 4-12 days

0

7

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$16.99

$

In Stock, only 2 left!

0

8

Gravely 126358

Bit, Carriage 5/16 - 18 x 1.0
(Superseded to 06200231)

$1.99

$

In Stock, Qty 6

0

9

Gravely 031913

Rod, Idler L.H.
(Superseded to 08654100)

$

$

Not available

10

56130

Seal 1.987 x 1.375 x .313

$

$

Not available

11

56114

Seal 1.987 x 1.500 x .313

$

$

Not available

12

Gravely 038199

Asm, Bearing Cup & Cone
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

13

88945

Bearing Housing

$

$

Not available

14

Gravely 021216

Shft, Spindle
(Superseded to 58802800)

$87.99

$

In Stock, only 2 left!

0

15

Gravely 588018

Service Kit Spindle Assembly

$

$

Not available

16

Gravely 411010

Ftg, Lube 1/8
(Superseded to 07012500)

$4.99

$

In Stock, only 2 left!

0

17

Gravely 418692

Nut, Lk 5/8 - 11 Hex W/Insr
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 033845

Wshr - Fl - Stl .687 x 1.312 x .135
(Superseded to 06427400)

$2.99

$

In Stock, Qty 7

0

19

88949

Sheave

$

$

Not available

20

Gravely 126406

Blt - Rdhdsqnk .38 - 16 x 1.375
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

21

Gravely 456004

Nut - Lk - Nyl .375 - 16 Pl
(Superseded to 06500831)

$3.49

$

In Stock, only 3 left!

0

22

87987

Weldment Blade Cradle

$

$

Not available

23

Gravely 046998

Bld, 50 Inch Mower
(Superseded to 08779200)

$26.99

$

In Stock, only 3 left!

0

24

Gravely 131016

Wshr - Fl - Stl .656 x 1.312 x .095 Pl
(Superseded to 06401118)

$2.99

$

In Stock, Qty 19

0

25

Gravely 414074

Nut - Lk .50 - 13 Hex Type N
(Superseded to 06500827)

$4.99

$

In Stock, only 3 left!

0

26

Gravely 415543

Wshr - Fl - Stl .531 x 1.250 x .100
(Superseded to 06441000)

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 020444

Sg - Comp
(Superseded to 08329100)

$14.99

$

In Stock, only 4 left!

0

28

Gravely 034119

Bush., S .560 x .750 x 2.44 St
(Superseded to 08820500)

$19.99

$

In Stock, only 2 left!

0

29

Gravely 049669

Bshg - Flg .762 x 1.0 x .580 x 1.48 NY

$

$

Not available

30

Gravely 126803

Blt - Rdhdsqnk .50 - 13 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

31

Gravely 121222

Pin - Cotr .09 x .75 Pl
(Superseded to 06706900)

$0.99

$

In Stock, Qty 6

0

32

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

33

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$6.49

$

In Stock, only 3 left!

0

34

Gravely 038897

Bshg - Flg .786 x 1.0 x .79
(Superseded to 05521500)

$22.99

$

Usually ships in 4-12 days

0

35

Gravely 038898

Brg - Ball 1.85 x .787 x .55
(Superseded to 05425100)

$

$

Not available

36

Gravely 038896

Sheave, idler
(Superseded to 08744300)

$131.99

$

Usually ships in 4-12 days

0

37

Gravely 018960

Rg - Rtng - Int 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 038900

Asm, Idler Sheave
(Superseded to 08930300)

$247.99

$

Usually ships in 4-12 days

0

39

Gravely 446470

Washer, Flt .375 x 1.125 x .065
(Superseded to 06401139)

$2.99

$

In Stock, Qty 17

0

40

Gravely 180130

Blt - Hex .38 - 16 x 2.00 Pl Gr 5
(Superseded to 05901718)

$3.49

$

In Stock, only 3 left!

0

41

Gravely 435507

Nut - Lk Nyl .50 - 13 Pl
(Superseded to 06500830)

$2.99

$

In Stock, Qty 9

0

42

Gravely 038714

Rod, Idler
(Superseded to 08876000)

$

$

Not available

43

Gravely 038713

Brkt, Belt Tensioner
(Superseded to 08928800)

$

$

Not available

44

Gravely 120917

Blt - Rdhdsqnk .50 - 13 x 1.50
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

45

Gravely 034286

Idler - Flat 4 - .687 x .38
(Superseded to 07327800)

$91.99

$

In Stock, Qty 13

0

46

Gravely 024815

Bshg - Flg .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.99

$

In Stock, only 2 left!

0

47

Gravely 08894800

Sheave
(Superseded to 08895900)

$

$

Not available

48

Gravely 124553

Key, Wdrf 1/4 x 1 Hrd #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

49

Gravely 588017

Service Kit Spindle Assembly

$

$

Not available

50

Gravely 120388

Wshr - Fl - Stl .438 x 1.000 x .083
(Superseded to 06401008)

$1.99

$

Usually ships in 4-12 days

0

51

Gravely 034938

Bush., S .437 x .750 x 2.44 St
(Superseded to 08818500)

$

$

Not available

52

Gravely 180132

Blt - Hex .38 - 16 x 2.25 Gr 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 8

0

53

Gravely 189304

Blt - Hex .38 - 16 x 3.25 Pl Gr 5
(Superseded to 05901817)

$4.99

$

In Stock, only 1 left!

0

54

88950

Sheave

$

$

Not available

55

Gravely 034603

Shft, Spindle
(Superseded to 58802900)

$128.99

$

In Stock, only 2 left!

0

56

88968

Relief Fitting

$

$

Not available
