991004 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000216 & Above)

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

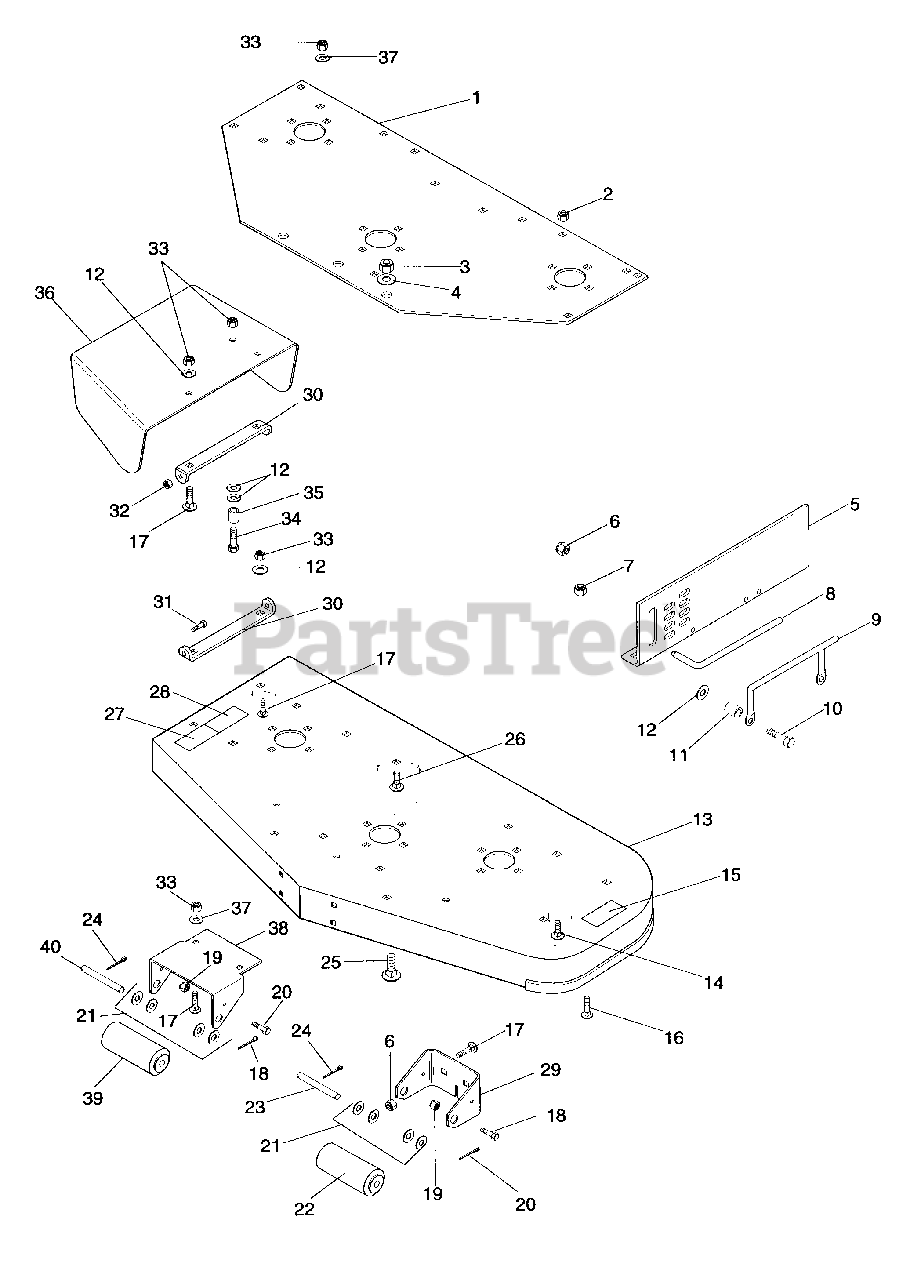

991004 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000216 & Above) > Parts Diagrams (15) > 50" MOWER FRAME 2

  • Title
052760

1

Plt,Support

Part# 052760 (Superseded to 08850153)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $187.44

419455

2

Nut - Lk - Nyl .312 - 18 Pl

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

435507

3

Nut - Lk - Nyl .50 - 13 Pl

Part# 435507 (Superseded to 06540600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

415543

4

Wshr - FL - Stl .531 x 1.250 x .100

Part# 415543 (Superseded to 06441000)

OEM Warranty Repair Part for Gravely

Not available

91055

5

Brkt, Mwr Side Sprt L.N.

Part# 91055

Not available

91054

5

Brkt, Mwr Side Sprt R.H.

Part# 91054

Not available

456004

6

Nut - Lk - Nyl.375-16 PL

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

419455

7

Nut - Lk - Nyl .312 - 18 PL

Part# 419455 (Superseded to 06530200)

OEM Warranty Repair Part for Gravely

Not available

038514

8

Pin, Mower Locking

Part# 038514 (Superseded to 08875900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $12.24

044507

9

Handle

Part# 044507 (Superseded to 08878000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $42.99

180128

10

Blt - Hex .38 - 16 x 1.75 Pl Gr 5

Part# 180128 (Superseded to 05958500)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

043922

11

Bushing

Part# 043922 (Superseded to 08553700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

120394

12

Wshr - Fl - Stl .406 x .812 x .065 Pl

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

052750

13

Wldmt, 50" Mwr Fabricated

Part# 052750 (Superseded to 08849100)

OEM Warranty Repair Part for Gravely

Not available

126211

14

Blt, 5/16 - 18 x .625 Rdhdsqnk

Part# 126211 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

53501

15

Decal, Danger Foot

Part# 53501

Not available

126358

16

Blt, Carriage 5/16 - 18 x 1.0

Part# 126358 (Superseded to 06216100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $2.18

120915

17

Blt - Rdhdsqnk .38 - 16 x 1.0 Pl

Part# 120915

OEM Warranty Repair Part for Gravely

Not available

180020

18

Blt - Hex .25-20 x.75 Pl Gr 5

Part# 180020 (Superseded to 05946800)

OEM Warranty Repair Part for Gravely

Not available

419454

19

Nut - Lk Nyl .250 - 20 Pl

Part# 419454 (Superseded to 06531000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

103422

20

Pin - Cotr .250 x 2.00

Part# 103422 (Superseded to 06713100)

OEM Warranty Repair Part for Gravely

Not available

131016

21

Wshr - Fl - Stl .656 x 1.312 x .095 Pl

Part# 131016 (Superseded to 06442800)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

015351

22

Rlr, Gage

Part# 015351 (Superseded to 07520100)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

045211

23

Rod

Part# 045211 (Superseded to 08966900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

179128

24

Pin - Cotr .25 x 1.00

Part# 179128 (Superseded to 06713000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

126475

25

Bit - Rdhdsqnk .50 - 13 x 1.00

Part# 126475 (Superseded to 06224600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

126227

26

Blt, Carriage 3/8 - 16 x .75

Part# 126227 (Superseded to 06223900)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

53502

27

Decal, Warning Eye

Part# 53502

Not available

53503

28

Decal, Danger Hand

Part# 53503

Not available

045072

29

Brkt, Roller

Part# 045072 (Superseded to 08962600)

OEM Warranty Repair Part for Gravely

Not available

017999

30

Brkt, Chute

Part# 017999 (Superseded to 08727600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

180021

31

Blt - Hex .25 - 20 x .875

Part# 180021 (Superseded to 05934000)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

103422

32

Nut - Lk - Nyl .250 - 20 Pl

Part# 103422 (Superseded to 06713100)

OEM Warranty Repair Part for Gravely

Not available

456004

33

Nut - Lk - Nyl .375 - 16 Pl

Part# 456004 (Superseded to 06535800)

OEM Warranty Repair Part for Gravely

Not available

180126

34

Blt - Hex .38 - 16 x 1.50 Pl Gr 5

Part# 180126 (Superseded to 05957900)

OEM Warranty Repair Part for Gravely

Not available

038696

35

Bshg - Slv .407 x .625 x .750 Pl

Part# 038696 (Superseded to 05525700)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $6.65

052805

36

Shield, Sfty Ext 50" Mwr

Part# 052805 (Superseded to 08850600)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $156.46

120394

37

Wshr - Fl - Stl .406 x .812 x .065

Part# 120394 (Superseded to 06436200)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

07852100

Width Of Cut Decal

Part# 07852100

Note: Not shown

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07893700

Decal, Warning

Part# 07893700

Note: Not shown

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

C052796

38

Brkt, Gage Roller

Part# C052796

OEM Warranty Repair Part for Gravely

Not available

C031390

39

Rlr, Gage

Part# C031390

OEM Warranty Repair Part for Gravely

Not available

C024795

40

Shft, Center Roller

Part# C024795

OEM Warranty Repair Part for Gravely

Not available
