991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 40" MOWER FRAME 1 Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

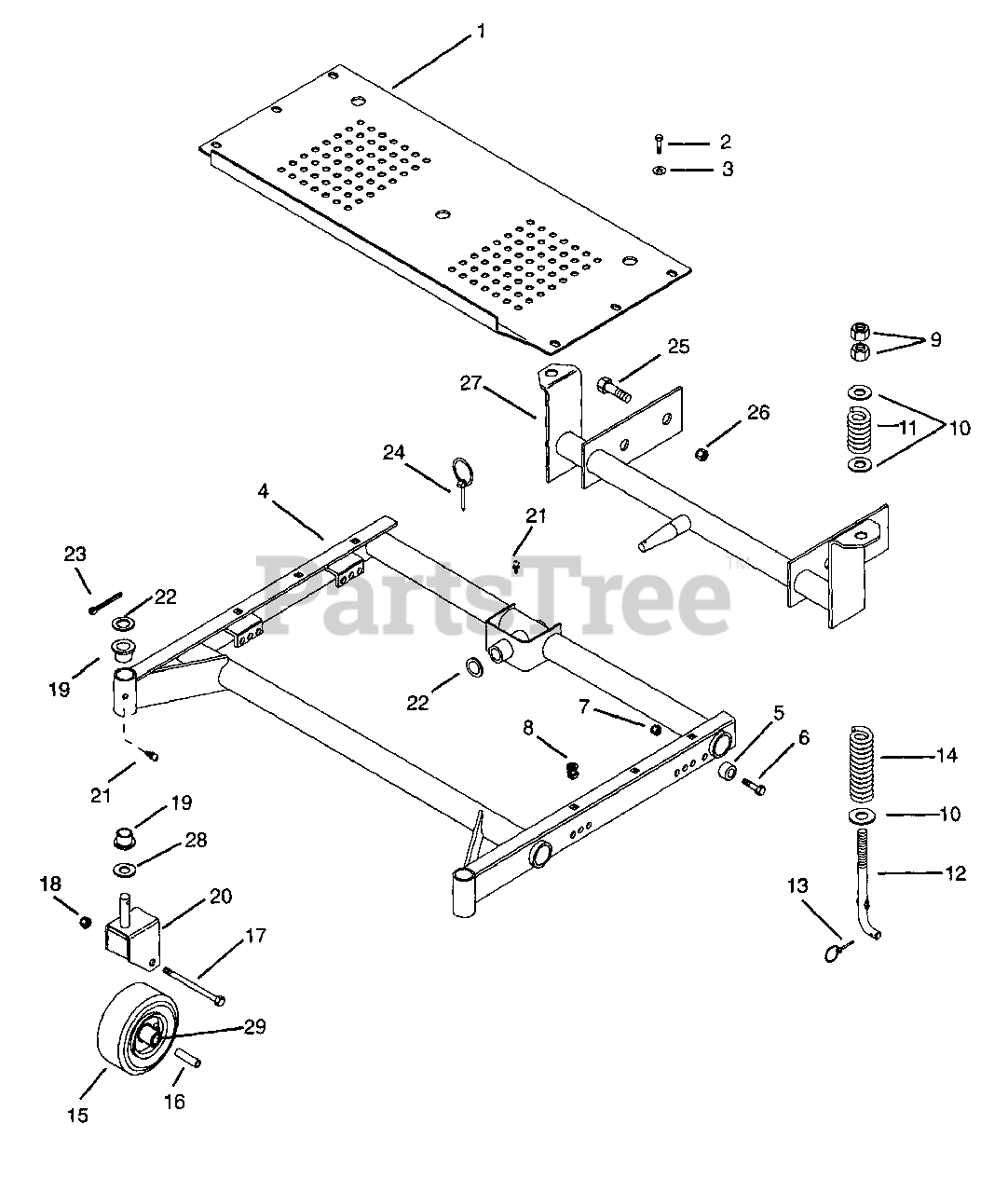

40" MOWER FRAME 1 Parts Diagram

  • Title

1

Gravely 09109500

Footboard

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

3

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

4

Gravely 09114000

Weldment, Mower Frame 40" 3 Spindle

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 050396

Bushing .391 x .626 x .670
(Superseded to 08814100)

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

7

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

8

Gravely 06527400

Clip, U-Type

$

$

Not available

9

Gravely 120378

Nut .50-13
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0

10

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, Qty 5

0

12

Gravely 035690

Rod, Height Adjuster
(Superseded to 08599000)

$93.99

$

Usually ships in 4-12 days

0

13

Gravely 023468

Pin-Klik 1.000 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 08316500

Spring Compression .095 x .75 x 6.25

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 053180

Wheel, Gauge 11 x 4-4
(Superseded to 09105800)

$136.99

$

Usually ships in 4-12 days

0

16

Gravely 091052000

Bushing, Caster Fork

$

$

Not available

17

Gravely 189315

Bolt-Hex .50-13 x 6.50
(Superseded to 05901907)

$7.99

$

In Stock, Qty 18

0

18

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$10.99

$

In Stock, Qty 20+

0

20

Gravely 09114200

Weldment, Caster Fork

$256.99

$

Usually ships in 4-12 days

0

21

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

Washer-Hardened-Thrust 1.002 x 1.552 x .030
(Superseded to 06435300)

$4.99

$

In Stock, only 4 left!

0

23

Gravely 06702100

Pin-Cotter .12 x 1.25
(Superseded to 06714300)

$1.99

$

In Stock, only 1 left!

0

24

Gravely 011902

Pin-Klik .25 x 1.75
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

25

Gravely 271547

Bolt-Hex .62-11 x 1.50
(Superseded to 05968700)

$3.99

$

Usually ships in 4-12 days

0

26

Gravely 418692

Nut, Locking 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, Qty 14

0

27

Gravely 09104900

Weldment, Mower Frame Mounting

$

$

Not available

28

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

29

Gravely 05408900

Bearing-Ball-Flange .752 x 1.50 x .50

$18.99

$

In Stock, Qty 7

0
