991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 40" MOWER FRAME 1 Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

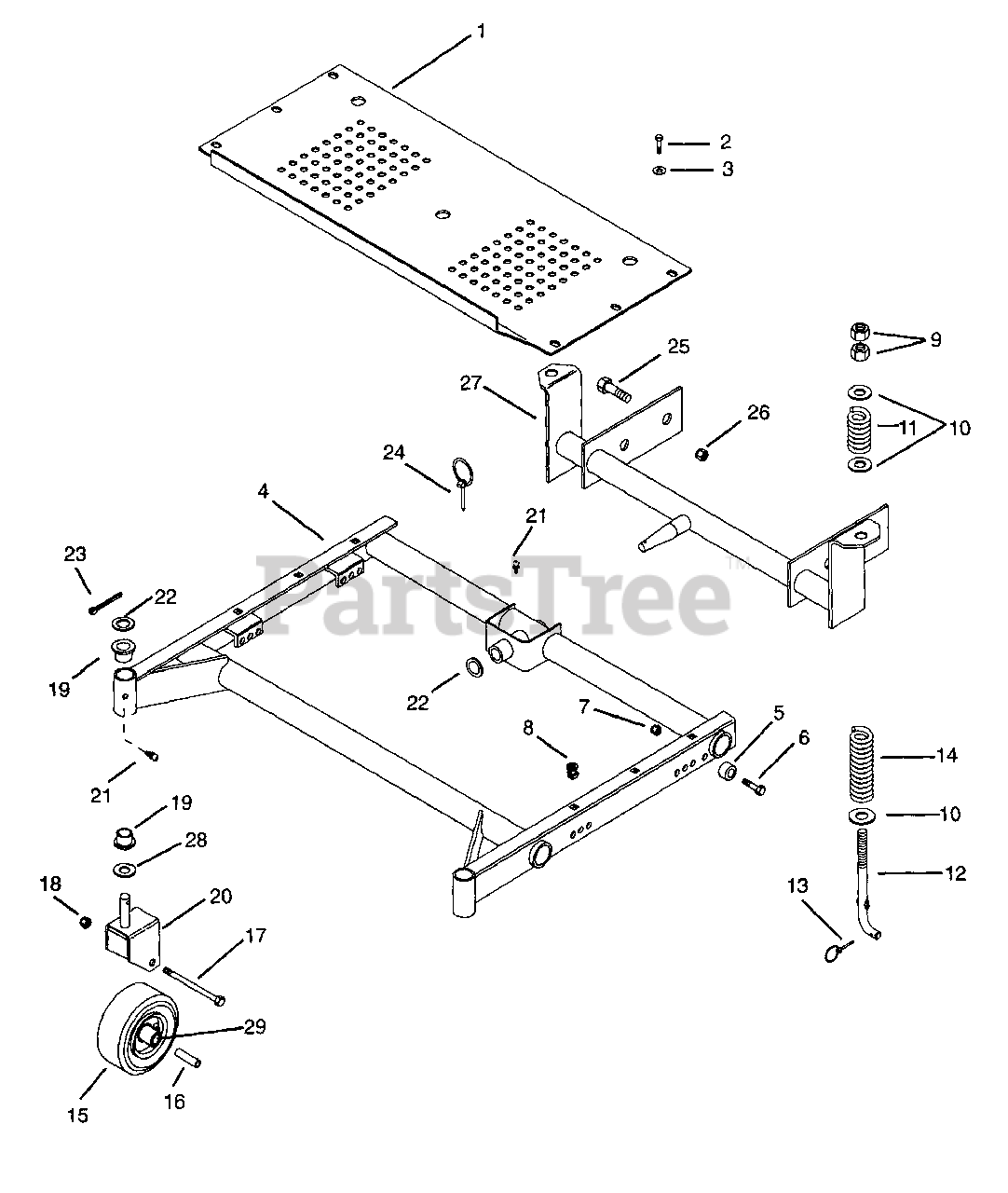

40" MOWER FRAME 1 Parts Diagram

  • Title

1

Gravely 09109500

FOOTBOARD

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

3

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09114000

SWITCH PLATE

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 180126

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

7

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

8

Gravely 06527400

CLIP,U-TYPE EATON #C17453-1420

$

$

Not available

9

Gravely 120378

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 120396

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

12

Gravely 035690

ROD,HEIGHT ADJ
(Superseded to 08599000)

$

$

Not available

13

Gravely 023468

PIN-KLIK 1.000X.188X1.25 YWZC
(Superseded to 07014500)

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 08316500

SG-COMP .095X.75X6.25 WLD 35

$9.99

$

Usually ships in 4-12 days

0

15

Gravely 053180

WHL,GA 11X4-4
(Superseded to 09105800)

$150.99

$

Usually ships in 4-12 days

0

16

Gravely 091052000

Bushing, Caster Fork

$

$

Not available

17

Gravely 189315

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

18

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

20

Gravely 09114200

WMT, CASTER FORK

$

$

Not available

21

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

22

Gravely 019340

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

23

Gravely 06702100

PIN-COTR .12X1.50 PL
(Superseded to 06714300)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 011902

PIN-KLIK .25X1.75
(Superseded to 07015400)

$6.49

$

Usually ships in 4-12 days

0

25

Gravely 271547

BLT-HEX .62-11X1.50 GR5 YWZC
(Superseded to 05968700)

$3.99

$

In Stock, Qty 9

0

26

Gravely 418692

NUT-LK-NYL .625-11 YWZC
(Superseded to 06540700)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 09104900

WLDMT,MWR FRAME MTG

$

$

Not available

28

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

29

Gravely 05408900

BRG-BALL .752X1.50X.50

$20.99

$

In Stock, only 3 left!

0
