991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 40" MOWER FRAME 2 Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

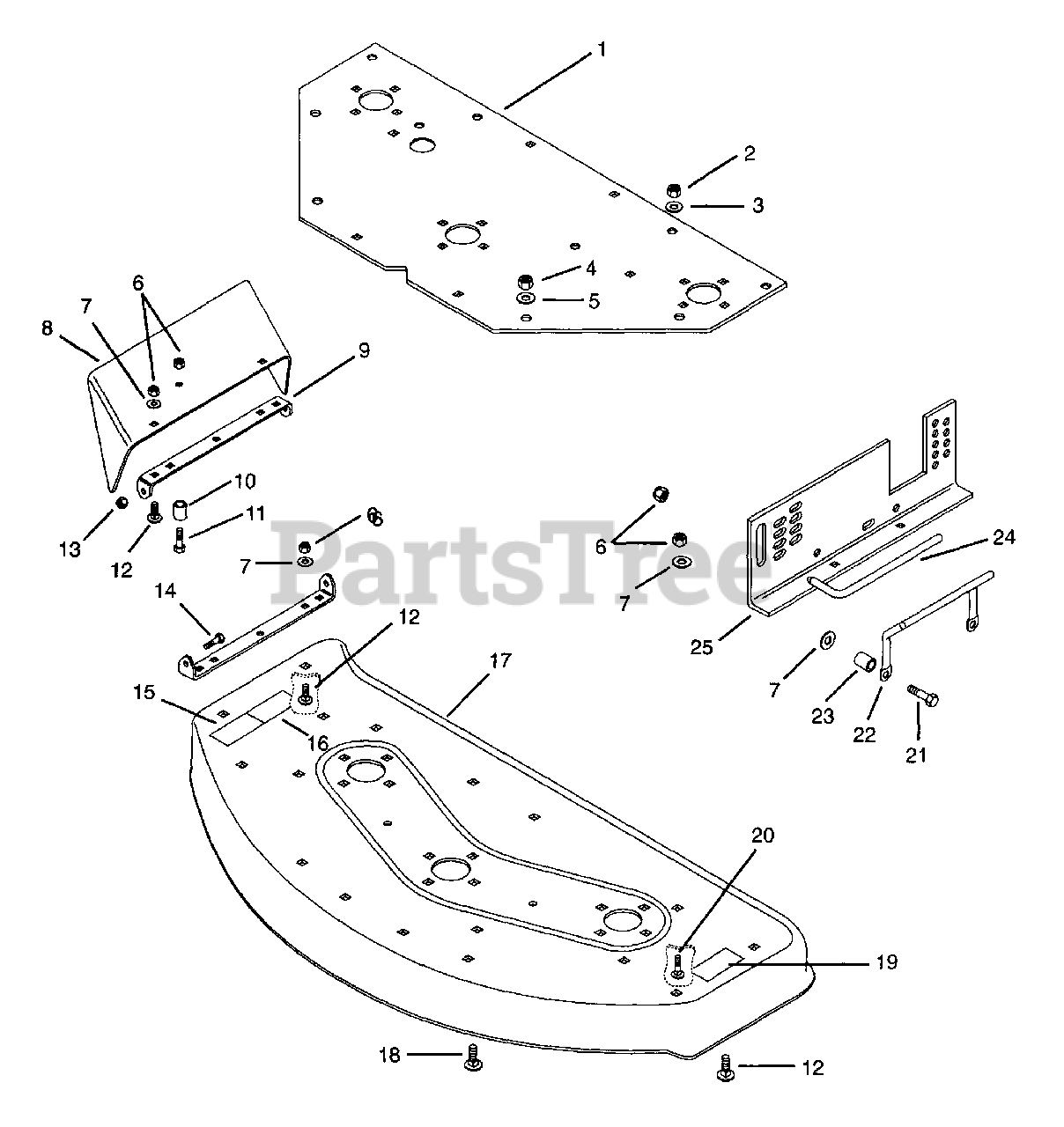

40" MOWER FRAME 2 Parts Diagram

  • Title

1

Gravely 040531

Plate, Support
(Superseded to 08542100)

$175.99

$

Usually ships in 4-12 days

0

2

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 06421400

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 15

0

6

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

7

Gravely 120344

Washer-Flat-Steel .406 x .812 x .065

$

$

Not available

8

Gravely 038697

Chute, 40" Flip-Up
(Superseded to 03499000)

$

$

Not available

9

Gravely 045664

Bracket, Chute 40" Mower
(Superseded to 03499500)

$29.99

$

Usually ships in 4-12 days

0

10

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

11

Gravely 180126

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

12

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

13

Gravely 103422

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 180021

Bolt-Hex .25-20 x .875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

15

Gravely 05350200

Decal, Warning Eye

$31.99

$

Usually ships in 4-12 days

0

16

Gravely 05350300

Decal, Danger Hand

$31.99

$

Usually ships in 4-12 days

0

17

Gravely 09109900

Weldment, 40" Deck 3-Spindle

$148.99

$

Usually ships in 4-12 days

0

18

Gravely 126475

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

19

Gravely 05350100

Decal, Danger Foot

$11.99

$

Usually ships in 4-12 days

0

20

Gravely 126216

Bolt-Round Head Square Neck .31-18 x .75

$

$

Not available

21

Gravely 180128

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

22

Gravely 044507

Handle
(Superseded to 08878000)

$59.99

$

In Stock, only 1 left!

0

23

Gravely 043922

Bushing
(Superseded to 08553700)

$5.99

$

In Stock, Qty 14

0

24

Gravely 038514

Pin, Mower Locking
(Superseded to 08875900)

$17.99

$

In Stock, only 4 left!

0

25

Gravely 09109200

Bracket, Mower Side Support (Left Hand)
(Superseded to 59100500)

Note: (Left Hand)

$

$

Not available

25

Gravely 09109100

Bracket, Mower Side Support (Right Hand)
(Superseded to 59100500)

Note: (Right Hand)

$

$

Not available
