991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) ENGINE AND EXHAUST Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

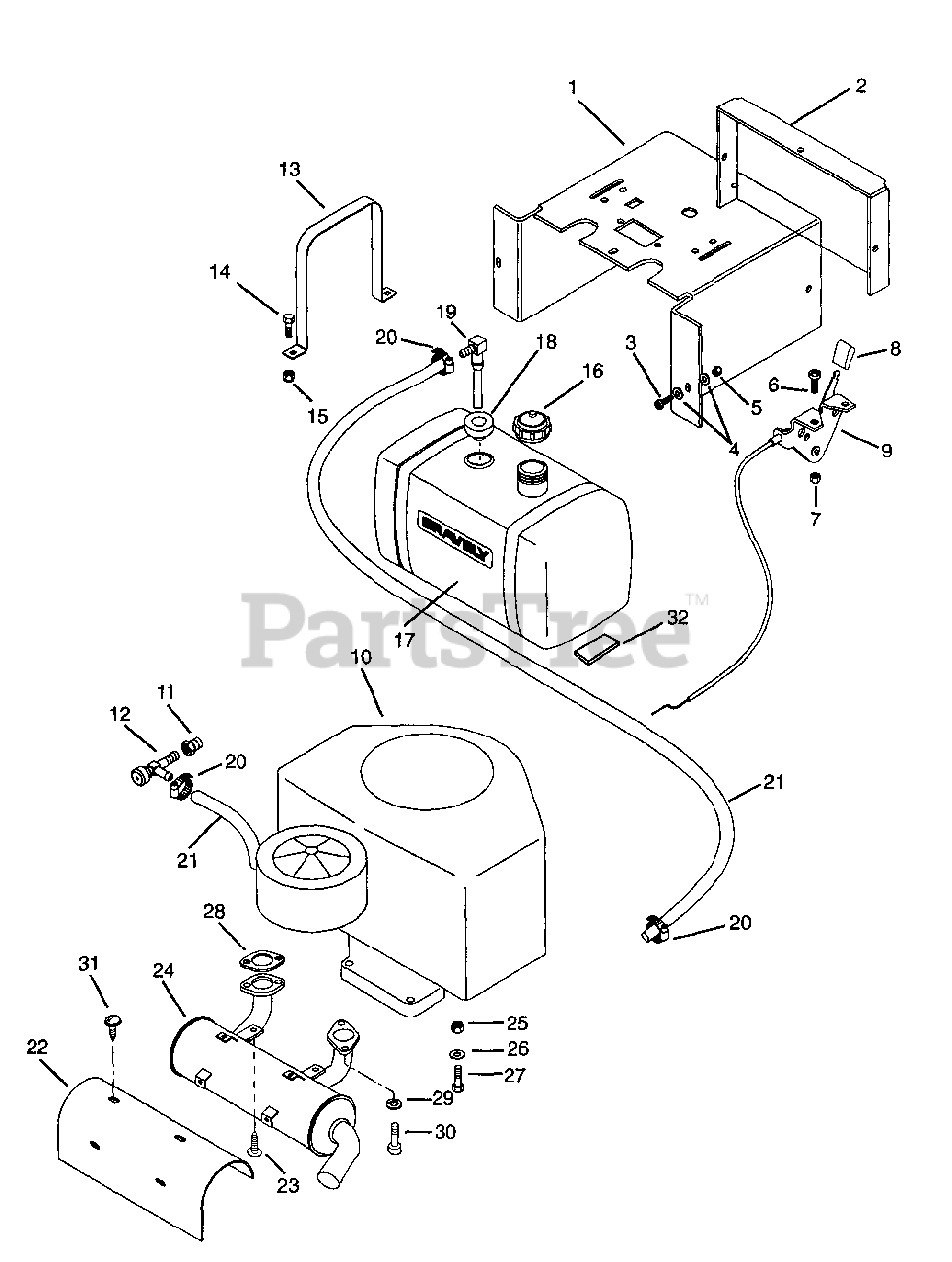

ENGINE AND EXHAUST Parts Diagram

  • Title

1

Gravely 09113300

Panel, Instrument

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 09106700

Cover, Instrument Panel

$

$

Not available

3

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

4

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

5

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

6

Gravely 160046

Screw-Machine 10-32 x .50
(Superseded to 06113300)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06502800

Nut-Locking 10-32
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 044589

Knob
(Superseded to 07501900)

$

$

Not available

9

Gravely 053385

Assembly, Choke Control
(Superseded to 06923400)

$

$

Not available

Gravely 053237

Assembly, Throttle Control
(Superseded to 06923300)

$

$

Not available

10

Gravely 08248100

Engine, Kohler CV 18 HP

$

$

Not available

11

Gravely 035328

Adapter, Oil Drain
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 035329

Cock, Oil Drain
(Superseded to 00429000)

$40.99

$

Usually ships in 4-12 days

0

13

Gravely 09112100

Strap, Fuel Tank

$

$

Not available

14

Gravely 180018

Bolt-Hex .25-20 x .63
(Superseded to 05932000)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

16

Gravely 048856

Cap, Fuel Tank
(Superseded to 07533400)

$23.99

$

In Stock, only 1 left!

0

17

Gravely 09112200

Tank, Fuel Gravely Pro

$75.99

$

Usually ships in 4-12 days

0

18

Gravely 050246

Bushing
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 09112300

Fitting-Tank
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

20

Gravely 032045

Hose Clamp
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 08898000

Heat, Shield

$56.99

$

Usually ships in 4-12 days

0

23

Gravely 07413100

Screw-Tapping M6-1 x 25MM

$

$

Not available

24

Gravely 09204700

Muffler, Kohler CV18-CV25

$342.99

$

Usually ships in 4-12 days

0

25

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 120393

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 180083

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.99

$

In Stock, Qty 6

0

28

Gravely 044390

Gasket, Exhaust
(Superseded to 08824700)

$22.99

$

Usually ships in 4-12 days

0

29

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 421705

Screw-Cap .31-18 x .75
(Superseded to 05901827)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 07413200

Screw-Tapping w/Washer

$5.49

$

In Stock, only 2 left!

0

32

Gravely 031884

Pad-Gas Tank
(Superseded to 03301900)

$

$

Not available
