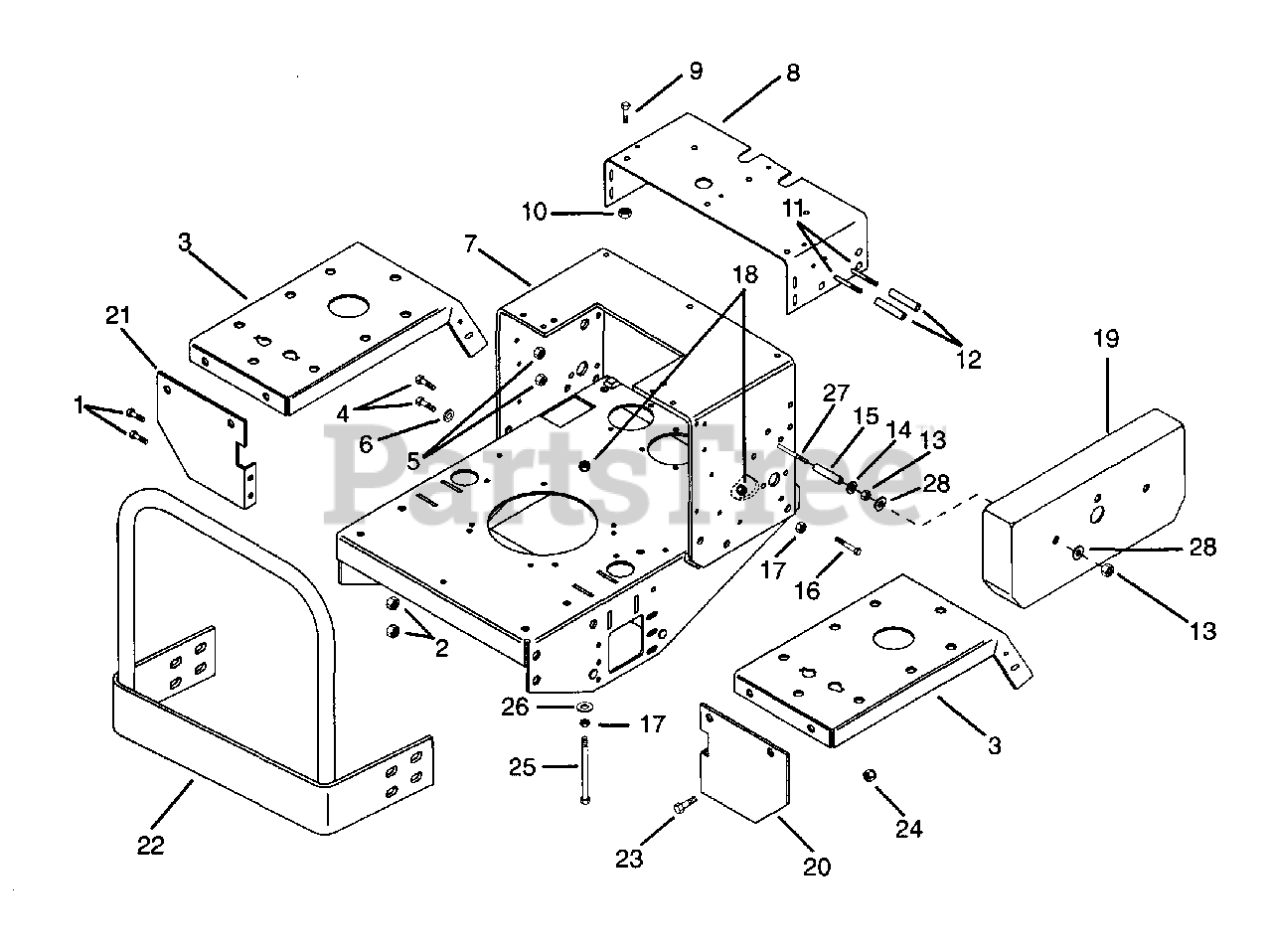

991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

FRAME Parts Diagram

  • Title

1

Gravely 180124

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, only 4 left!

0

2

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

3

Gravely 09113000

Fender

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

5

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

6

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

7

Gravely 09103000

Weldment, Frame Z

$

$

Not available

8

Gravely 09113200

Support Control Weldment

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

11

Gravely 05928200

Bolt-Hex .31-18 x 4.00 Grade 5
(Superseded to 05901834)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 09108300

Spacer, Split-Rolled

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, only 3 left!

0

15

Gravely 09108400

Spacer, Split-Rolled

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 180138

Bolt-Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

19

Gravely 09108200

Guard, Linkage

$

$

Not available

20

Gravely 09107000

Support, Fender Right Hand

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 09107100

Support, Fender Left Hand

$

$

Not available

22

Gravely 09113500

Weldment, Rear Guard

$74.99

$

Usually ships in 4-12 days

0

23

Gravely 180077

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 19

0

24

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

25

Gravely 191163

Bolt-Hex .38-16 x 4.00
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

26

Gravely 06429300

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05910100

Bolt-Hex .31-18 x 3.75 Grade 2
(Superseded to 05901936)

$2.99

$

In Stock, only 1 left!

0

28

Gravely 446354

Washer-Flat-Steel .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0
