991005 (PM 100Z) - Gravely Pro-Master 40" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) SEAT Parts Diagram

Pro-Master 40" Zero-Turn Mower, 18hp Kohler

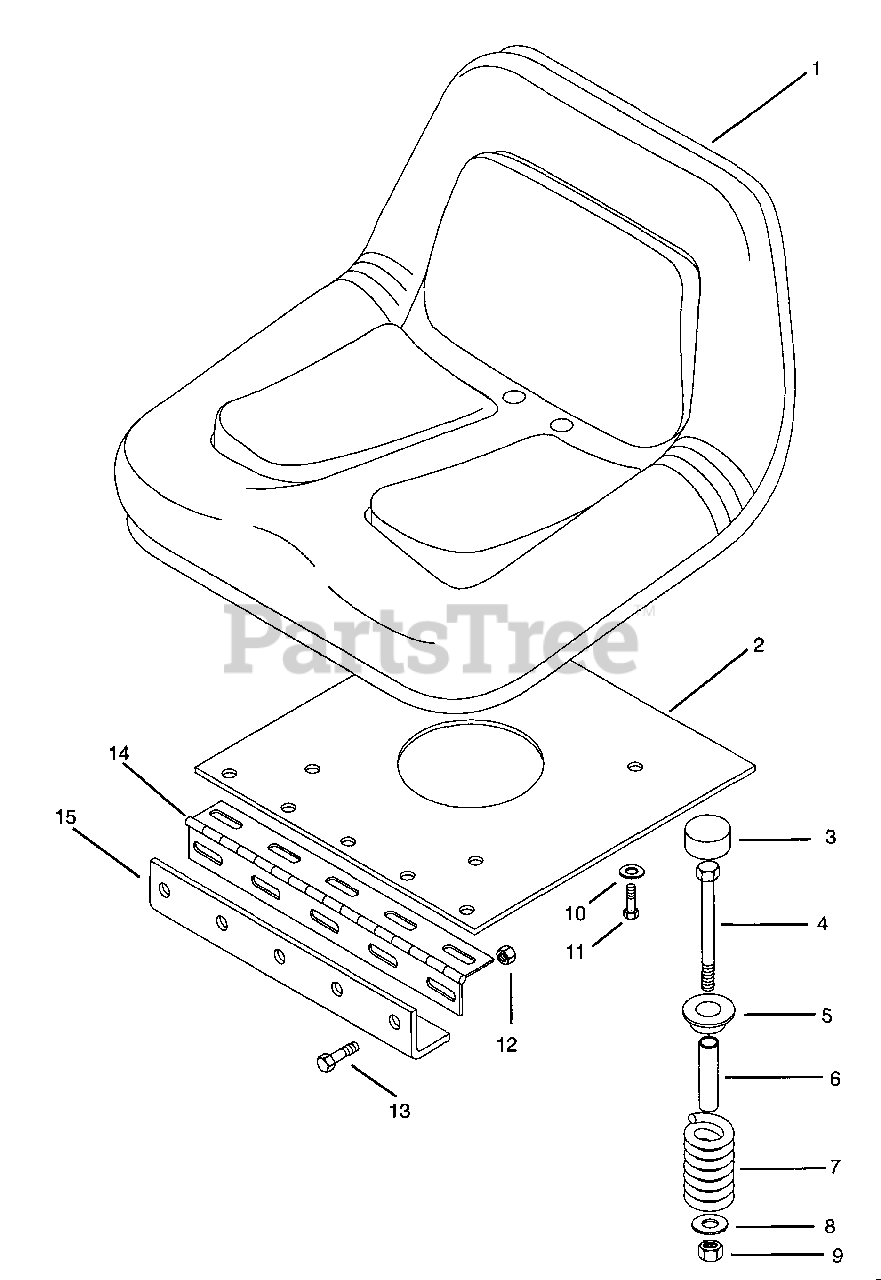

SEAT Parts Diagram

  • Title

1

Gravely 048918

Seat High Back
(Superseded to 59100200)

$

$

Not available

2

Gravely 09106800

Plate, Seat Mounting

$

$

Not available

3

Gravely 07521100

Molded Cap 1.5 OD, 1.0 ID

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 180046

Bolt-Hex .25-20 x 2.25
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 005741

Cap, Valve Spring

$

$

Not available

6

Gravely 09107900

Bushing, Split Rolled

$

$

Not available

7

Gravely 053368

Spring-Compression .149 x 1.095 x 1.75
(Superseded to 08328400)

$

$

Not available

8

Gravely 06412300

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$5.49

$

In Stock, only 2 left!

0

10

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 180075

Bolt-Hex .31-18 x .625
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 180075

Bolt-Hex .31-18 x .625
(Superseded to 05901832)

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 039090

Hinge
(Superseded to 03102800)

$

$

Not available

15

Gravely 09106900

Bracket, Seat Support

$

$

Not available

Gravely 044144

Kit, Arm Rest

Note: NS

$

$

Not available
