991006 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" ELECTRICAL SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

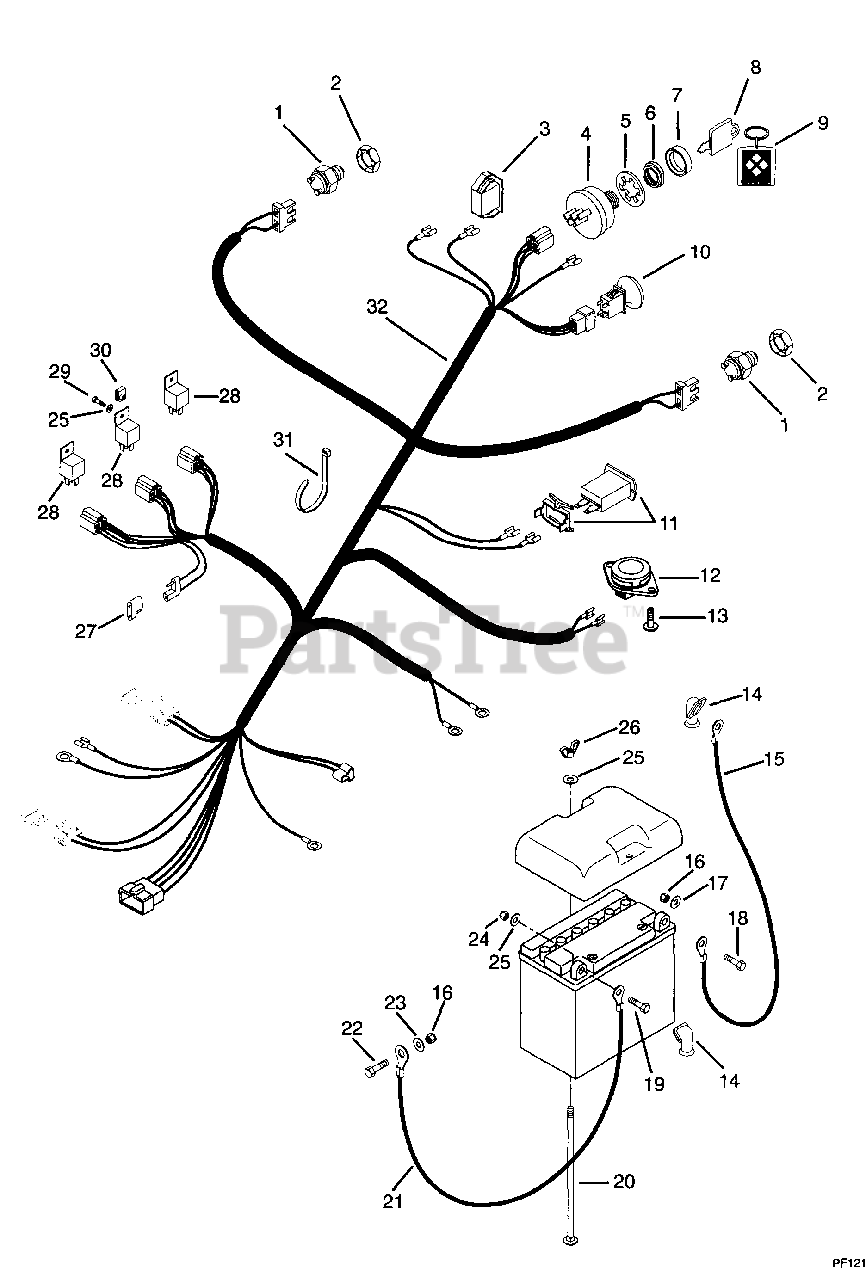

50" ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$46.99

$

In Stock, only 2 left!

0

2

Gravely 107354

NUT-STAMPED .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

4

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 15

0

5

Gravely 019667

WSHR-LK-INT .563X.040 YWZC
(Superseded to 06310900)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 045489

NUT- PANEL .562-24 GRECO
(Superseded to 06517400)

$21.99

$

In Stock, Qty 6

0

7

Gravely 045490

CAP - IGNITION SWITCH
(Superseded to 07517700)

$3.99

$

In Stock, Qty 12

0

8

Gravely 045488

KEY -W/CAP
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 045842

KEY CHAIN
(Superseded to 03490000)

$

$

Not available

10

Gravely 00522100

SWITCH, CLUTCH WITH RETAINER
(Superseded to 01545600)

$27.99

$

In Stock, Qty 20+

0

11

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$25.99

$

In Stock, Qty 16

0

12

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 7

0

13

Gravely 160515

SCR-MCH .25-20X.50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 03384700

BOOT, INSULATOR

$

$

Not available

15

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

16

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

17

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 180079

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

20

Gravely 126922

BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

21

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$18.99

$

Usually ships in 4-12 days

0

22

Gravely 05957100

BLT-HEX .31-18X.750 YWZC
(Superseded to 05947000)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 120306

Washer-Flat-Steel .312 x .734 x .065

$

$

Not available

24

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

25

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 010413

NUT-LK WING .250-20 YWZC
(Superseded to 06537500)

$5.49

$

In Stock, Qty 20+

0

27

Gravely 03081700

MOLDED DIODE PLUG 1 AMP

$29.99

$

In Stock, only 3 left!

0

28

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$25.99

$

In Stock, Qty 20+

0

29

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

30

Gravely 032369

NUT-RTNR .25-20X.56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 041634

TIE WRAP, BLACK LG 7.31
(Superseded to 07519900)

$3.99

$

Usually ships in 4-12 days

0

32

Gravely 09113700

HARNESS, WIRING 18HP KOHLER

$

$

Not available
