991006 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" HYDRAULIC SYSTEM Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

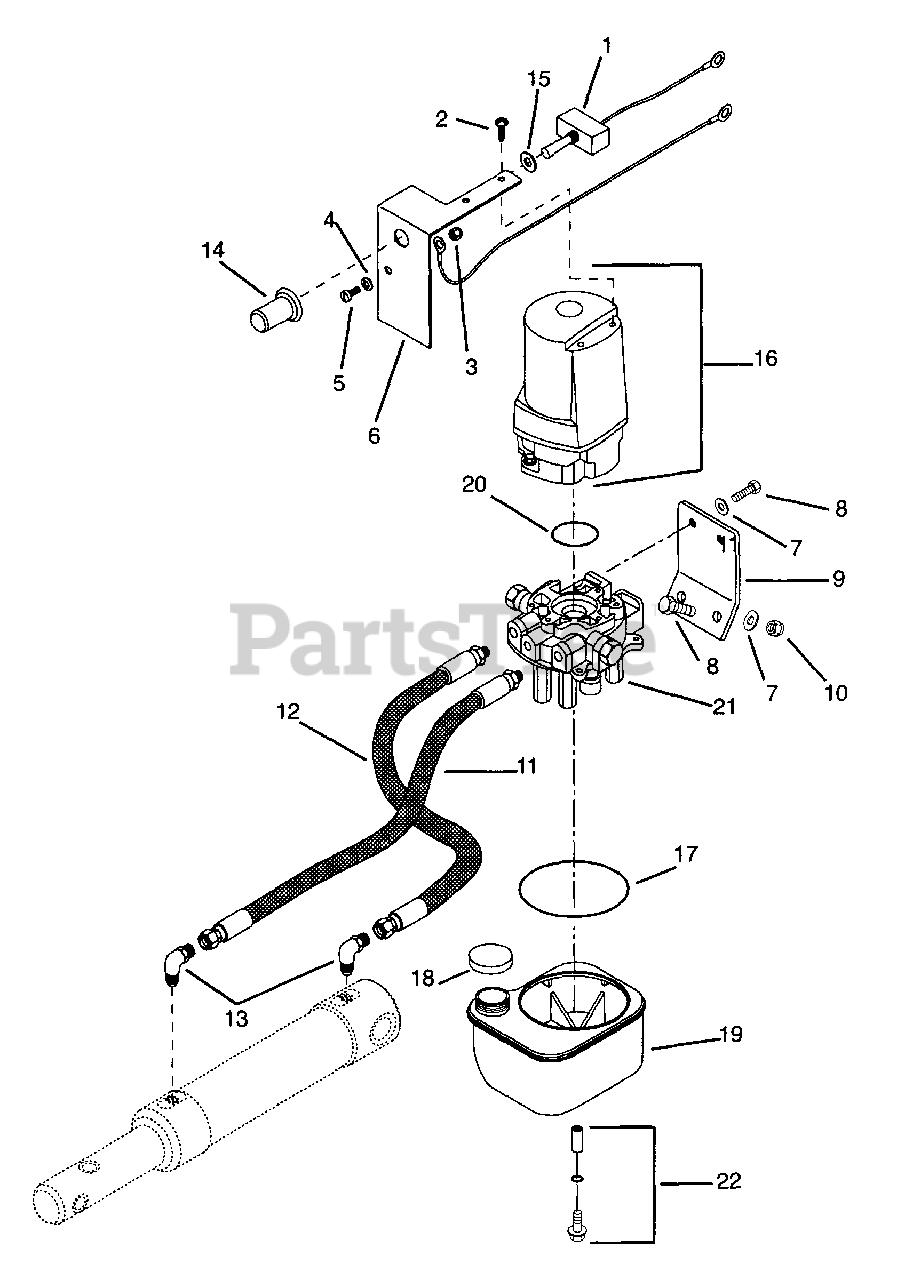

50" HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 03437900

Assembly-Switch

$71.99

$

Usually ships in 4-12 days

0

2

Gravely 07408500

Screw-Tapping 12-14 x .50

$

$

Not available

3

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

4

Gravely 120392

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 13

0

5

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$1.99

$

In Stock, only 3 left!

0

6

Gravely 09114000

Switch Plate

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05914500

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09104000

Lift Pump Mounting Bracket

$

$

Not available

10

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

11

Gravely 09221400

Assembly, Hose Pump to Cylinder

$40.99

$

Usually ships in 4-12 days

0

12

Gravely 09221500

Assembly, Hose Pump to Cylinder

$

$

Not available

13

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

14

092076

Boot, Switch

$

$

Not available

15

064366

Washer-Flat-Steel .505 x .880 x .072

$

$

Not available

16

Gravely 215098

Assembly-Motor

$

$

Not available

17

Gravely 200014

Reservoir Seal-O-Ring
(Superseded to 20001400)

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 200018

Reservoir-Cap
(Superseded to 20001800)

$21.99

$

Usually ships in 4-12 days

0

19

Gravely 214191

Reservoir-Tank
(Superseded to 21419100)

$

$

Not available

20

Gravely 215100

O-Ring

$

$

Not available

21

Gravely 215099

Assembly-Adaptor

$

$

Not available

22

Gravely 215101

Assembly-Screw-O-Ring and Spacer

$

$

Not available

22

Gravely 215102

Seal/O-Ring Kit

Note: Not Shown

$

$

Not available
