991006 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER DRIVE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

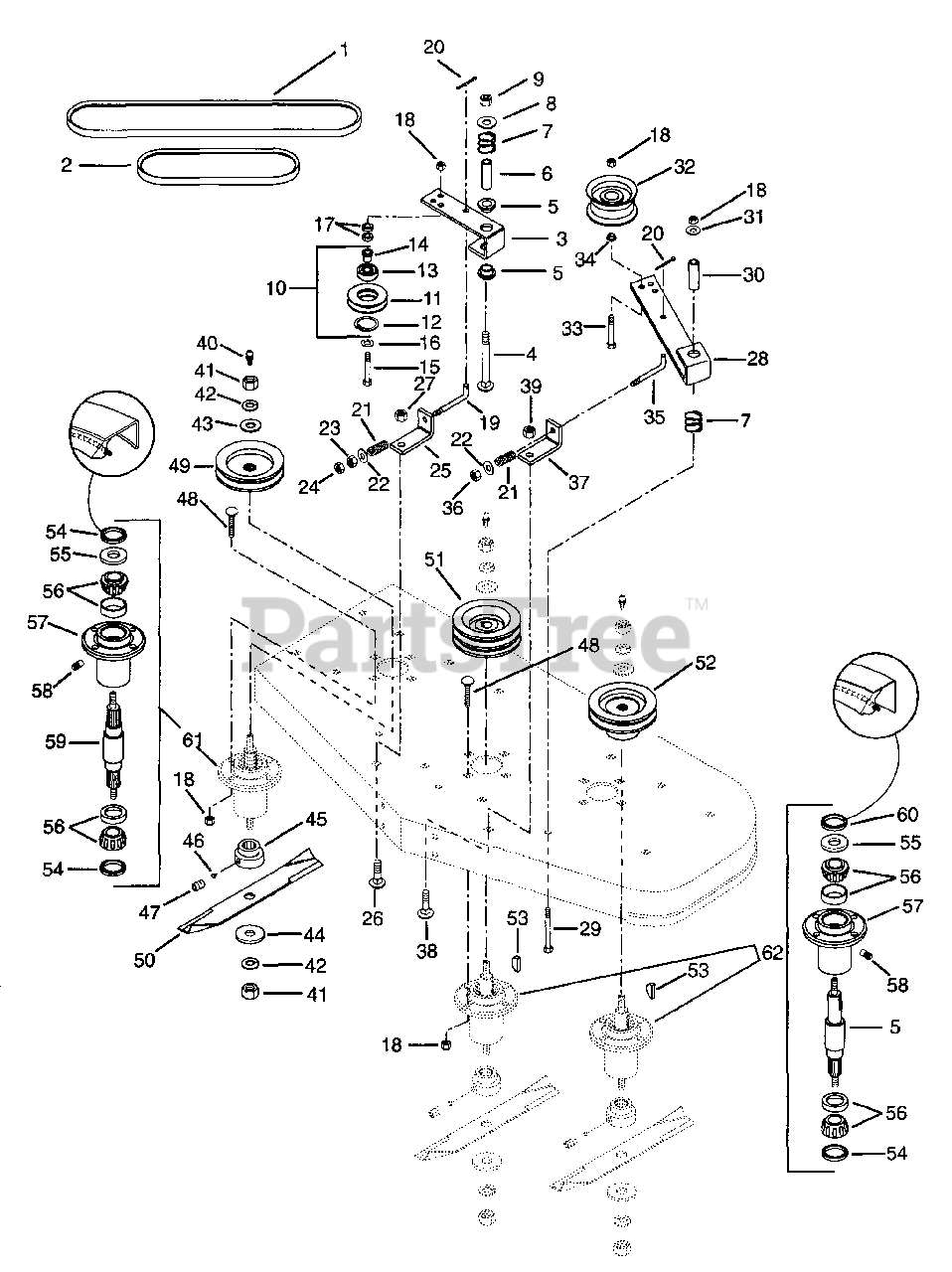

50" MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07224200

V-BELT, HA-RAW EDGE

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 034944

V-BELT, HA-RAW EDGE
(Superseded to 07220000)

$29.99

$

In Stock, Qty 6

0

3

Gravely 034120

ARM,IDLER PIVOT
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

4

Gravely 126803

BLT-RDHDSQNK .50-13X3.50 YWZC
(Superseded to 06218500)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 049669

BUSH.,F1.00X1.25X1.40 NY

$

$

Not available

6

Gravely 034119

SPACER .560X.750X2.437 ST
(Superseded to 08820500)

$19.99

$

In Stock, Qty 7

0

7

Gravely 020444

SG-COMP .085X.80X1.00 WLD36
(Superseded to 08329100)

$14.99

$

In Stock, Qty 5

0

8

Gravely 120389

WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06441000)

$3.49

$

In Stock, Qty 11

0

9

Gravely 414074

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

10

Gravely 038900

ASM,IDLER SHEAVE
(Superseded to 08930300)

$247.99

$

Usually ships in 4-12 days

0

11

Gravely 038896

SHEAVE,IDLER
(Superseded to 08744300)

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 018960

RG-RTNG-INT 2.054X.062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 038898

BRG-BALL 1.85X.787X.55
(Superseded to 05425100)

$

$

Not available

14

Gravely 038897

BSHG-FLG .786X1.0X.79
(Superseded to 05521500)

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 180130

BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 446470

WSHR-FL-STL .375X1.125X.065YWZ
(Superseded to 06401139)

$2.99

$

In Stock, Qty 14

0

17

Gravely 014672

BUSHING .406 X .750 X .188
(Superseded to 03488200)

$6.49

$

In Stock, only 2 left!

0

18

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 038714

ROD,IDLER
(Superseded to 08876000)

$

$

Not available

20

Gravely 121222

PIN-CTR .09X.75 EXTPRSQCT YWZ
(Superseded to 06706900)

$0.99

$

In Stock, only 2 left!

0

21

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

22

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 124829

NUT-JAM .375-16 PL
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 038713

BRKT,BELT TENSIONER
(Superseded to 08928800)

$

$

Not available

26

Gravely 120917

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

27

Gravely 435507

NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.99

$

In Stock, Qty 20+

0

28

Gravely 051134

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

$59.99

$

Usually ships in 4-12 days

0

29

Gravely 189305

BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 034938

BUSH.,S.437X.750X2.44 ST
(Superseded to 08818500)

$

$

Not available

31

Gravely 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 034286

IDLER-FLAT 4.00X.38 (2.00 W)
(Superseded to 07327800)

$91.99

$

In Stock, Qty 18

0

33

Gravely 180132

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

34

Gravely 024815

BSHG-FLG .406X.88X.270X.140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 14

0

35

Gravely 08598300

ROD,IDLER 50 IN. MOWER

$43.99

$

Usually ships in 4-12 days

0

36

Gravely 120369

NUT-HEX .375-24 YWZC
(Superseded to 06522900)

$2.99

$

In Stock, only 2 left!

0

37

Gravely 021111

ROD,IDLER 50 IN. MOWER
(Superseded to 08598300)

$43.99

$

Usually ships in 4-12 days

0

38

Gravely 126358

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

40

Gravely 411010

FTG,LUBE 1/8
(Superseded to 07012500)

$4.99

$

In Stock, Qty 12

0

41

Gravely 06535600

NUT-HEX .62-11 YWZC

$2.99

$

In Stock, only 3 left!

0

42

Gravely 06300700

WSHR-LK .625X.156 MED PL
(Superseded to 06309500)

$2.49

$

In Stock, only 2 left!

0

43

Gravely 033845

WSHR-FL-STL .687X1.312X.15 YWZ
(Superseded to 06427400)

$2.99

$

In Stock, Qty 7

0

44

Gravely 06435200

WSHR-FLT .640X1.75X.250 YWZC
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

45

Gravely 08886500

HUB

$65.99

$

Usually ships in 4-12 days

0

46

Gravely 03191400

PLUG

$7.49

$

Usually ships in 4-12 days

0

47

Gravely 06005400

SCR-SET .25-20X.25 SKHCUPDL

$3.99

$

Usually ships in 4-12 days

0

48

Gravely 126406

BLT-RDHDSQNK .38-16X1.50 G5YZ
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

49

Gravely 08894900

SHEAVE
(Superseded to 58803500)

$122.99

$

Usually ships in 4-12 days

0

50

Gravely 046998

BLD,50 INCH MOWER
(Superseded to 08779200)

$26.99

$

Usually ships in 4-12 days

0

51

Gravely 08894800

SHEAVE
(Superseded to 08895900)

$

$

Not available

52

Gravely 08895000

SHEAVE
(Superseded to 08895500)

$

$

Not available

53

Gravely 124553

KEY-WDRF .25X1.00 HRD #15
(Superseded to 06608900)

$3.99

$

In Stock, Qty 14

0

54

Gravely 05613000

SEAL 1.987X1.375X.313

$17.99

$

In Stock, Qty 13

0

55

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

56

Gravely 038199

ASM,BEARING CUP&CONE
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

57

Gravely 021215

HSG,BEARING
(Superseded to 08722700)

$137.99

$

Usually ships in 4-12 days

0

58

Gravely 08894800

SHEAVE
(Superseded to 08895900)

$

$

Not available

59

Gravely 021216

SPINDLE SHAFT SERVICE KIT
(Superseded to 58802800)

$87.99

$

In Stock, Qty 5

0

60

Gravely 039971

SEAL 1.987 X1.500 X.313
(Superseded to 05611400)

$16.99

$

In Stock, only 4 left!

0

61

Gravely 58802300

SERVICE KIT REVIEW L2084 LETT
(Superseded to 58803600)

Note: (Contains items 1 each of 38-42,49 & 51-53, 2 each of 26, 37, 48 & 49

$273.99

$

In Stock, Qty 8

0

62

Gravely 58802400

SERVICE KIT REVIEW L2084 LETT
(Superseded to 58803600)

Note: (Contains items 1 each of 39-42, 48, 49, 51-52 & 54-55, 2 each of 36, 37 & 50

$273.99

$

In Stock, Qty 8

0
