991006 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) ENGINE AND EXHAUST Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

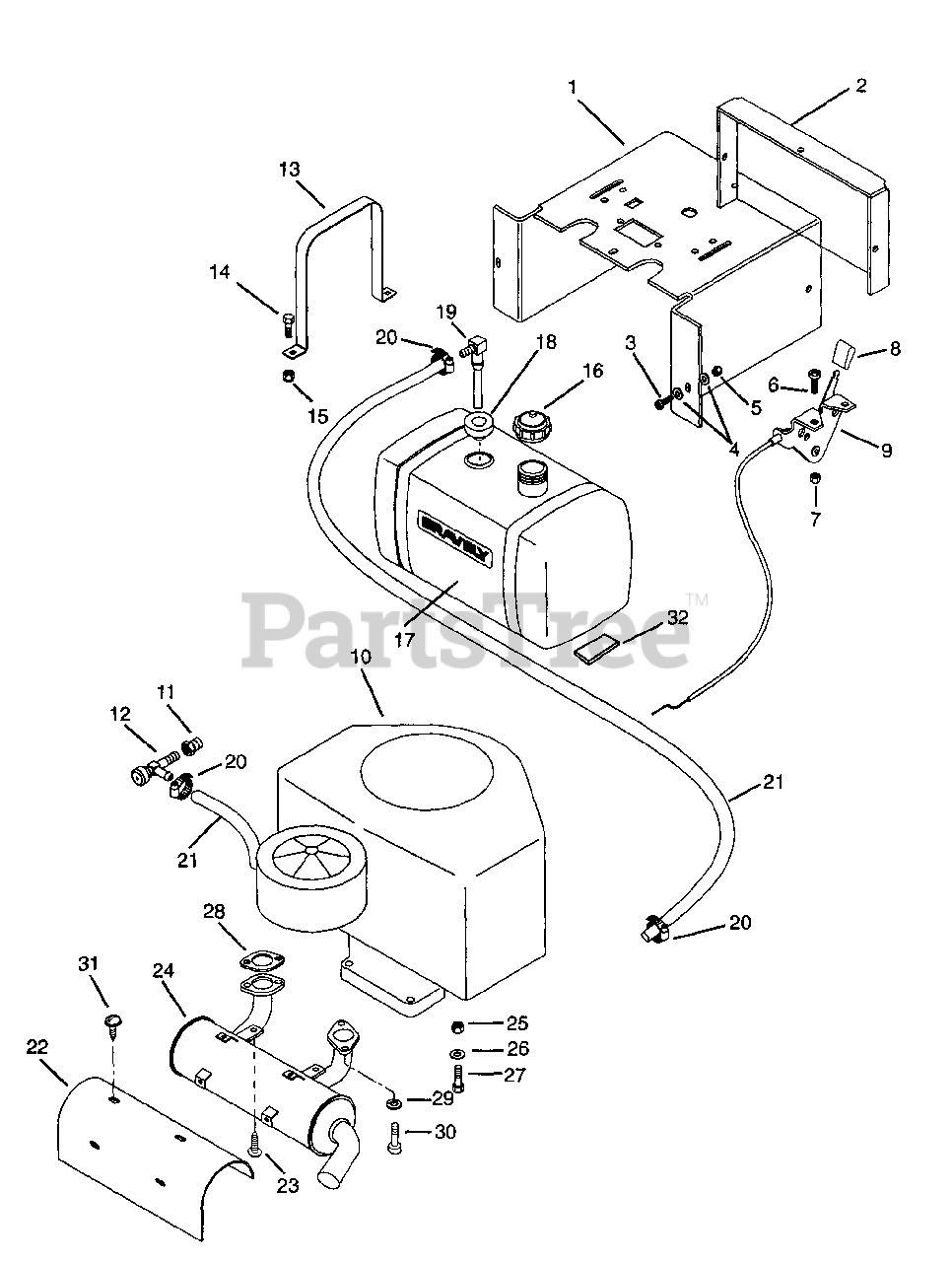

ENGINE AND EXHAUST Parts Diagram

  • Title

1

Gravely 09113300

PANEL, INSTRUMENT

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 09106700

CVR,INSTRUMENT PANEL

$

$

Not available

3

Gravely 160541

SCR-MCH .25-20 PAN HD
(Superseded to 06113500)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 050365

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

6

Gravely 160046

SCR-MCH 10-32X.50 PHD
(Superseded to 06113300)

$2.99

$

Usually ships in 4-12 days

0

7

Gravely 06502800

NUT-LK 10-32 NY PL
(Superseded to 06539200)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 044589

KNOB
(Superseded to 07501900)

$

$

Not available

9

Gravely 053385

ASM, CHOKE CONTROL
(Superseded to 06923400)

$

$

Not available

Gravely 053237

ASM,THROTTLE CONTROL
(Superseded to 06923300)

$

$

Not available

10

Gravely 08248100

ENGINE KOHLER CV 18HP PS-61541

$

$

Not available

11

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

13

Gravely 09112100

TANK STRAP FOR 4.5 G FUEL TANK

$

$

Not available

14

Gravely 180018

BLT-HEX .25-20X.63
(Superseded to 05932000)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

16

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

17

Gravely 09112200

FUEL TANK

$75.99

$

Usually ships in 4-12 days

0

18

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$15.99

$

In Stock, only 2 left!

0

20

Gravely 032045

HOSE CLAMP
(Superseded to 06924300)

$7.99

$

Usually ships in 4-12 days

0

21

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 08898000

HEAT SHIELD, CV18-25

$56.99

$

Usually ships in 4-12 days

0

23

Gravely 07413100

SCR-TAP M6-1 X 25MM (BULK)

$

$

Not available

24

Gravely 09204700

MUFFLER, KOHLER CV18-CV25

$342.99

$

Usually ships in 4-12 days

0

25

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

26

Gravely 120393

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 180083

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

28

Gravely 044390

GASKET,EXHAUST
(Superseded to 08824700)

$23.99

$

In Stock, only 4 left!

0

29

Gravely 120214

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 421705

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 07413200

SCR-TAP W/ WASHER (BULK)

$5.49

$

Usually ships in 4-12 days

0

32

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available
