991006 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

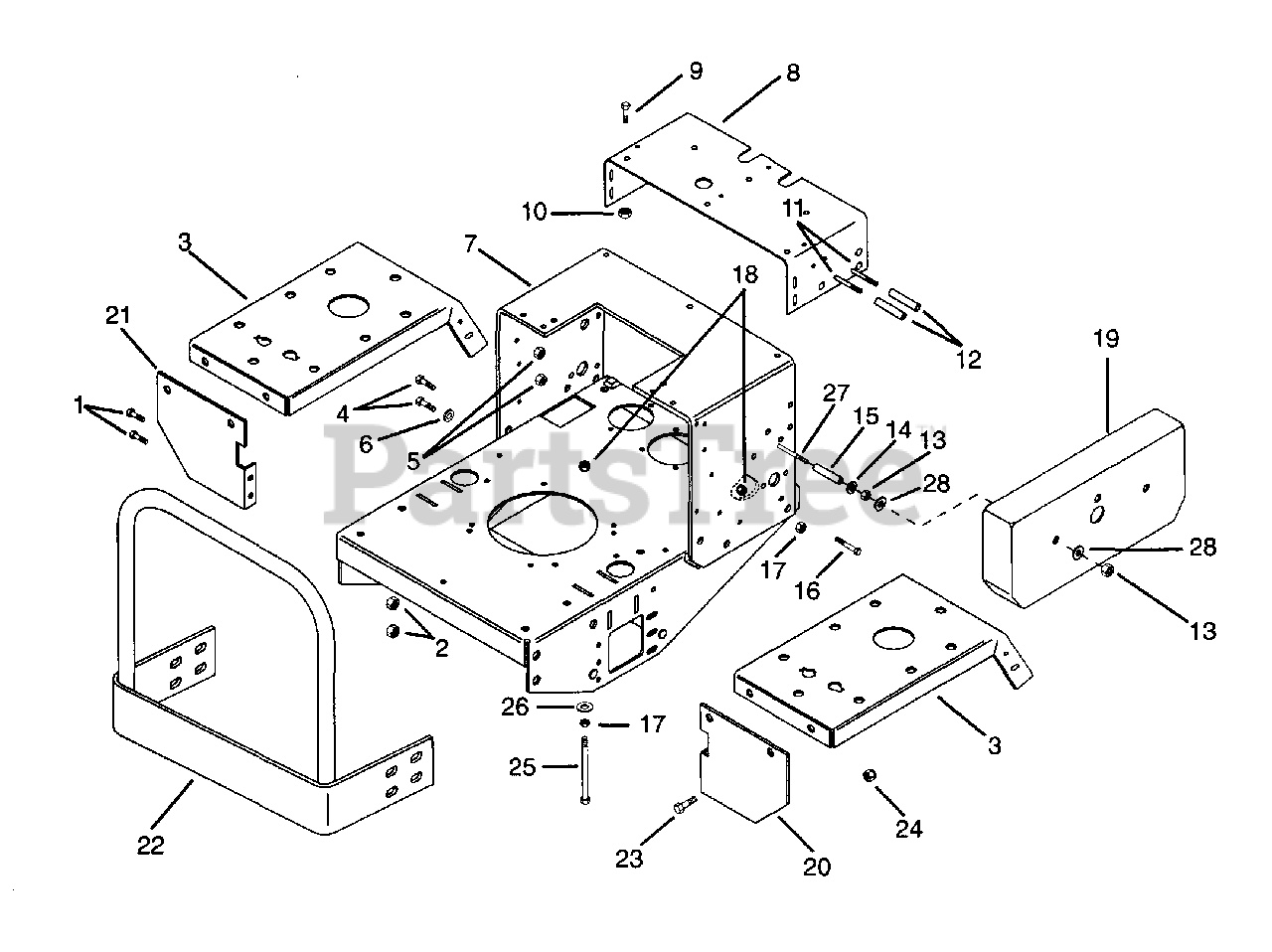

FRAME Parts Diagram

  • Title

1

Gravely 180124

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 18

0

2

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 09113000

FENDER

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 180020

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

5

Gravely 419454

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

6

Gravely 120392

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09103000

FRAME, PM 100

$

$

Not available

8

Gravely 09113200

SUPPORT CONTROL WELDMENT

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 180122

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

11

Gravely 05928200

BLT-HEX .31-18X4.00 PL GR5
(Superseded to 05901834)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 09108300

SPACER .328X.462X2.75

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

14

Gravely 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09108400

SPACER .328X.462X2.50

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 180138

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

17

Gravely 120377

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 456004

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 09108200

GUARD, LINKAGE

$

$

Not available

20

Gravely 09107000

SPRT,FENDER R.H.

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 09107100

SPRT,FENDER L.H.

$

$

Not available

22

Gravely 09113500

WELDMENT, REAR GUARD

$74.99

$

Usually ships in 4-12 days

0

23

Gravely 180077

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 419455

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

25

Gravely 191163

BLT-HEX .38-16X4.00 GR5 YWZC
(Superseded to 05965400)

$3.99

$

In Stock, only 1 left!

0

26

Gravely 06429300

WSHR-FL-STL .406X.812X.065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05910100

BLT-HEX .31-18X3.75 PL GR2
(Superseded to 05901936)

$3.49

$

Usually ships in 4-12 days

0

28

Gravely 446354

WSHR-FL-STL .313X.875X.065
(Superseded to 06430700)

$

$

Not available
