991007 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER DRIVE Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

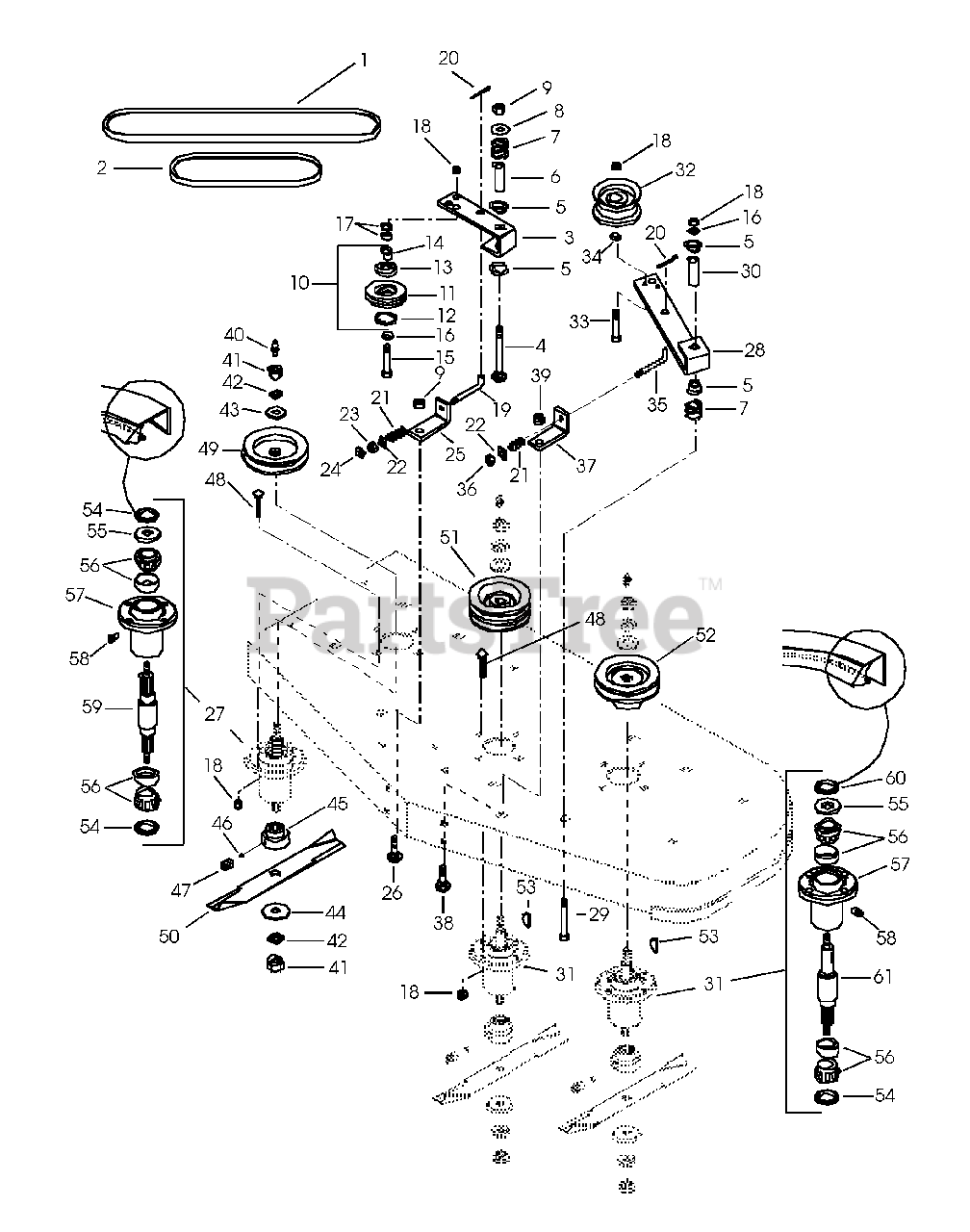

50" MOWER DRIVE Parts Diagram

  • Title

1

Gravely 07224200

V-Belt A-Section 50.25 x .561/.031

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 034944

V-Belt A-Section 18.05 x .495
(Superseded to 07220000)

$29.99

$

In Stock, Qty 7

0

3

Gravely 034120

Arm-Idler Pivot
(Superseded to 08905900)

$84.99

$

Usually ships in 4-12 days

0

4

Gravely 05964400

Bolt-Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

5

Gravely 049669

Bushing-Flange .762 x 1.0 x .580 x 1.48

$

$

Not available

6

Gravely 034119

Spacer .560 x .750 x 2.437
(Superseded to 08820500)

$19.99

$

In Stock, Qty 6

0

7

Gravely 020444

Spring-Compression .085 x .80 x 1.00
(Superseded to 08329100)

$14.99

$

In Stock, only 4 left!

0

8

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06536300

Nut-Locking .50-13
(Superseded to 06500827)

$4.99

$

In Stock, Qty 13

0

10

Gravely 038900

Assembly-Idler Sheave
(Superseded to 08930300)

Note: (Contains items 11-14)

$247.99

$

Usually ships in 4-12 days

0

11

Gravely 038896

Sheave-Idler
(Superseded to 08744300)

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 018960

Ring-Retaining-Internal 2.054 x .062
(Superseded to 05713100)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 038898

Bearing-Ball 1.85 x .787 x .55
(Superseded to 05425100)

$

$

Not available

14

Gravely 038897

Bushing-Flange .786 x 1.0 x .79
(Superseded to 05521500)

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 05963300

Bolt-Hex .38-16 x 2.00 Grade 5
(Superseded to 05901718)

$3.49

$

In Stock, Qty 20+

0

16

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 014672

Bushing .406 x .750 x .188
(Superseded to 03488200)

$6.49

$

In Stock, only 4 left!

0

18

Gravely 06529600

Nut-Locking-Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 038714

Rod-Idler
(Superseded to 08876000)

$

$

Not available

20

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

21

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$16.99

$

In Stock, only 4 left!

0

22

Gravely 06437300

Washer-Flat-Steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

23

Gravely 06529400

Nut-Hex .375-16
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06535900

Nut-Hex-Jam .375-16
(Superseded to 06500910)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 038713

Bracket-Belt Tensioner
(Superseded to 08928800)

$

$

Not available

26

Gravely 06223100

Bolt-Round Head Square Neck .50-13 x 1.50
(Superseded to 06200421)

$5.49

$

Usually ships in 4-12 days

0

27

Gravely 58802300

Service Kit
(Superseded to 58803600)

Note: (Contains 1 each of items 43-47, 55, 57, 58, 59 and 2 each of items 41, 42, 54, 56)

$273.99

$

In Stock, only 4 left!

0

28

Gravely 051134

Weldment-Ground Drive Idler
(Superseded to 08844251)

$59.99

$

Usually ships in 4-12 days

0

29

Gravely 05960900

Bolt-Hex .38-16 x 3.50 Grade 5
(Superseded to 05901818)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 034938

Bushing-Steel .437 x .750 x 2.44
(Superseded to 08818500)

$

$

Not available

31

Gravely 58802400

Service Kit
(Superseded to 58803600)

Note: (Contains 1 each of items 43-47, 54, 55, 57, 58, 60, 61 and 2 each of items 41, 42, 56)

$273.99

$

In Stock, only 4 left!

0

32

Gravely 034286

Idler-Flat 4-.687 x .38
(Superseded to 07327800)

$91.99

$

In Stock, Qty 20+

0

33

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

34

Gravely 024815

Bushing-Flange .406 x .88 x .270 x .140
(Superseded to 05515800)

$9.99

$

In Stock, Qty 6

0

35

Gravely 08598300

Rod-Idler 50 In. Mower

$43.99

$

Usually ships in 4-12 days

0

36

Gravely 06538800

Nut-Locking-Nylon w/insert .375-24

$2.49

$

In Stock, only 4 left!

0

37

Gravely 021111

Bracket
(Superseded to 08598300)

$43.99

$

Usually ships in 4-12 days

0

38

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 06529800

Nut-Locking-Nylon .312-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$4.99

$

In Stock, only 2 left!

0

41

Gravely 06535600

Nut-Hex .625-11

$2.99

$

Usually ships in 4-12 days

0

42

Gravely 06309500

Washer-Locking .625 x .156

$2.49

$

Usually ships in 4-12 days

0

43

Gravely 033845

Washer-Flat-Steel .97 x 1.865 x .063
(Superseded to 06427400)

$2.99

$

In Stock, Qty 9

0

44

Gravely 06435200

Washer
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

45

Gravely 08886500

Hub

$65.99

$

Usually ships in 4-12 days

0

46

Gravely 03191400

Plug

$7.49

$

Usually ships in 4-12 days

0

47

Gravely 06005400

Screw-Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

48

Gravely 06217600

Bolt-Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$4.99

$

In Stock, Qty 20+

0

49

Gravely 08894900

Sheave
(Superseded to 58803500)

$122.99

$

Usually ships in 4-12 days

0

50

Gravely 046998

Blade-50 Inch Mower
(Superseded to 08779200)

$26.99

$

In Stock, only 1 left!

0

51

Gravely 08894800

Sheave
(Superseded to 08895900)

$

$

Not available

52

Gravely 08895000

Sheave
(Superseded to 08895500)

$

$

Not available

53

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 15

0

54

Gravely 05613000

Seal 1.987 x 1.375 x .313

$17.99

$

In Stock, Qty 19

0

55

Gravely 06416600

Washer-Flat-Steel 1.007 x 1.542 x .062

$3.49

$

In Stock, Qty 20+

0

56

Gravely 038199

Assembly-Bearing Cup & Cone
(Superseded to 21245800)

$29.99

$

In Stock, Qty 20+

0

57

Gravely 08894500

Housing-Bearing

$

$

Not available

58

Gravely 08894800

Relief Fitting - Grease
(Superseded to 08895900)

$

$

Not available

59

Gravely 08898600

Shaft-Spindle
(Superseded to 58802800)

$87.99

$

In Stock, Qty 6

0

60

Gravely 039971

Seal 1.987 x 1.500 x .313
(Superseded to 05611400)

$16.99

$

In Stock, only 4 left!

0

61

Gravely 08898500

Shaft-Spindle
(Superseded to 58802900)

$128.99

$

In Stock, only 4 left!
