991007 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER HYDRAULIC LIFT SYSTEM (PART 1) Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

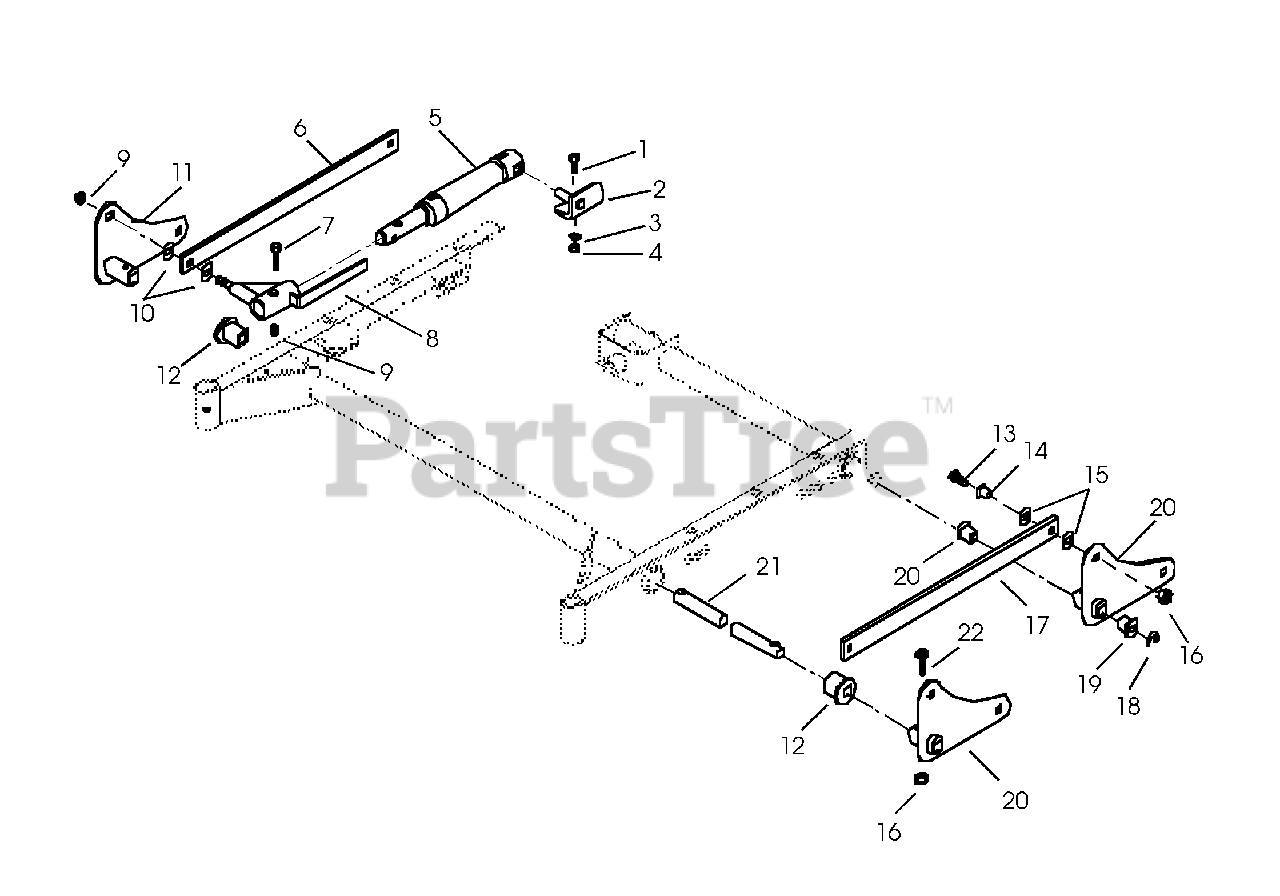

50" MOWER HYDRAULIC LIFT SYSTEM (PART 1) Parts Diagram

  • Title

1

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

2

Gravely 09103800

BKT, RAM BASE, PM-100/50 LIFT

$

$

Not available

3

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 031284

CYL,HYD.
(Superseded to 08727500)

$

$

Not available

6

Gravely 09111500

LINK BAR, RH, DECK LIFT

$

$

Not available

7

Gravely 05959700

BLT-HEX .50-13X2.00 GR5 YWZC
(Superseded to 05901929)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 09103900

LIFT RAM TERMINAL PIN

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

10

Gravely 06418100

WSHR-HDND-STL-THR.515X.97X.062

$3.99

$

In Stock, only 3 left!

0

11

Gravely 09103300

LIFT ARM WELDMENT, RH

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

13

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

14

Gravely 05514900

BSHG-FLG .325X.500X.513X.875

$3.99

$

In Stock, only 2 left!

0

15

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 09103500

LINK BAR, LH, DECK LIFT

$

$

Not available

18

Gravely 036278

RG-RTNG-EXT .750X.050
(Superseded to 05707400)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

20

Gravely 09103600

LIFT ARM WELDMENT L.H.

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 09101900

X-SHAFT 50 DECK LIFT

$

$

Not available

22

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0
