991007 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) ELECTRICAL SYSTEM - HYDRAULIC LIFT Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

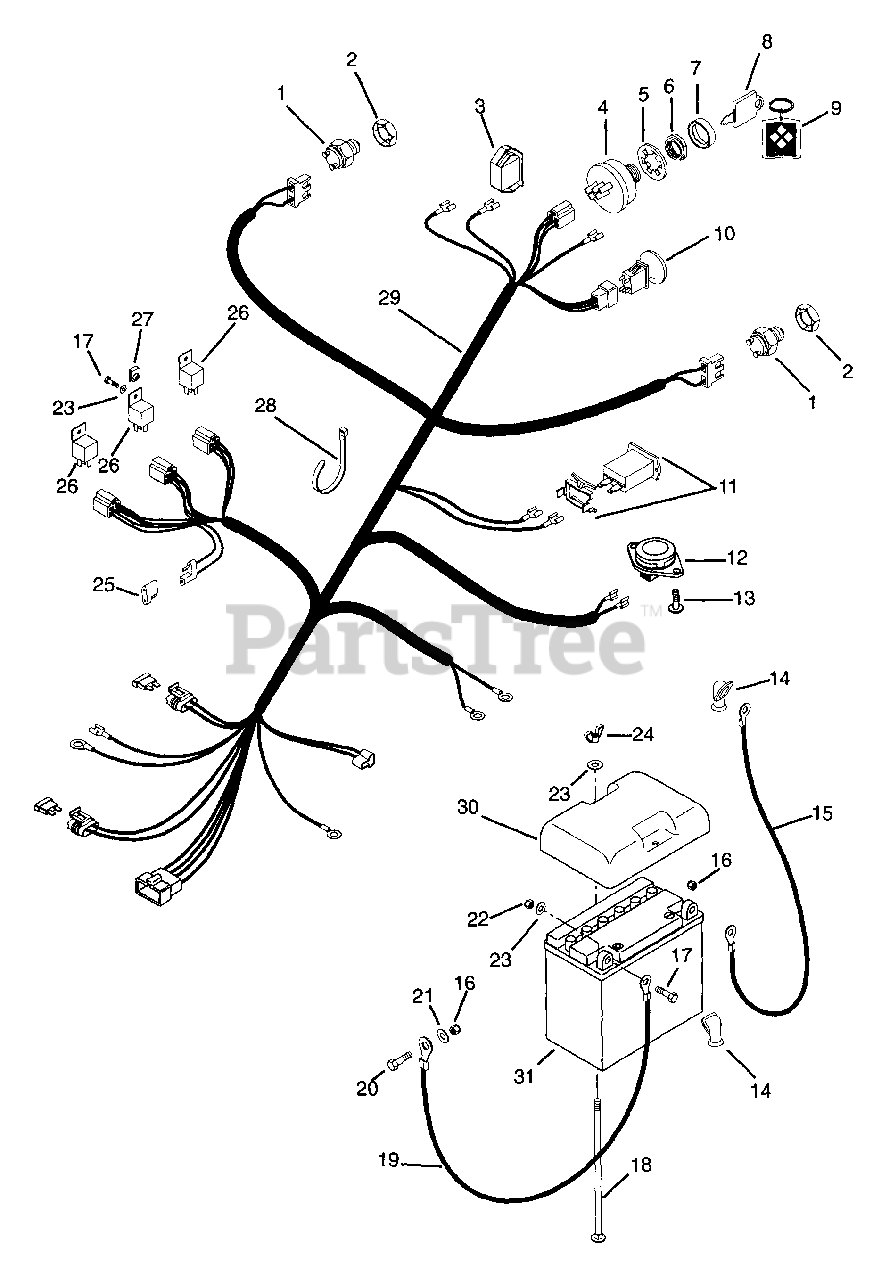

ELECTRICAL SYSTEM - HYDRAULIC LIFT Parts Diagram

  • Title

1

Gravely 020916

Switch-Neutral Start N.O.
(Superseded to 02913100)

$45.99

$

In Stock, only 1 left!

0

2

Gravely 107354

Nut-Stamped .56-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

3

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$11.99

$

Usually ships in 4-12 days

0

4

Gravely 03602300

Key Switch

$26.99

$

In Stock, Qty 8

0

5

Gravely 06306900

Washer-Locking-Internal .625 x .045
(Superseded to 06300124)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 045489

Nut-Panel .562-24
(Superseded to 06517400)

$13.99

$

Usually ships in 4-12 days

0

7

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 7

0

8

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 16

0

9

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

10

Gravely 01545600

Switch-Clutch w/Retainer Ring

$23.99

$

In Stock, Qty 20+

0

11

Gravely 038256

Hour Meter
(Superseded to 09497400)

$22.99

$

In Stock, only 3 left!

0

12

Gravely 03654200

Switch-Seat

$13.99

$

In Stock, only 1 left!

0

13

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

14

Gravely 07505700

Insulator

$9.49

$

Usually ships in 4-12 days

0

15

Gravely 02743300

Start Cable 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 3 left!

0

16

Gravely 06529800

Nut-Locking-Nylon .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 10

0

18

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, Qty 7

0

19

Gravely 050383

Cable-Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

20

Gravely 05947000

Bolt-Hex .312-18 x .750 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

21

Gravely 06435800

Washer-Flat-Steel .312 x .734 x .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 8

0

22

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 14

0

24

Gravely 06537500

Nut-Locking-Wing .250-20
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

25

Gravely 03081700

Molded Diode Plug

$26.99

$

In Stock, only 1 left!

0

26

Gravely 040216

Relay
(Superseded to 00432101)

$20.99

$

In Stock, Qty 16

0

27

Gravely 032369

Nut-Retainer .25-20 x .56
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 041634

Tie Wrap-Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 09113700

Harness-Wiring 18HP Kohler

$

$

Not available

30

Gravely 09032300

Cover-Battery
(Superseded to 04912900)

$11.99

$

Usually ships in 4-12 days

0

31

Gravely 09206000

Battery

$

$

Not available
