991007 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) ENGINE AND EXHAUST Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

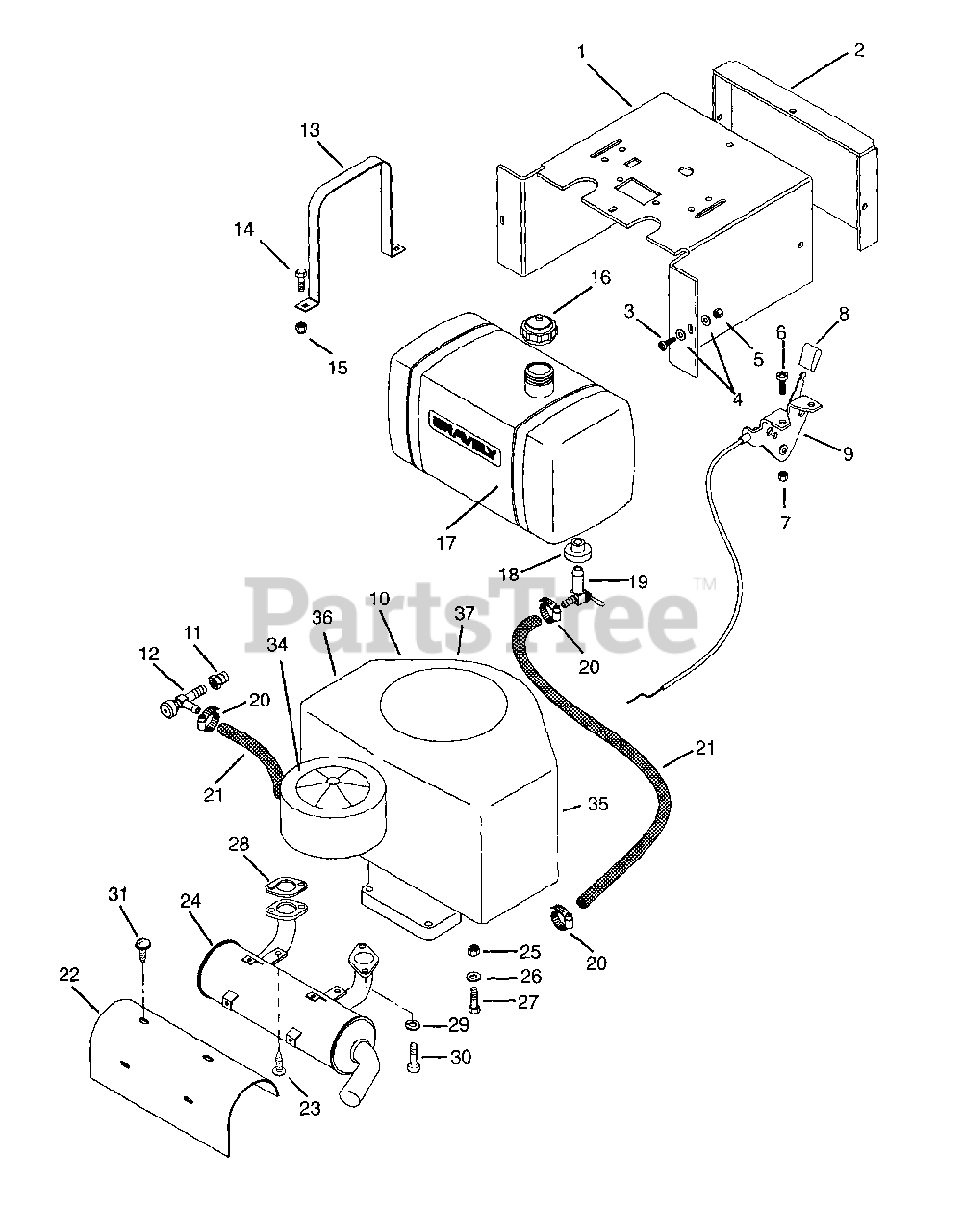

ENGINE AND EXHAUST Parts Diagram

  • Title

1

Gravely 09113300

Panel-Instrument

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 09106700

Cover-Instrument Panel

$

$

Not available

3

Gravely 06118000

Screw-Machine-Hex Washer Head .25-20 x .75
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06116700

Screw-Machine-Hex Washer Head 10-24 x .50
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536000

Nut-Locking-Nylon w/insert 10-24
(Superseded to 06500915)

$0.99

$

In Stock, only 3 left!

0

8

Gravely 044589

Knob
(Superseded to 07501900)

$

$

Not available

9

Gravely 053237

Assembly-Throttle Control
(Superseded to 06923300)

$

$

Not available

10

Gravely 08248100

Engine-Kohler CV 18 HP

$

$

Not available

11

Gravely 035328

Adapter-Oil Drain
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 035329

Cock-Oil Drain
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

13

Gravely 09112100

Strap-Fuel Tank for 4.5 Gravely Fuel Tank

$

$

Not available

14

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

15

Gravely 06529700

Nut-Locking-Center .250-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 048856

Cap-Fuel Tank
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

17

Gravely 09112200

Tank-Fuel

$75.99

$

Usually ships in 4-12 days

0

18

Gravely 050246

Bushing
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 049281

Valve-Ball Shut-Off

$

$

Not available

20

069391

Hose Clamp

$

$

Not available

21

Gravely 021134

Gas Line-Bulk
(Superseded to 03278100)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 09205200

Heat-Shield-Kohler CV18-25
(Superseded to 08898000)

$55.99

$

Usually ships in 4-12 days

0

23

Gravely 07413100

Screw-Tapping M6-1 x 25MM

$

$

Not available

24

Gravely 09204700

Muffler-Kohler CV18-CV25

$335.99

$

Usually ships in 4-12 days

0

25

Gravely 06529800

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 9

0

27

Gravely 05952400

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

28

Gravely 044390

Gasket-Exhaust
(Superseded to 08824700)

$10.99

$

In Stock, only 1 left!

0

29

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

31

Gravely 05964700

Bolt-Hex .25-20 x 1.75 Grade 5
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

32

Gravely 08327000

Spring-Compression .125 x .78 x 1.00

$15.99

$

In Stock, only 4 left!

0

33

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 21416800

Air Filter
(Superseded to 08563700)

$23.99

$

In Stock, only 2 left!

0

34

Gravely 21416700

Air Filter Pre-Cleaner
(Superseded to 08563900)

$13.99

$

Usually ships in 4-12 days

0

35

Gravely 21410800

Fuel Filter
(Superseded to 21541500)

$8.99

$

In Stock, Qty 20+

0

36

Gravely 21397200

Oil Filter
(Superseded to 20715100)

$17.99

$

In Stock, only 1 left!

0

37

Gravely 21403700

Spark Plug
(Superseded to 21541700)

$3.49

$

In Stock, Qty 20+

0
