991007 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) WIRING DIAGRAM - HYDRAULIC LIFT Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

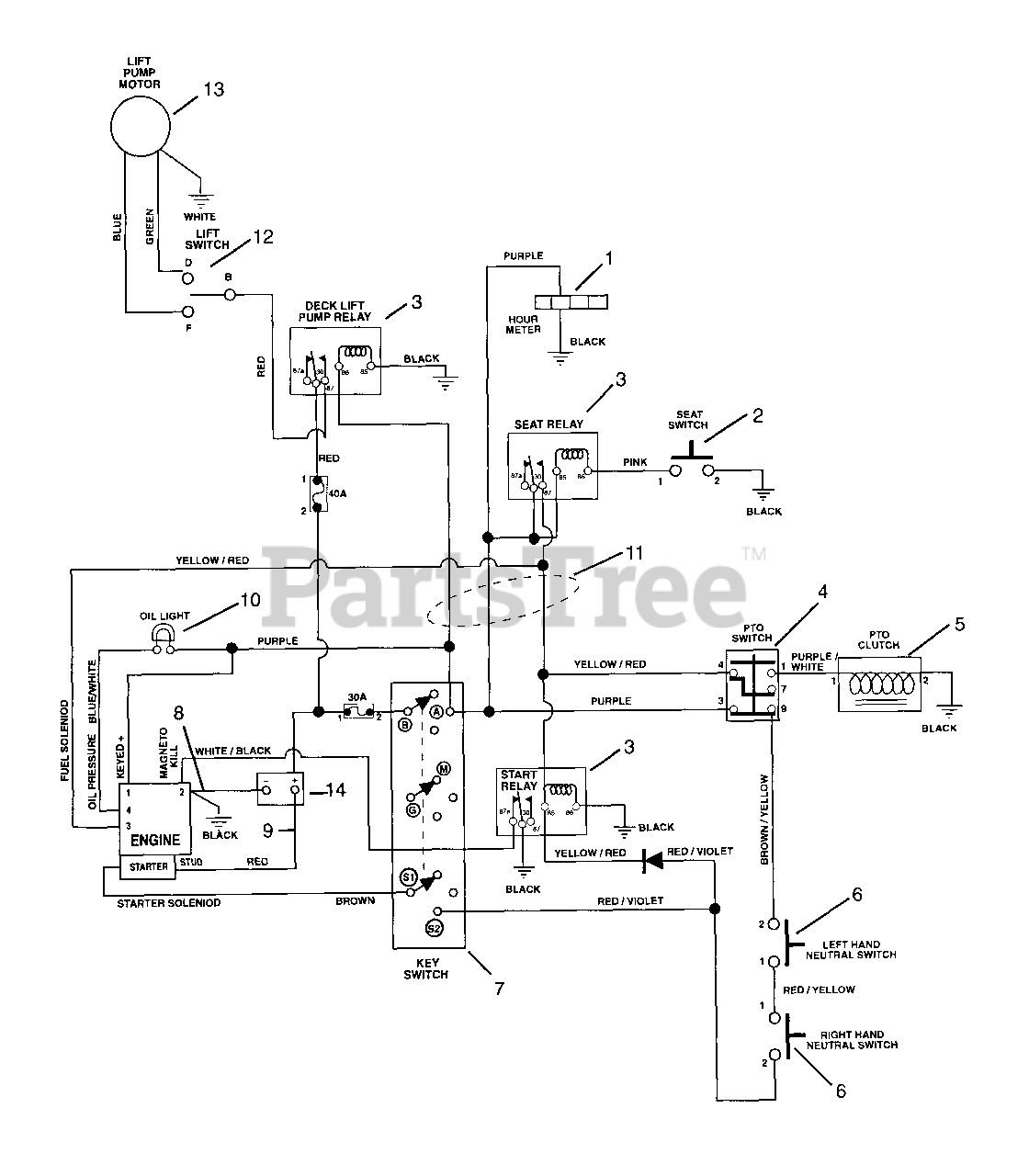

WIRING DIAGRAM - HYDRAULIC LIFT Parts Diagram

  • Title

1

Gravely 038256

METER, HOUR W/MAINTENANCE
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

2

Gravely 03654200

SWITCH- SEAT

$15.99

$

In Stock, Qty 5

0

3

Gravely 040216

RELAY,SEALED W/DIODE
(Superseded to 00432101)

$27.99

$

In Stock, Qty 20+

0

4

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

5

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

$523.99

$

Usually ships in 4-12 days

0

6

Gravely 020916

SWITCH-NEUTRAL START N.O.
(Superseded to 02913100)

$48.99

$

In Stock, only 2 left!

0

7

Gravely 03602300

KEY SWITCH

$26.99

$

In Stock, Qty 8

0

8

Gravely 02743300

START CABLE 22"
(Superseded to 03287200)

$21.99

$

In Stock, only 2 left!

0

9

Gravely 050383

CBL,NEGATIVE BATTERY 20.00
(Superseded to 08840400)

$19.99

$

Usually ships in 4-12 days

0

10

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$8.49

$

In Stock, Qty 6

0

11

Gravely 09113700

HARNESS, WIRING 18HP KOHLER

$

$

Not available

12

Gravely 03437900

SWITCH ASSEMBLY

$76.99

$

Usually ships in 4-12 days

0

13

Gravely 08725000

PUMP, ELECTRIC HYDRAULIC

$

$

Not available

14

Gravely 09206000

BATTERY

$

$

Not available
