991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER FRAME 1 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

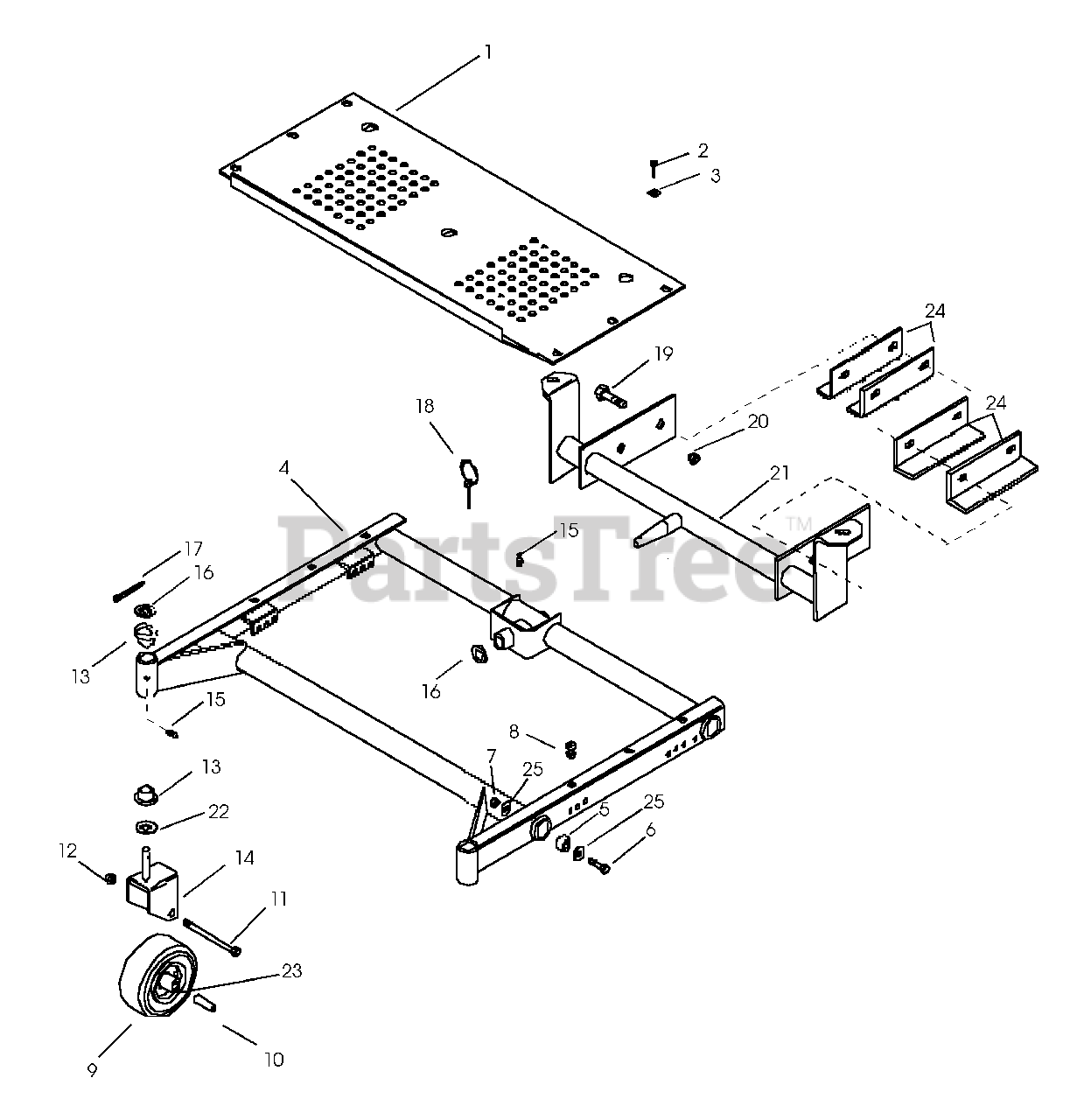

50" MOWER FRAME 1 Parts Diagram

  • Title

1

Gravely 09113100

FOOTBOARD

$131.99

$

Usually ships in 4-12 days

0

2

Gravely 06118000

SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09114500

FRAME - MOWER

Note: (Model 007)

$

$

Not available

Gravely 09114600

FRAME - MOWER

Note: (Model 008)

$

$

Not available

5

Gravely 050396

BUSHING .391 X .626 X .670
(Superseded to 08814100)

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

7

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06527400

CLIP,U-TYPE EATON #C17453-1420

$

$

Not available

9

Gravely 053180

WHL,GA 11X4-4
(Superseded to 09105800)

$150.99

$

Usually ships in 4-12 days

0

10

Gravely 09105200

BUSH.,CASTER FORK

$39.99

$

In Stock, Qty 6

0

11

Gravely 05964400

BLT-HEX .50-13X6.50 GR5 YWZC
(Superseded to 05901907)

$7.99

$

In Stock, Qty 20+

0

12

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

13

Gravely 018355

BSHG-FLG1.020X1.385X.75X1.75NY
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

14

Gravely 09114200

WMT, CASTER FORK

$

$

Not available

15

Gravely 411027

FTG,LUBE, .25-28 SELF THREAD
(Superseded to 07012600)

$

$

Not available

16

Gravely 05421600

WSHR-HDND-THRUST 1.00X1.55X.03
(Superseded to 06435300)

$5.49

$

In Stock, Qty 8

0

17

Gravely 06712800

PIN-CTR .18X1.50 EXTPRSQCT YZ

$2.49

$

In Stock, only 2 left!

0

18

Gravely 011902

PIN-KLIK .25X1.75
(Superseded to 07015400)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 05968700

BLT-HEX .62-11X1.50 GR5 YWZC

$3.99

$

In Stock, Qty 9

0

20

Gravely 06535300

NUT-LK-CTR .62-11 YWZC

$2.99

$

In Stock, only 1 left!

0

21

Gravely 09104900

WLDMT,MWR FRAME MTG

$

$

Not available

22

Gravely 06416600

WSHR-HRD-THRS 1.007X1.542X.062

$3.49

$

In Stock, Qty 20+

0

23

Gravely 05408900

BRG-BALL .752X1.50X.50

$20.99

$

In Stock, only 3 left!

0

24

Gravely 09114800

PLATE/SHIM

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
