991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER FRAME 2 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

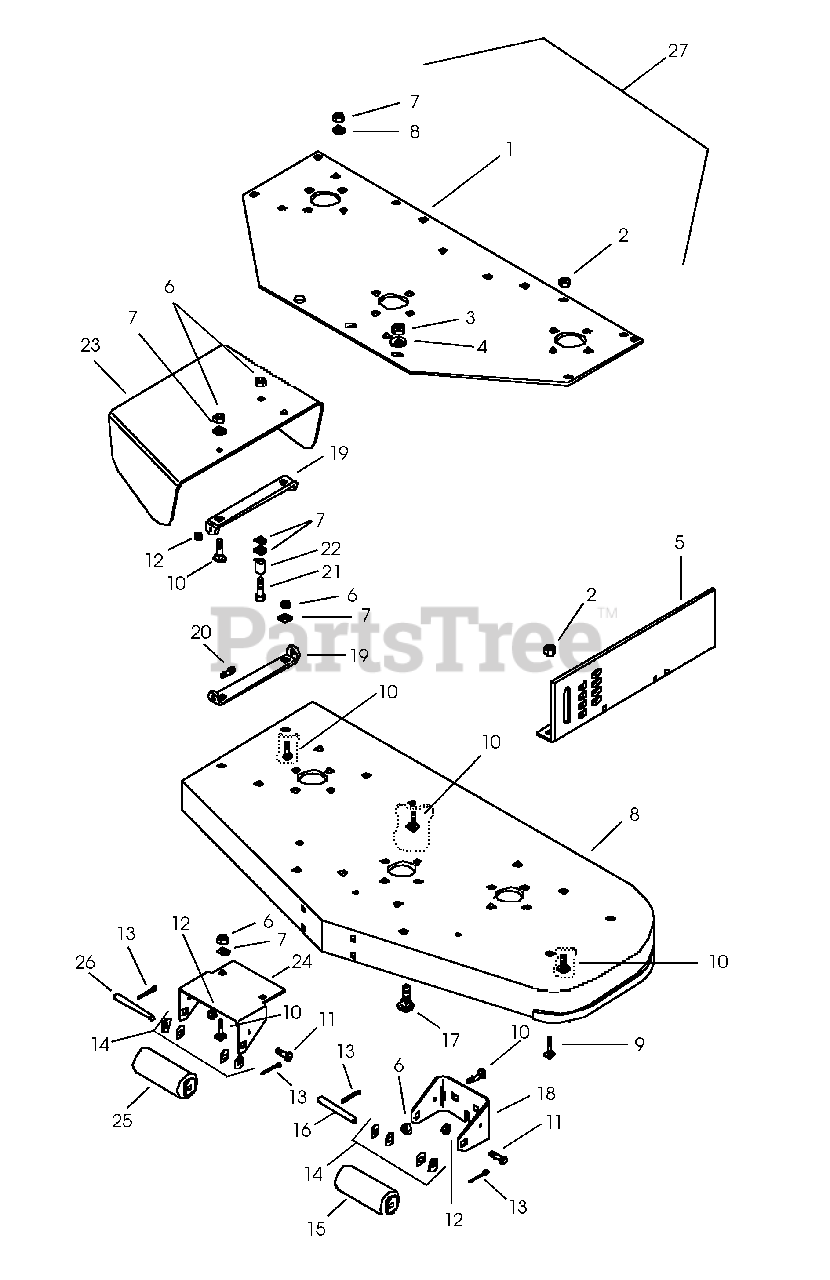

50" MOWER FRAME 2 Parts Diagram

  • Title

1

Gravely 052760

PLT,SUPPORT
(Superseded to 08850153)

$224.99

$

In Stock, only 1 left!

0

2

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

4

Gravely 06442000

WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

5

Gravely 09105500

BRKT,MWR SIDE SPRT L.H.

$

$

Not available

Gravely 09105400

BRKT,MWR SIDE SPRT R.H.

$

$

Not available

6

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 052750

WLDMT,50"MWR FABRICATED
(Superseded to 08849100)

$

$

Not available

9

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06219600

BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.99

$

In Stock, Qty 10

0

11

Gravely 05934000

BLT-HEX .25-20X.875

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06713100

PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$4.99

$

In Stock, only 2 left!

0

14

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 015351

RLR,GAGE
(Superseded to 07520100)

$27.99

$

Usually ships in 4-12 days

0

16

Gravely 045211

ROD
(Superseded to 08966900)

$58.99

$

Usually ships in 4-12 days

0

17

Gravely 06215600

BLT-RDHDSQNK .50-13X1.00 G2YW
(Superseded to 06224600)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 08966853

BRKT., ROLLER (RED)

$

$

Not available

19

Gravely 08827653

BRKT,CHUTE

$

$

Not available

20

Gravely 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.99

$

In Stock, only 2 left!

0

21

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

22

Gravely 038696

BSHG-SLV .407X.625X.750 PL
(Superseded to 05525700)

$7.49

$

In Stock, Qty 20+

0

23

Gravely 052805

SHIELD,SFTY EXT 50"MWR
(Superseded to 08850600)

$

$

Not available

24

Gravely 052796

BRKT, GAGE ROLLER
(Superseded to 09012300)

$79.99

$

In Stock, only 2 left!

0

25

Gravely 031390

RLR,GAGE
(Superseded to 08803300)

$38.99

$

In Stock, only 3 left!

0

26

Gravely 024795

SHAFT,CENTER ROLLER
(Superseded to 08598800)

$61.99

$

Usually ships in 4-12 days

0

27

Gravely 59100600

DECK, 50" 3-SPNDL PM100 SERV.

Note: (Includes spindles and sheaves)

$

$

Not available
