991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) 50" MOWER FRAME 2 Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

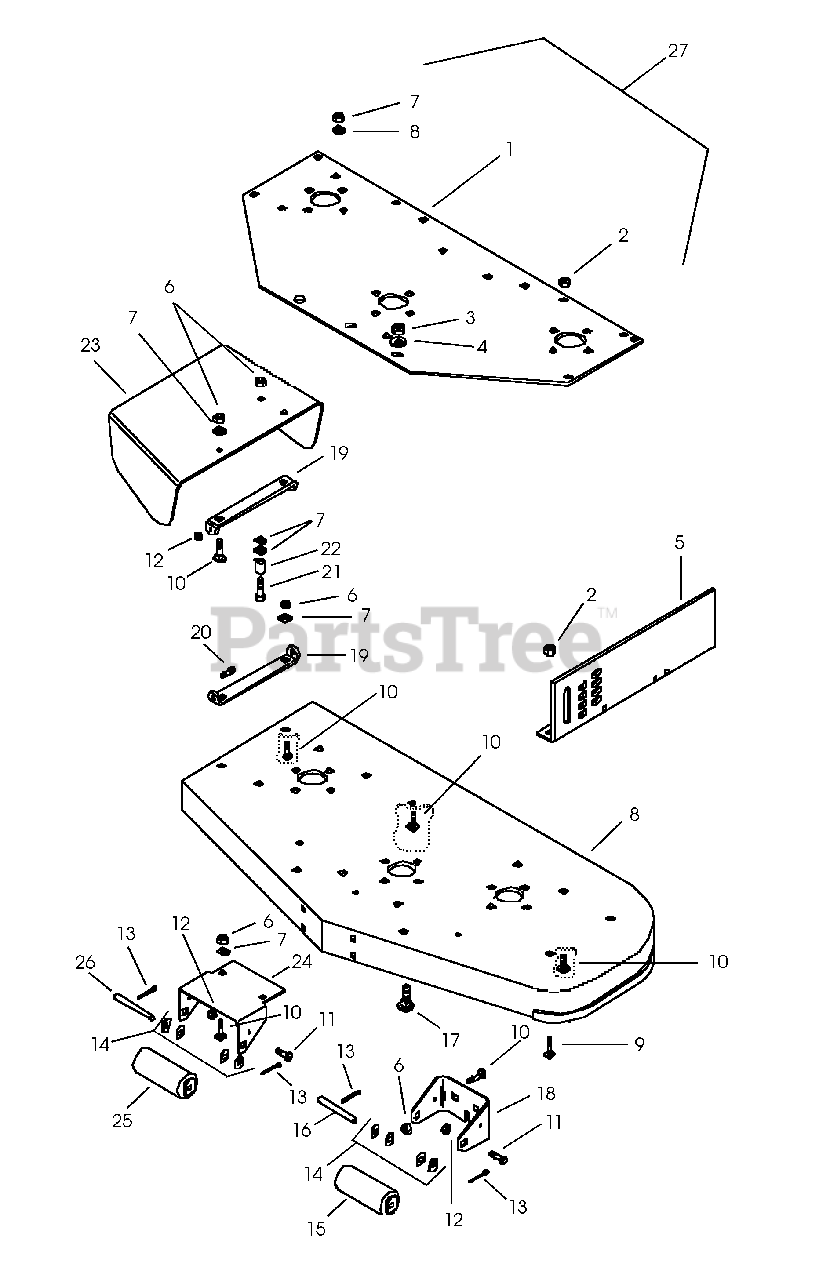

50" MOWER FRAME 2 Parts Diagram

  • Title

1

Gravely 052760

Plate-Support
(Superseded to 08850153)

$220.99

$

Usually ships in 4-12 days

0

2

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$3.49

$

In Stock, Qty 15

0

5

Gravely 09105500

Bracket-Mower Side Support Left Hand

$

$

Not available

5

Gravely 09105400

Bracket-Mower Side Support Right Hand

$

$

Not available

6

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 052750

Weldment-50" Mower Fabricated
(Superseded to 08849100)

$

$

Not available

9

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.0
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

10

Gravely 06219600

Bolt-Round Head Square Neck .38-16 x .75
(Superseded to 06223900)

$1.49

$

Usually ships in 4-12 days

0

11

Gravely 05934000

Bolt-Hex .25-20 x .875

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06713100

Pin-Center .25 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06442800

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 18

0

15

Gravely 015351

Roller-Gage
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

16

Gravely 045211

Rod
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

17

Gravely 06215600

Bolt-Round Head Square Neck .50-13 x 1.00
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

18

Gravely 08966853

Bracket-Roller

$

$

Not available

19

Gravely 08827653

Bracket-Chute

$

$

Not available

20

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 7

0

21

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 5

0

22

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

23

Gravely 052805

Shield-Safety External 50" Mower
(Superseded to 08850600)

$

$

Not available

24

Gravely 052796

Bracket-Roller Right Hand
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

25

Gravely 031390

Roller-Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 3 left!

0

26

Gravely 024795

Shaft-Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 2 left!

0

27

Gravely 59100600

Deck-50" 3 Spindle PM100-Service

Note: (Includes spindles and sheaves)

$

$

Not available
