991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) ENGINE AND EXHAUST Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

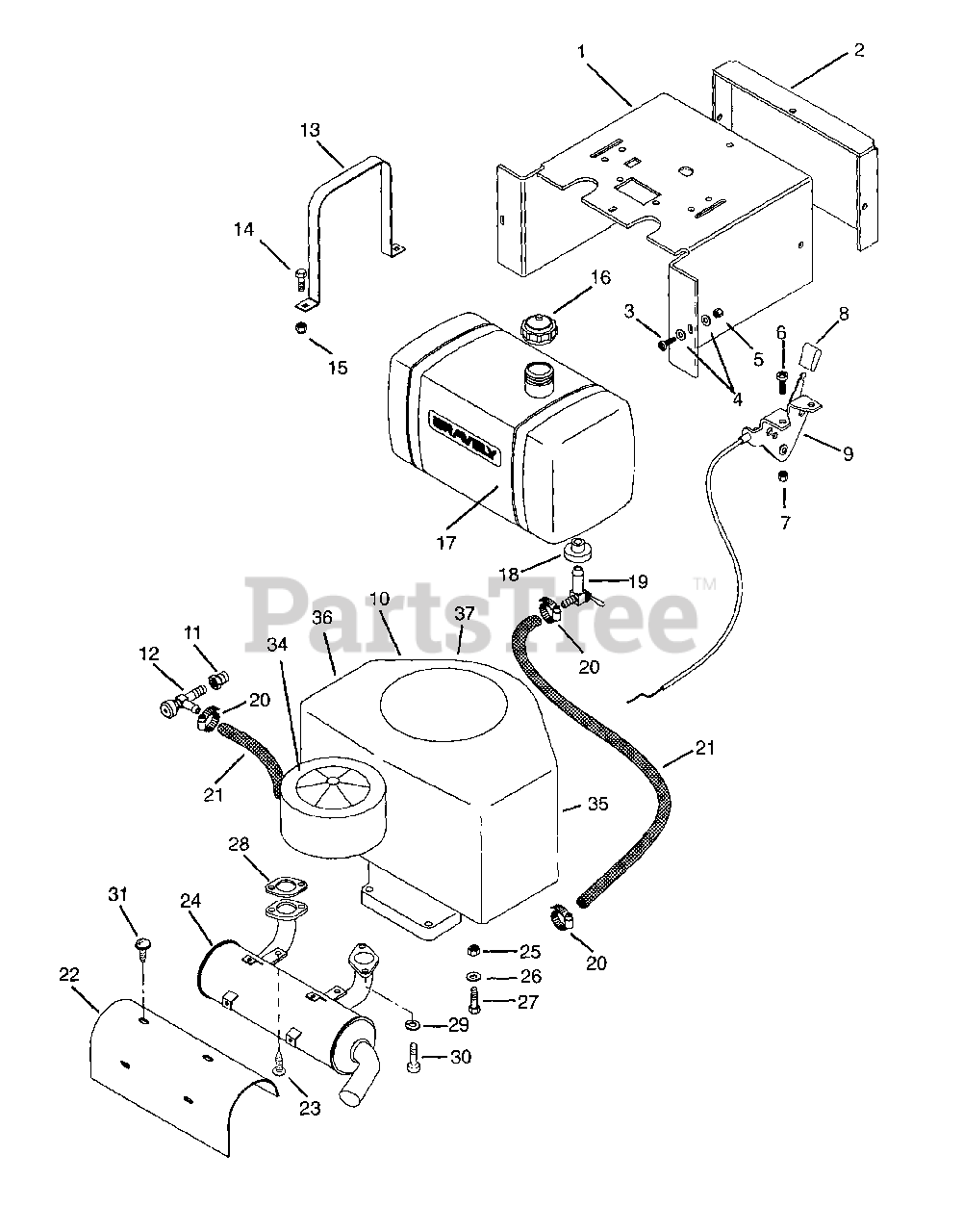

ENGINE AND EXHAUST Parts Diagram

  • Title

1

Gravely 09113300

PANEL, INSTRUMENT

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 09106700

CVR,INSTRUMENT PANEL

$

$

Not available

3

Gravely 06118000

SCR-MCH .25-20X.75 HWH YWZC
(Superseded to 05901824)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 044589

KNOB
(Superseded to 07501900)

$

$

Not available

9

Gravely 053237

ASM,THROTTLE CONTROL
(Superseded to 06923300)

$

$

Not available

10

Gravely 08248100

ENGINE KOHLER CV 18HP PS-61541

$

$

Not available

11

Gravely 035328

ADAPTER, OIL DRAIN
(Superseded to 03493100)

$6.49

$

Usually ships in 4-12 days

0

12

Gravely 035329

DRAIN, 1/2" OIL
(Superseded to 00429000)

$40.99

$

In Stock, only 3 left!

0

13

Gravely 09112100

TANK STRAP FOR 4.5 G FUEL TANK

$

$

Not available

14

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

15

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$23.99

$

Usually ships in 4-12 days

0

17

Gravely 09112200

FUEL TANK

$75.99

$

Usually ships in 4-12 days

0

18

Gravely 050246

BSHG-FLG .375 X 1.062 X .625 R
(Superseded to 07511400)

$3.99

$

In Stock, Qty 20+

0

19

Gravely 049281

VALVE, BALL SHUT OFF

$

$

Not available

20

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

21

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 09205200

HEAT SHIELD, KOHLER CV18-25
(Superseded to 08898000)

$56.99

$

Usually ships in 4-12 days

0

23

Gravely 07413100

SCR-TAP M6-1 X 25MM (BULK)

$

$

Not available

24

Gravely 09204700

MUFFLER, KOHLER CV18-CV25

$342.99

$

Usually ships in 4-12 days

0

25

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

28

Gravely 044390

GASKET,EXHAUST
(Superseded to 08824700)

$23.99

$

In Stock, only 4 left!

0

29

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

32

Gravely 08327000

SG-COMP .125X.78X1.00 YWZ

$16.99

$

In Stock, only 3 left!

0

33

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 21416800

ELEMENT,AIR CLEANER -KOH CV20
(Superseded to 08563700)

$29.99

$

In Stock, Qty 18

0

Gravely 21416700

ELEMENT, PRECLEANER - KOH CV20
(Superseded to 08563900)

$14.99

$

In Stock, only 1 left!

0

35

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

$13.99

$

In Stock, Qty 20+

0

36

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$21.99

$

Usually ships in 4-12 days

0

37

Gravely 21403700

SPARK PLUG - KOH CV20
(Superseded to 21541700)

$7.49

$

In Stock, Qty 20+

0
