991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) FRAME Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

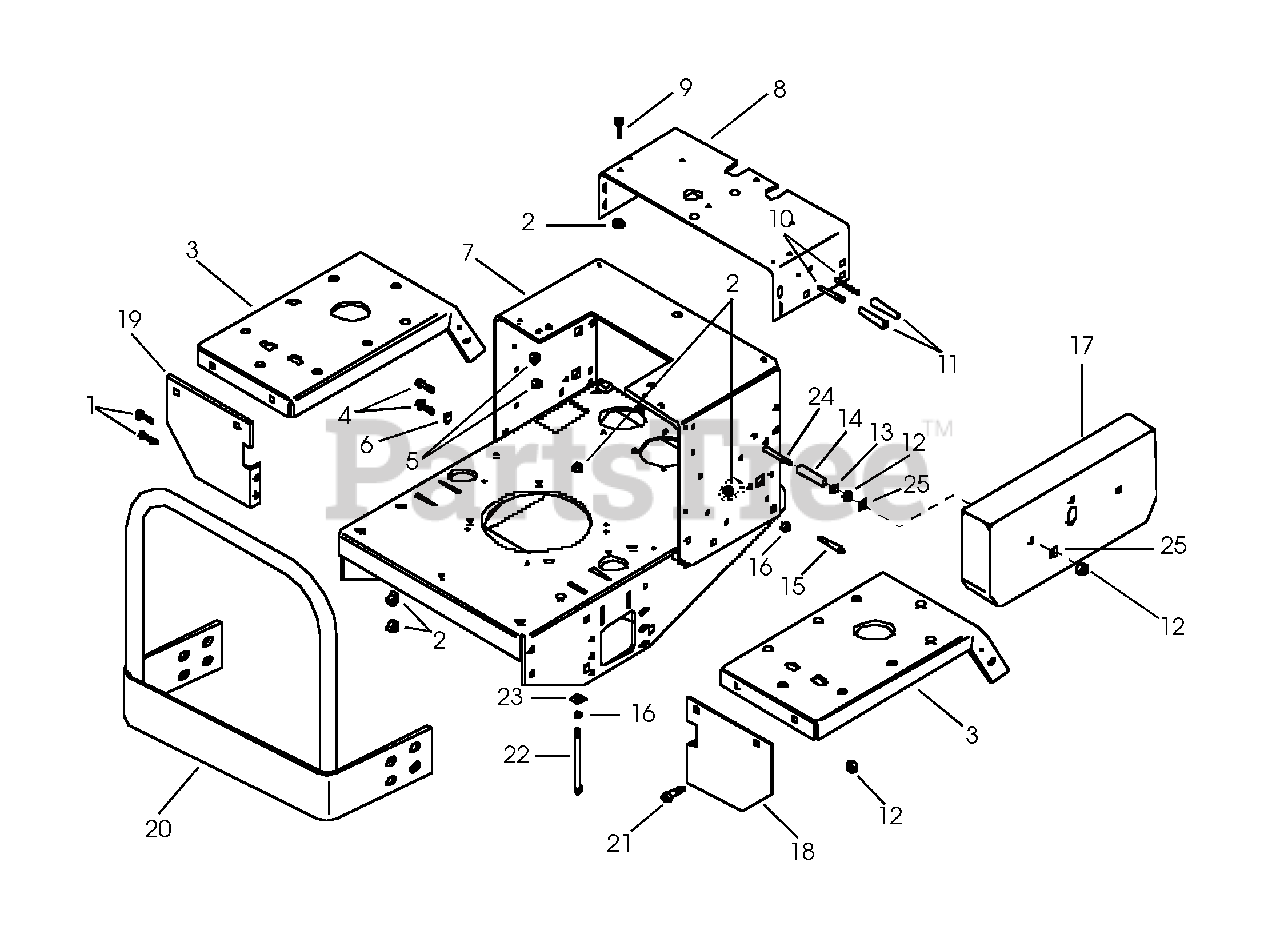

FRAME Parts Diagram

  • Title

1

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 09113000

FENDER

$45.99

$

Usually ships in 4-12 days

0

4

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

5

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 09103000

FRAME, PM 100

$

$

Not available

8

Gravely 09113200

SUPPORT CONTROL WELDMENT

$45.99

$

Usually ships in 4-12 days

0

9

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 05963200

BLT-HEX .31-18X4.00 GR5 YWZC
(Superseded to 05901834)

$3.99

$

In Stock, only 2 left!

0

11

Gravely 09108300

SPACER .328X.462X2.75

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 09108400

SPACER .328X.462X2.50

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

16

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 09108200

GUARD, LINKAGE

$

$

Not available

18

Gravely 09107000

SPRT,FENDER R.H.

$13.99

$

Usually ships in 4-12 days

0

19

Gravely 09107100

SPRT,FENDER L.H.

$

$

Not available

20

Gravely 09113500

WELDMENT, REAR GUARD

$74.99

$

Usually ships in 4-12 days

0

21

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 05965400

BLT-HEX .38-16X4.00 GR5 YWZC

$3.99

$

In Stock, only 1 left!

0

23

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 05965000

BLT-HEX .312-18X3.75 YWZC
(Superseded to 05901936)

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0
