991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) TRACTION DRIVE LINKAGE & ELECTRIC CLUTCH Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

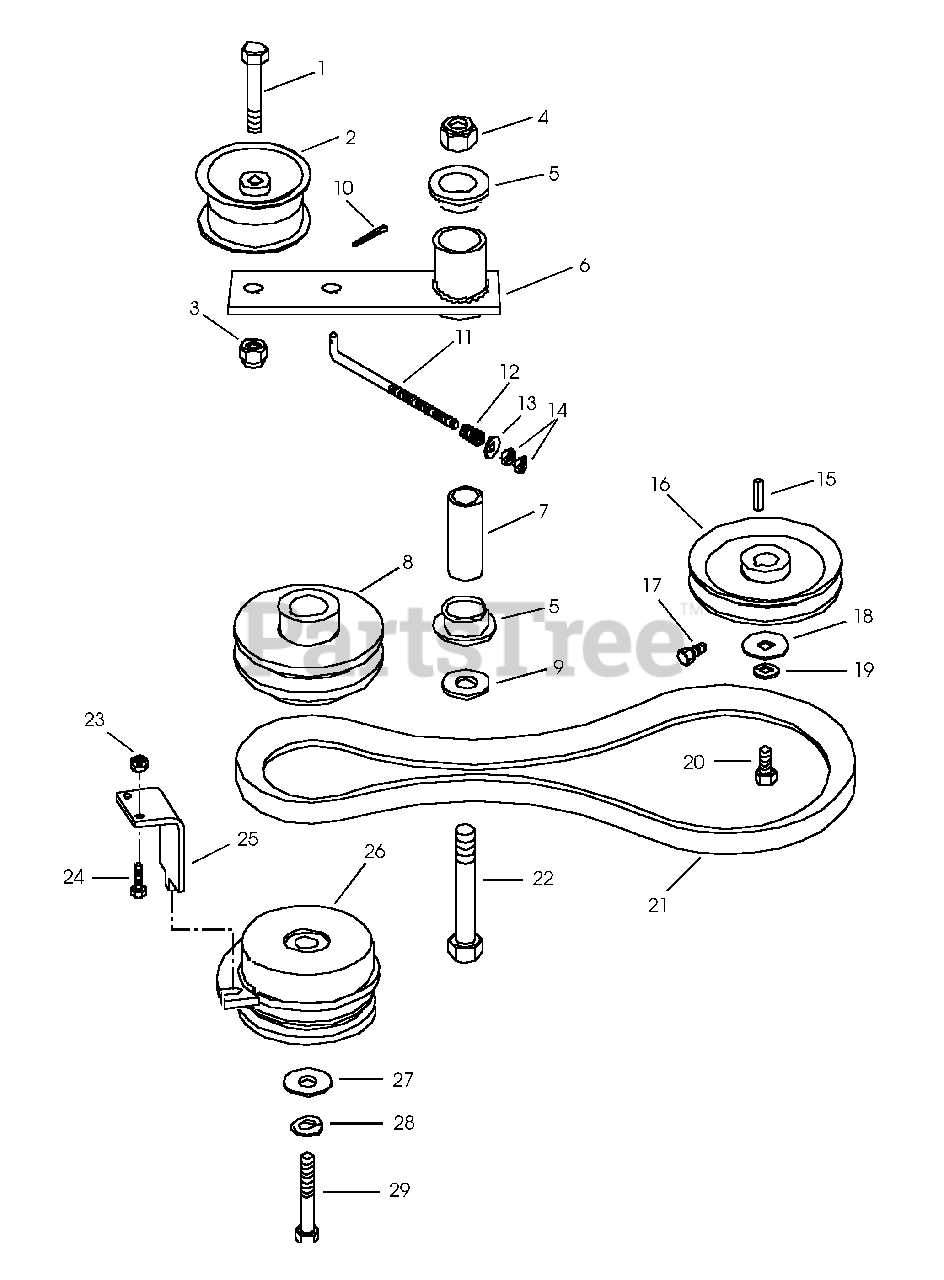

TRACTION DRIVE LINKAGE & ELECTRIC CLUTCH Parts Diagram

  • Title

1

Gravely 05958500

BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 052062

IDLER-PLY FLAT 3.25 X .38 X1.0
(Superseded to 07320700)

$35.99

$

In Stock, Qty 5

0

3

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$4.99

$

In Stock, Qty 19

0

5

Gravely 010174

BSHG-FLG .762X1.0X.580X1.48 NY
(Superseded to 05518400)

$5.49

$

In Stock, Qty 15

0

6

Gravely 051134

WLDMT,GROUND DRIVE IDLER
(Superseded to 08844251)

$59.99

$

Usually ships in 4-12 days

0

7

Gravely 041992

BUSH.,S.560X.745X2.04 ST
(Superseded to 08815100)

$22.99

$

Usually ships in 4-12 days

0

8

Gravely 09113600

SHEAVE

$118.99

$

Usually ships in 4-12 days

0

9

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06706900

PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, only 2 left!

0

11

Gravely 052661

ROD,IDLER
(Superseded to 08879300)

$

$

Not available

12

Gravely 011779

SG-COMP .125X.78X1.00 YWZ
(Superseded to 08327000)

$16.99

$

In Stock, only 3 left!

0

13

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 050995

KEY-STR 5MMX25MMX5MM
(Superseded to 06607500)

$3.99

$

In Stock, Qty 12

0

16

Gravely 051138

SHEAVE, PUMP .592 X 4.345
(Superseded to 07318900)

$52.99

$

In Stock, Qty 10

0

17

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

18

Gravely 06442200

WSHR-FL-STL .281X1.0X.048 YWZC
(Superseded to 06426600)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

20

Gravely 05969800

BLT-HEX M6 X 1.0X12 YWZC

$2.49

$

In Stock, Qty 10

0

21

Gravely 051141

V-BELT, HA-COGGED
(Superseded to 07223100)

$42.99

$

Usually ships in 4-12 days

0

22

Gravely 05959900

BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$5.49

$

In Stock, Qty 14

0

23

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 09113400

CLUTCH STOP

$

$

Not available

26

Gravely 03357900

CLUTCH, ELECTRIC - WARNER

$501.99

$

Usually ships in 4-12 days

0

27

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

28

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.99

$

In Stock, Qty 7

0
