991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) TRACTION DRIVE LINKAGE & ELECTRIC CLUTCH Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

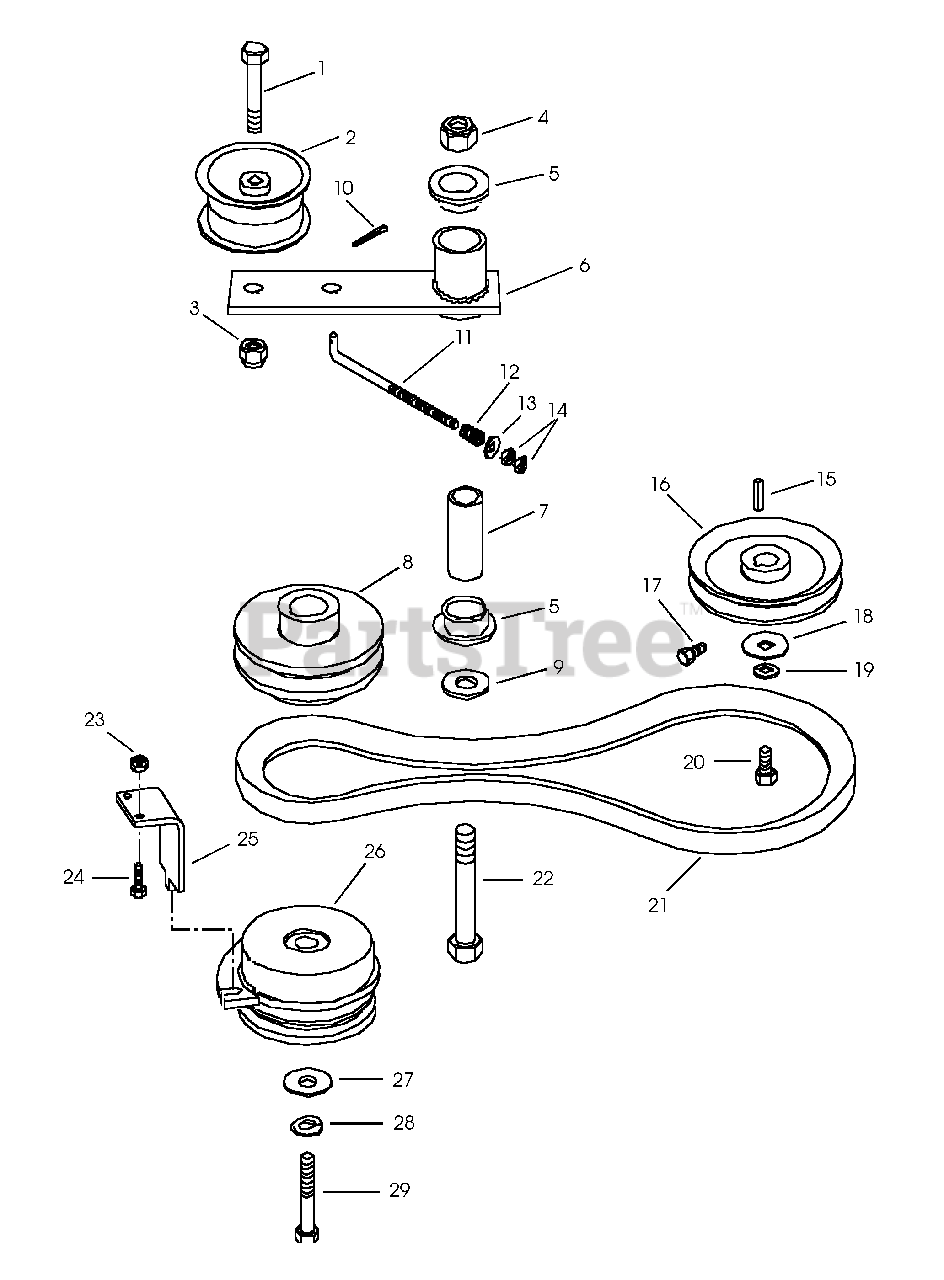

TRACTION DRIVE LINKAGE & ELECTRIC CLUTCH Parts Diagram

  • Title

1

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

2

Gravely 052062

Idler-Pulley Flat 3.25 x .625
(Superseded to 07320700)

$34.99

$

In Stock, only 3 left!

0

3

Gravely 06529600

Nut-Locking-Center .38-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06536300

Nut-Locking-Center .50-13 Grade 5
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

5

Gravely 010174

Bushing-Flange .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 051134

Weldment-Ground Drive Idler
(Superseded to 08844251)

$58.99

$

Usually ships in 4-12 days

0

7

Gravely 041992

Bushing-Steel .560 x .745 x 2.04
(Superseded to 08815100)

$21.99

$

In Stock, only 1 left!

0

8

Gravely 09113600

Sheave

$116.99

$

Usually ships in 4-12 days

0

9

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06706900

Pin-Center .09 x .75

$0.99

$

In Stock, Qty 5

0

11

Gravely 052661

Rod-Idler
(Superseded to 08879300)

$77.99

$

Usually ships in 4-12 days

0

12

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 4 left!

0

13

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06534700

Nut-Jam .375-24
(Superseded to 06500739)

$2.49

$

In Stock, Qty 5

0

15

Gravely 050995

Key-Straight 5MM x 25MM x 5MM
(Superseded to 06607500)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 051138

Sheave 4.0 x .199
(Superseded to 07318900)

$51.99

$

In Stock, Qty 7

0

17

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

18

Gravely 06442200

Washer-Flat-Steel .25 x 1.0 x .048
(Superseded to 06426600)

$0.99

$

In Stock, only 2 left!

0

19

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

20

Gravely 05969800

Bolt-Hex M6 x 1.0 12

$1.99

$

In Stock, Qty 5

0

21

Gravely 051141

V-Belt A-Section 24.50 x .516
(Superseded to 07223100)

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 05959900

Bolt-Hex .50-13 x 3.00 Grade 5
(Superseded to 05901737)

$4.99

$

In Stock, Qty 8

0

23

06579800

Nut-Locking-Center .31-18

$

$

Not available

24

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 10

0

25

Gravely 09113400

Clutch Stop

$

$

Not available

26

Gravely 03357900

Clutch-Electric

$491.99

$

Usually ships in 4-12 days

0

27

Gravely 06443600

Washer-Flat-Steel .469 x 2.00 x .25
(Superseded to 06401111)

$6.99

$

In Stock, Qty 20+

0

28

Gravely 06309300

Washer-Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

29

Gravely 05964600

Bolt-Hex .44-20 x 2.5 0
(Superseded to 05902017)

$2.49

$

In Stock, only 1 left!

0
