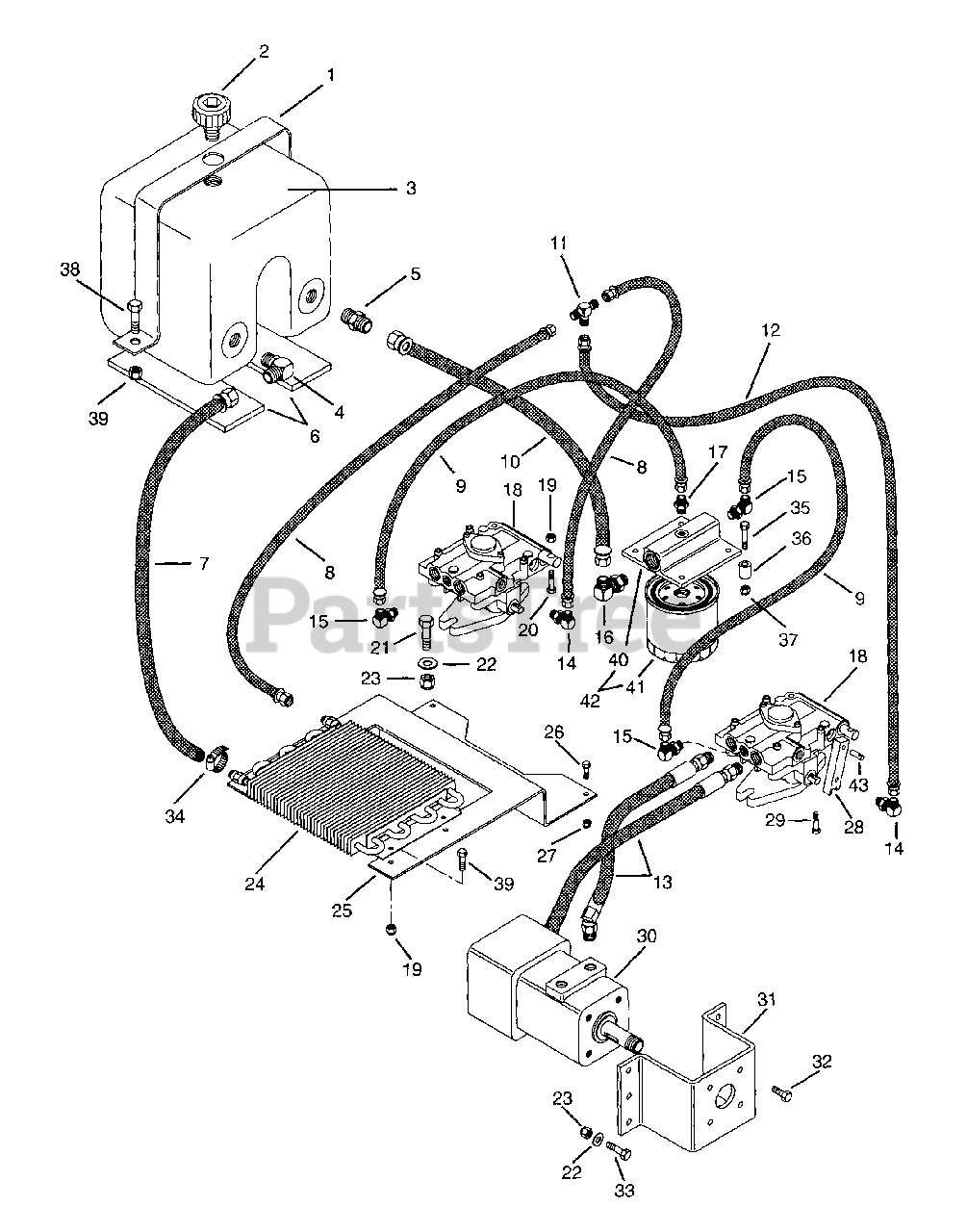

991008 (PM 100Z) - Gravely Pro-Master 50" Zero-Turn Mower, 18hp Kohler (SN: 000101 & Above) TRANSMISSION Parts Diagram

Pro-Master 50" Zero-Turn Mower, 18hp Kohler

TRANSMISSION Parts Diagram

  • Title

1

Gravely 050525

Strap-Tank
(Superseded to 08997100)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 050507

Cap-Filter
(Superseded to 08996400)

$35.99

$

In Stock, only 1 left!

0

3

Gravely 050272

Tank-Hydraulic
(Superseded to 09032900)

$

$

Not available

4

Gravely 046072

Adapter .37 - .875
(Superseded to 07020000)

$

$

Not available

5

Gravely 07025800

Adapter-Hydraulic

$13.99

$

In Stock, only 2 left!

0

6

Gravely 031884

Pad-Gas Tank
(Superseded to 03301900)

$

$

Not available

7

Gravely 09106100

Hose-Hydraulic Cooler to Tank

$40.99

$

Usually ships in 4-12 days

0

8

Gravely 039847

Hose-Hydraulic Valve to Tank
(Superseded to 08811300)

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 051281

Hose-Oil Filter to Pump
(Superseded to 08845200)

$

$

Not available

10

Gravely 09106000

Hose-Hydraulic Tank to Filter

$

$

Not available

11

Gravely 021799

Adapter-Tee .56-18
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 053103

Hose-Pump to Tee
(Superseded to 08856400)

$45.99

$

Usually ships in 4-12 days

0

13

Gravely 051231

Assembly-Hose Wheel Motor to Pump
(Superseded to 58803800)

$149.99

$

Usually ships in 4-12 days

0

13

Gravely 051232

Assembly-Hose Wheel Motor to Pump
(Superseded to 58803900)

$168.99

$

Usually ships in 4-12 days

0

14

Gravely 018828

Adapter 2503-6-6
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

15

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 050961

Adapter-Pipe .75-16
(Superseded to 07018200)

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 021286

Adapter 0503-4-4
(Superseded to 08801500)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 053330

Variable Displace Pump
(Superseded to 09279900)

$1238.99

$

Usually ships in 4-12 days

0

18

Gravely 58803300

Kit-Pump Seal

$9.99

$

Usually ships in 4-12 days

0

19

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05967100

Bolt-Hex .25-20 x 1.63
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 05958000

Bolt-Hex .38-16 x 1.125 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

22

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 053101

Cooler-Oil
(Superseded to 08856200)

$

$

Not available

25

Gravely 09112800

Bracket-Oil Cooler

$25.99

$

Usually ships in 4-12 days

0

26

Gravely 05958000

Bolt-Hex .38-16 x 1.125 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 8

0

27

Gravely 06529600

Nut-Locking-Center .38-16 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 051116

Arm-Pump Actuating
(Superseded to 08880700)

$

$

Not available

29

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

30

Gravely 051130

Motor-Hydraulic Wheel
(Superseded to 08864000)

$

$

Not available

31

Gravely 051106

Bracket-Wheel Motor
(Superseded to 08842400)

$14.99

$

Usually ships in 4-12 days

0

32

Gravely 05959400

Bolt-Hex .380-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

33

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 021247

Clamp .88 Diameter Hose
(Superseded to 06923500)

$1.99

$

Usually ships in 4-12 days

0

35

Gravely 05957400

Bolt-Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

36

Gravely 08880800

Bushing-Split-Steel .328 x .462 x 1.00

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 06529800

Nut-Locking-Center .31-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

39

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

40

Gravely 051143

Assembly-Head
(Superseded to 08157900)

$

$

Not available

41

Gravely 050968

Element
(Superseded to 08841800)

$39.99

$

Usually ships in 4-12 days

0

42

Gravely 051142

Assembly-Spin-On Lube
(Superseded to 08844700)

$

$

Not available

43

Gravely 051889

Pin-Dowel .312 x 1.25
(Superseded to 05808000)

$5.99

$

Usually ships in 4-12 days

0
